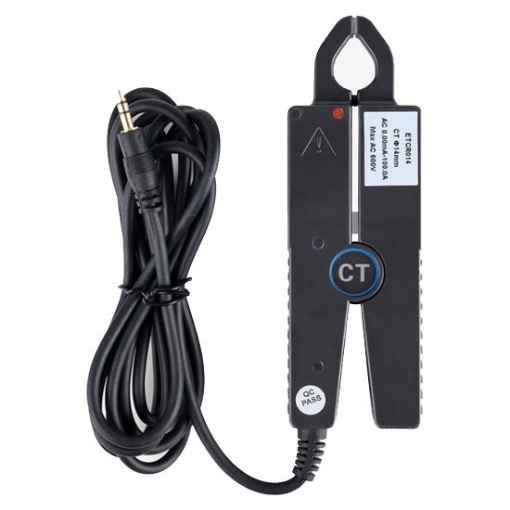

Clamp on Current Transformer, 100A AC

High precision clamp-on current transformer designed for power field testing, range 0.00mA~100A AC, using the new CT technology, without disconnecting the line under test, non-contact measurement, which can be safely and quickly connected to phase detection analyzers, industrial control devices, data loggers, oscilloscopes, etc..

SKU: SISCO-CCT-100A

Output Interface *

$154.68

Qty:

i h

Free shipping

Delivery date: 7-12 days

Overview
Specs
FAQs
Warranty
Reviews

Overview

Clip on current transformer resolution 0.01mA AC, accuracy class 0.5, ratio 2500:1, core using Permalloy manufacturing, the influence of external magnetic field is extremely small, ensuring high accuracy, high stability, and high reliability of uninterrupted measurement year-round. Clamp type current transformer can output current and voltage signals, the range of the transformer, output signal, output interface, etc. can be customized according to customer requirements.

Clamp-on current transformer makes field testing easy

Non-contact measurement, easy, fast, and safe operation.
Thin jaws, suitable for small spaces.
The sisco clamp current transformer uses a permalloy core for stable performance and high accuracy, and is highly resistant to interference, making it suitable for complex interference environments.
The range, ratio, and output interface of the sensor can be customized according to customer requirements.
Output connector: φ3.5mm audio plug/BNC plug/4.0mm double banana plug (optional), cable length 2m.

Application

High-precision clip-on current transformers is an indispensable accessories for small, medium, and large electronic companies. The sisco clamp-on current transformer is suitable for use in power equipment testing, communications and telecommunications, railway and oilfield monitoring, building and construction companies, research and teaching units, industrial and mining records, and other fields.

Clamp-on current transformer applications

Specs

Model	SISCO-ETCR014
Measurement Range	AC 0.00mA to 100A
Resolution	AC 0.01mA
Accuracy Class	1.0%FS (50Hz/60Hz; 23°C±2°C)
Turn Ratio	2500:1
Phase Error	≤2°(50Hz/60Hz; 23°C±2°C)
Reference Load	RL：0～300mA≤300Ω；0～10A≤10Ω；0～100A≤1Ω
Dimension	142mm (L)×46.7mm (W)×22.6mm (H)
Jaw Size	φ14mm
Detection Method	Clamp CT
Output Method	Current Sensing Output
Output Interface	φ3.5mm audio plug / BNC plug / 4.0mm double banana plug (optional)
Output Wire	2 Core shielded wire, wire length 2m
Current Frequency	45Hz～60Hz (measured current frequency)
Frequency Characteristics	10Hz to 100kHz
Wire Position	The wire under test is in the centre of the jaws
Line Voltage	Line testing up to AC 600V
Operating Temperature and Humidity	-20°C to 50°C, below 80% rh
Storage Temperature and Humidity	-10℃～60℃；less than 70%rh
Dielectric Strength	AC3700V/rms (between core and case)
Mass	194g

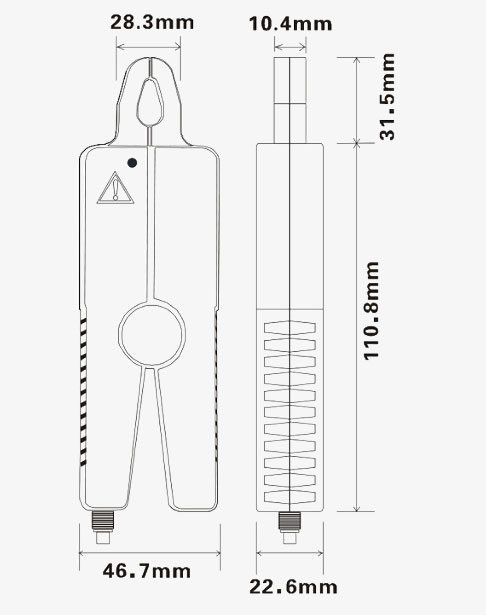

Dimension Unit (mm)

Structure

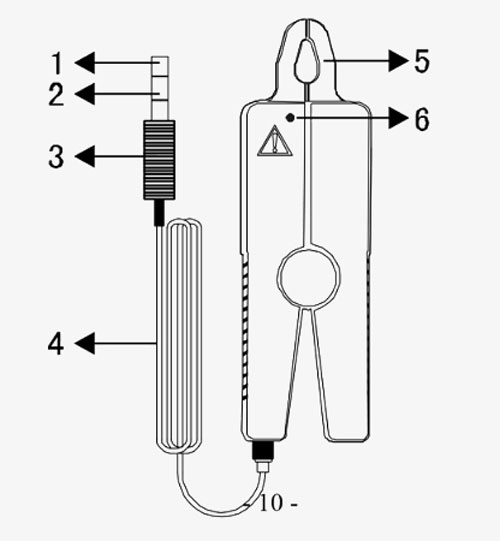

Clamp-on current transformer structure

Coil taps
Coil taps
Sensor output plug (φ3.5mm audio plug)
Output lead
Clamp head
Directional mark identification (Identifies the same name end for phase detection)

Output interface (optional)

Clamp current transformer output interface
