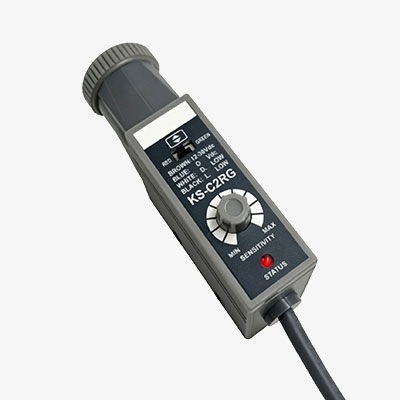

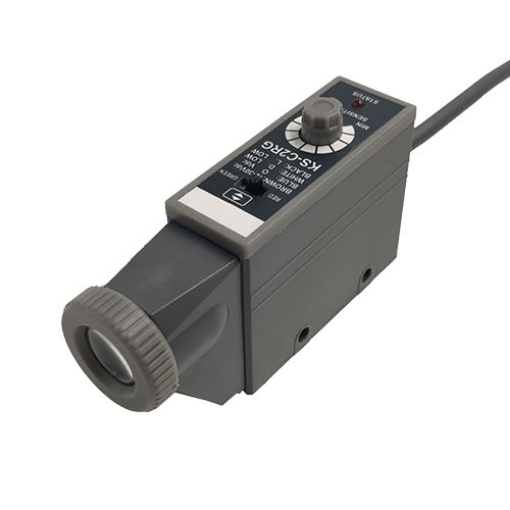

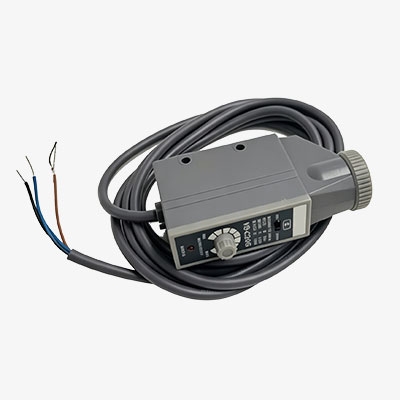

SISCO high-speed color detection sensor provides selectable white, red, green, blue, or dual-color light sources. It features strong ambient light immunity, stable temperature performance, an engineering plastic housing, and a standard four-core cable in a compact body.
High-Speed Color Detection
- Coaxial reflection design ensures accurate detection of colors and color marks. The emitted and received light share the same axis, minimizing errors caused by object tilt or surface variation.
- High switching speed of up to 2kHz and fast response time enable reliable detection in high-speed processes. It captures rapid color changes without missing signals.
- The detection angle allows ±15° deviation from perpendicular, making installation and alignment easier. Stable detection can be maintained even on uneven surfaces.
- Strong immunity to ambient light, including incandescent lamps and sunlight, prevents false triggering. This ensures consistent performance under various lighting conditions.
Flexible Output & Industrial Protection
- Both NPN and PNP output types are available, along with light-on and dark-on modes. Sensitivity is single-turn adjustable, allowing quick adaptation to different detection requirements.
- Wide supply voltage range and low power consumption make it compatible with various control systems. It can drive loads up to 200mA without additional amplification.
- IP67 protection against dust and moisture, plus vibration resistance, ensures reliable operation in harsh industrial environments. The operating temperature range supports use in diverse conditions.
- Multiple protection circuits include reverse polarity, output short-circuit, and wiring-error protection. If load current exceeds 200mA, the sensor automatically trips and recovers once the fault is removed, enhancing safety and durability.
Applications
SISCO high-speed color detection sensor is widely used in packaging, printing, labeling, and automated production lines for color mark detection, color sorting, and PLC-based color recognition.
Automated Production Line
Labeling

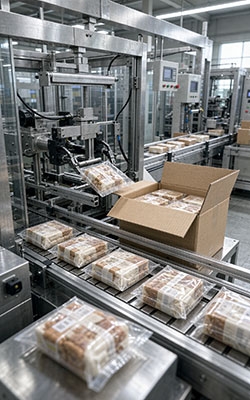

Packaging
Printing
| Model | SISCO-CS-W22 |
| Detection Method | Coaxial Reflection |
| Output | NPN/PNP |
| Wavelength | 620nm |
| Detection Distance | 10mm±2mm |
| Light Spot | φ0.5-1.5 |
| Switching Speed | 2kHz |
| Detection Angle | Allowing ±15° |
| Sensitivity | Single-turn Adjustable |
| Output Mode | Light-on/Dark-on Selectable |
| Indicator Light | Red LED |
| Protection Class | IP67 |
| Anti-light Environment | Incandescent Lamp<3000LX Sunlight 10000LX |
| Vibration Resistance | 10-5Hz Repeat Amplitude 1.5mm |
| Housing Material | Engineering Plastics |
| Lead Wire | φ5.4PVCT Four-core Sheathed Cable, Standard Length 2 m |
| Supply Voltage | DC10-30V±10%, ripple<10% |
| Output Voltage | High Level Vs(≤1.5), Low Level (≤1.2V) |
| Weight | 120g |
| Packing Weight | 8.6kg (for 50 units) |
| Load Current | 200mA(max) |
| Consumption Current | <45mA |
| Environment Temperature | Operating: -15℃~65℃ Storage: -25℃~80℃ |
| Light Color | Single-color: White, Blue, Green, Red Selectable Dual-color: Red/Blue, Red/Green, Blue/Green, White/Green, White/Blue, White/Red |

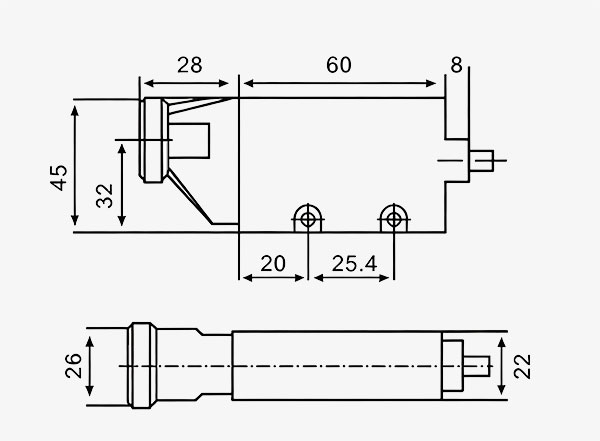

Dimensions (unit: mm)

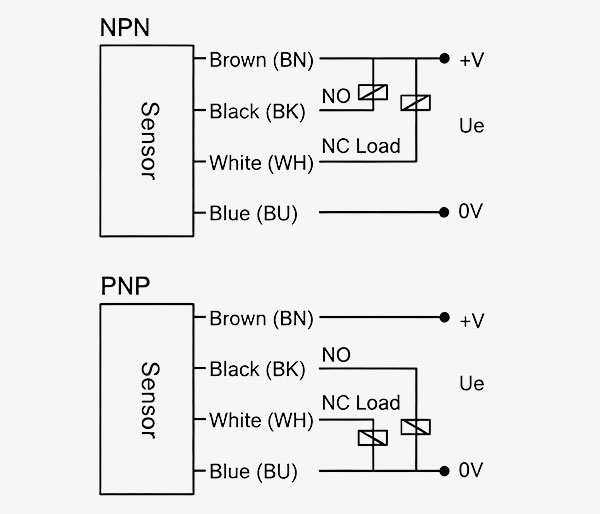

Wiring Diagram

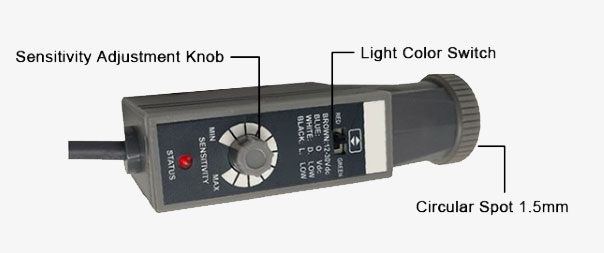

Details
Q1: What detection method and light source options does the high-speed color detection sensor offer?
A1: The high-speed color detection sensor uses coaxial reflection for accurate color and mark detection. It provides a detection distance of 10–12mm±2mm, a φ0.5–1.5 light spot, and 620nm wavelength. Available light sources include white, red, green, blue, and dual-color combinations such as red/blue, red/green, blue/green, white/green, white/blue, and white/red. The light beam is perpendicular to the target surface with an allowable deviation of ±15°.
Q2: How fast and flexible is the high-speed color detection sensor in output and adjustment?
A2: The high-speed color detection sensor offers 2kHz switching speed and 0.1–1ms response time for high-speed detection. It supports selectable NPN/PNP output, light-on/dark-on modes, and single-turn adjustable sensitivity. It operates on DC10–30V±10% with <45mA consumption current and 200mA max load current. Output voltage is high level ≤1.5V and low level ≤1.2V.
Q3: How does the high-speed color detection sensor ensure reliable operation in industrial environments?
A3: The high-speed color detection sensor features IP67 dustproof and moisture-proof protection, 10–5Hz vibration resistance with 1.5mm repeat amplitude, and an operating temperature range of -15°C to 65°C. It also withstands incandescent lamp <3000LX and sunlight 10000LX for stable ambient light immunity. Built-in protections include reverse polarity, output short-circuit, and wiring-error protection. If the load current exceeds 200mA, it automatically trips and recovers when the fault is removed.
Tips: What should I pay attention to when installing and using the high-speed color detection sensor?
- Keep the target within the rated detection distance and make sure the light spot fully covers the color mark. The high-speed color detection sensor performs best when the object is placed at the correct distance.
- Mount the sensor so the light beam is perpendicular to the target surface. The high-speed color detection sensor allows a small angle deviation, but a smaller angle gives more stable detection.
- Select the correct output mode. The high-speed color detection sensor supports NPN/PNP and light-on/dark-on modes, so match it to your PLC or controller input.
- Adjust sensitivity carefully. Use the single-turn adjustment on the high-speed color detection sensor, starting from low sensitivity and increasing gradually until detection is reliable without false signals.
- Keep the lens clean and the cable secure. Dust, oil, or a loose cable can affect the long-term stability of the high-speed color detection sensor, even with IP67 protection.
