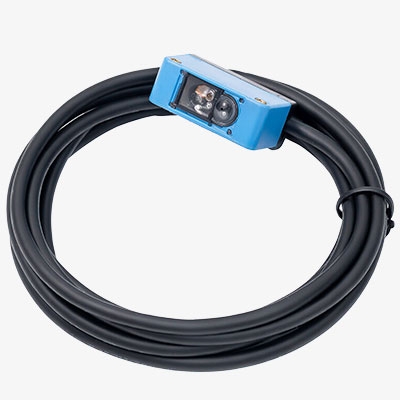

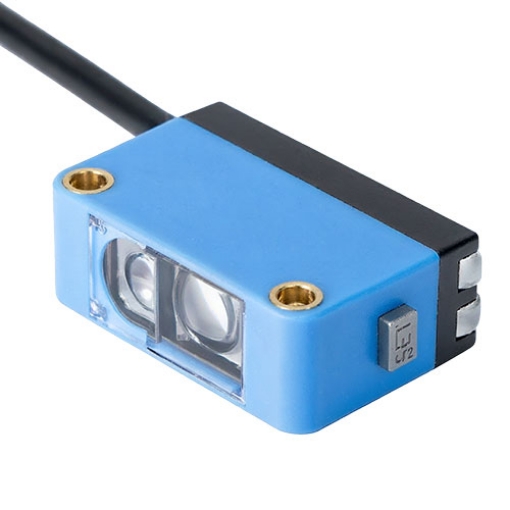

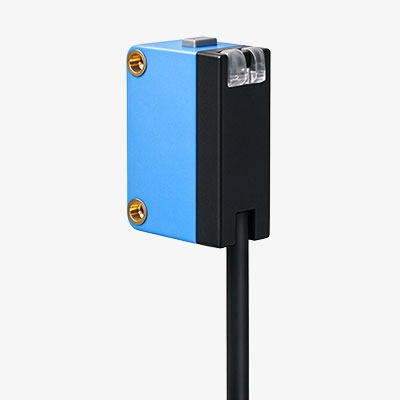

Color Identification Sensor with Anti-Jitter

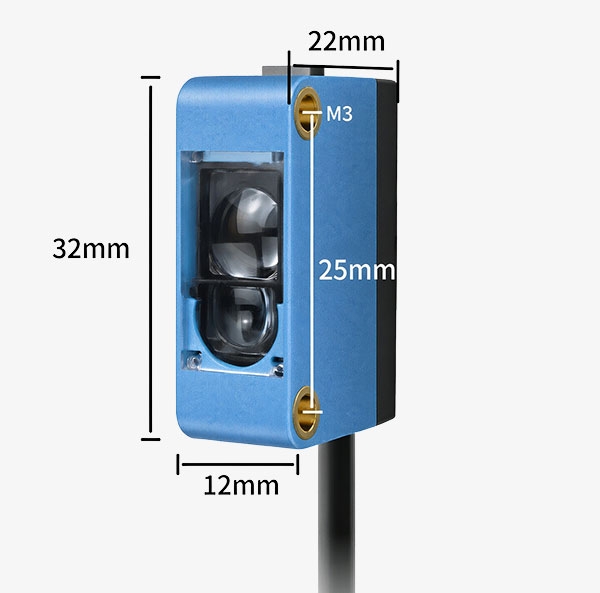

Dimensions (unit: mm)

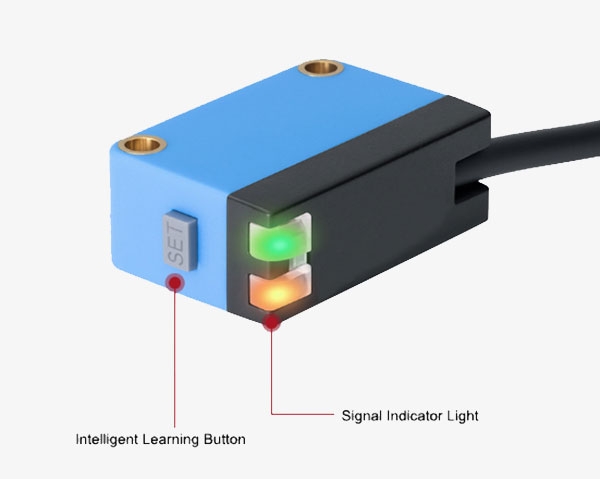

Details

Color Identification Sensor with Anti-Jitter User Manual.pdf

Q1: What detection distance and spot size does the color identification sensor with anti-jitter support?
A1: The color identification sensor with anti-jitter supports an 8–20mm detection distance and a standard spot size of approximately 3mm. It operates at 10–30VDC with NPN/PNP output, 0.5ms response time, and 100Hz switching frequency. This makes it suitable for precise color mark detection in automated equipment.

Q2: How does the color identification sensor with anti-jitter maintain stable performance when the target vibrates?
A2: Thanks to its anti-jitter design, the color identification sensor with anti-jitter can ignore slight target vibration and continue accurate detection. It achieves up to 1000 sensing times per second and includes five-fold protection: short-circuit, overload, reverse polarity, surge, and power-on protection. With an IP65 rating and a 0–55°C operating temperature, it remains reliable in harsh industrial environments.

Q3: Can the color identification sensor with anti-jitter distinguish similar colors, and how is it set up?
A3: Yes, the color identification sensor with anti-jitter automatically selects the optimal RGB light source based on mark-to-background contrast, allowing it to distinguish similar colors with small differences. It features a one-key setting for quick calibration, repeat accuracy of <5% (Sr), and stable performance for precise color recognition. The sensor also supports NPN/PNP output for easy integration with PLC systems.

Tips: How to ensure reliable color mark detection with the color identification sensor in high-speed production lines?

• Secure mounting is recommended to minimize external vibration, although the color identification sensor tolerates slight target movement.
• The one-key setting function should be used to calibrate the color identification sensor against both mark and background for optimal contrast.
• Lens cleanliness must be maintained, and direct sunlight or strong ambient light should be avoided to prevent interference with the color identification sensor.
• A stable 10–30VDC power supply and correct wiring are necessary to benefit from the five-fold protection of the color identification sensor.
• For similar color detection, the RGB three-color version of the color identification sensor is preferred; for slight target vibration, the single-color anti-jitter version performs better.
