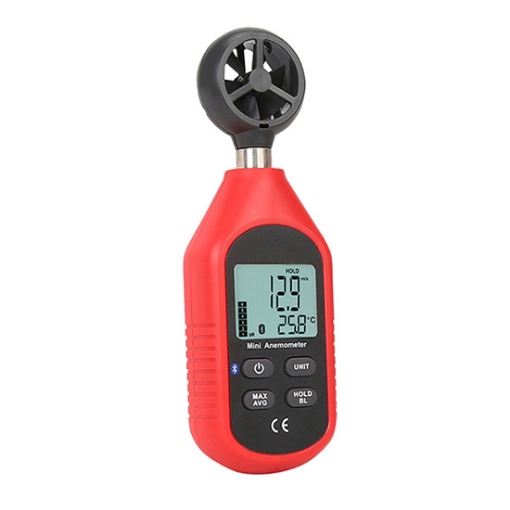

Digital Anemometer, Vane Type, 0~30 m/s

Mini digital vane anemometer for sale online. The wind speed meter can measure wind speeds up to 30m/s, wind scale from level 1 to 12, air temperature range of -10~50 ℃. The digital vane anemometer can be widely used to measure the wind speed of fans, air conditioners, extractor fans, etc. at home/ office/ car.
SKU: SISCO-DA-030
$180.22
i h
Free shipping
Delivery date: 7-12 days
Overview


Buy a SISCO vane anemometer online which has wind power level dynamic indicator bar (0~12 levels) display, saving the complex conversion of the brain. Measurement data function symbol display, readings at a glance, high definition, can be backlit display data.

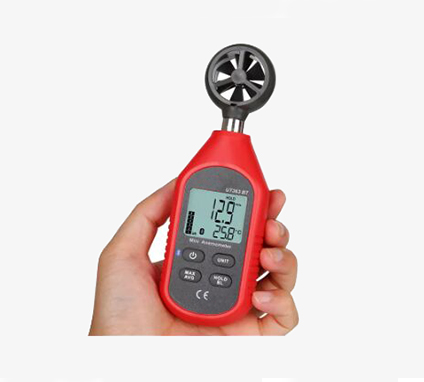

Detail of 0-30 m/s digital vane anemometer

12 wind speed bar wind power rating

  • Wind power level dynamic indicator bar
  • Save the trouble of complicated conversion

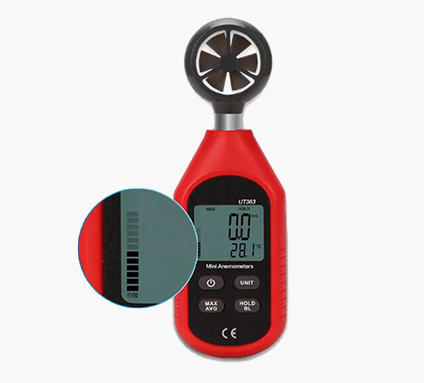

Detail of 0-30 m/s digital vane anemometer

Ambient temperature below 0°C, wind speed> 5m/s

  • 12-level wind speed indicator
  • Wind speed and temperature display
  • m/s km/hft/min /knots /mph unit switch
  • Maximum/average display mode
  • Automatic shut-down



Application

The digital anemometer can be widely used outdoors (such as riding), and for measuring wind speed and air volume. So the vane anemometer is widely applied to windsurfing, outdoor measurement, navigation survey, offshore fishing survey and electric power measurements, shooting, model plane flying, etc outdoor activities. It is also appropriate for industrial and family use, normally in conjunction with dust and fume extraction devices, heating and air conditioning systems, etc, measuring wind speed and air volume.

Application of digital anemometer

Specs
Model SISCO-UT-363
Measuring Specification
Wind speed 0~30m/s
Wind speed accuracy ±(5%rdg+0.5)
Wind speed resolution 0.1m/s
Temperature -10~50℃ (14~122℉)
Temperature accuracy ±2℃/±4℉
Temperature resolution 0.1℃/0.2℉
Wind scale Level 0~12
Wind scale accuracy ±1
Sampling rate 0.5s
Functions
Overload indication (>45m/s) OL
MAX/AVG
Data hold
LCD backlight
Auto power off 5min
Low battery indication 3V~3.5V
General Specifications
Power 1.5V battery (R03) x 3
Display 32mm * 26mm
Color Red and grey
Product size 160mm * 50mm * 28mm
Standard accessories Batteries
Weight 128g
FAQs

Q1: What is digital anemometer?
A1:
Digital Anemometer allows for measuring atmospheric effects, namely wind velocity, temperature, and humidity for better data analysis. It also possesses various features such as the Beaufort scale, switches between Celsius and Fahrenheit, switches between metric and imperial systems, or the battery status indicator.

Q2: How does a digital anemometer measure wind speed?
A2: On the instrument, press the unit button to view the range of measurement options and select the relevant one. Once it's showing the correct unit of measurement, it's ready to calculate the speed.

Q3: How does a digital anemometer work?
A3: The arms are attached to a vertical rod. As the wind blows, the cups rotate, making the rod spin. The stronger the wind blows, the faster the rod spins. The anemometer counts the number of rotations, or turns, which is used to calculate wind speed.

Tips: How does a digital anemometer measure wind speed?

The arms are attached to a vertical rod. As the wind blows, the cups rotate, making the rod spin. The stronger the wind blows, the faster the rod spins. The anemometer counts the number of rotations, or turns, which is used to calculate wind speed.
