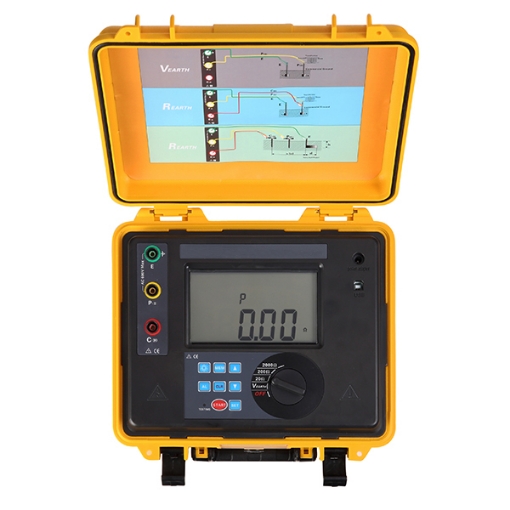

Digital Earth Resistance Tester, 0.010Ω~2000Ω

The digital earth resistance tester with a 0.010Ω~2000Ω range uses 3-wire or 2-wire method to measure ground resistance. The shell of the ground resistance tester is protected by a waterproof case, especially suitable for use in outdoor construction sites. Store 400 sets of data at the same time, alarm value setting and alarm indication and historical data reading, consulting, saving, reporting, and printing functions are available.
SKU: SISCO-ERT-2000
$605.07
i h
Free shipping
Delivery date: 7-12 days
Overview


The digital earth resistance tester is widely used in measuring the ground resistance of electric power, telecommunications, meteorology, construction, lightning protection and industrial electrical equipment, etc. The resistance tester has a range of 0.010-2000 ohm, and has a unique line resistance calibration function, anti-interference ability and environmental adaptability, ensuring high precision, high stability and reliability of measurement. ground resistance tester with waterproof protection box, alarm value setting and alarm indication, historical data reading, consulting, saving, reporting, printing and other functions are also provided.

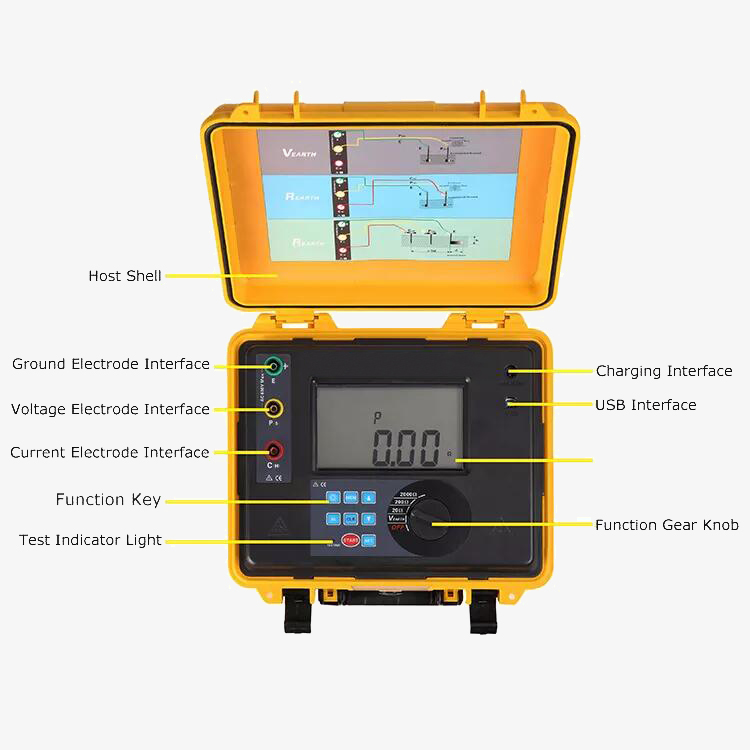

Digital earth resistance meter details

Digital earth resistance tester is available with a 0.010Ω~2000Ω measure range and a waterproof case.

  • Digital earth resistance tester has a precision 3-wire and simple 2-wire method to measure earth resistance, earth voltage and low resistance.

  • sisco ground resistance tester with the unique function of wire resistance verification, anti-interference capability and environmental adaptability, more accurate for on-site low grounding resistance measurement.

  • Package with waterproof protection box, waterproof, crash-proof, anti-drop and durable, and large-capacity rechargeable lithium battery pack, especially suitable for use at outdoor construction sites.

  • The earth resistance meter is equipped with a large LCD display of host machine with a white backlight and bar graph indication that can be seen clearly. Alarm function, overload protection function, auto shutdown and data storage function.


Applications

sisco earth resistance tester is available with a measuring range of 0.00Ω-300kΩ. The soil resistivity test with a waterproof box is anti-collision, anti-fall, and waterproof (protection grade IP65), especially suitable for use in outdoor construction sites, widely used to measure the grounding resistance of electric power, telecommunications, meteorology, construction, lightning protection and industrial electrical equipment, etc.

Digital earth resistance tester applications

Specs
Model SISCO-ERT-3000C
Earth Resistance Accuracy: ±2%rdgt3dgt Range: 0.01Q-2000Q Resolution: 0.01Q
Earth Voltage Range: 0~600V AC Resolution: 1V Accuracy: ±2%rdg±3dgt
Power Supply DC 7.4V 2600mAh rechargeable lithium battery, battery charge full about 8.4V
Tester Dimension 280mm(L)×260mm(W)×160mm(H)
Weight 4520g (with package)
Measurement Method Earth resistance rated current change-pole method, measure current 20mA Max; Voltage to earth average value recitation
Test Frequency 128Hz/ 111Hz /105Hz /94Hz (AFC)
Short Circuit Test Current AC 20mA max
Measurement Time Voltage to earth: 3 times/second; Earth resistance: 15 seconds/time
Data Storage 400 groups, flash "FULL" symbol indicates storage is full
Data Hold Data hold function: "HOLD" symbol display
Data Access Data access function: "READ" symbol display
Overflow Display Exceed measurement range overflow function: “OL” symbol display
Auxiliary Ground Rod 2 PCS: Φ10mm×250mm
lest VWres Red 15m, yellow 10m, green 5m, red 1.6m, black 1.6m (total 5 pcs wires)
USB Interface With a USB interface, and software monitoring, stored data can be uploaded to a computer, saved and printed; data transmission cable length:1.5m
Wire Resistance Verification Avoid errors caused by the test line not being fully inserted into the instrument interface or poor contact or the user replacing the lengthened test line, ensure grounding resistance measurement is more accurate
Alarm Function Measure value exceeds alarm setting value, will “Toot-toot-toot” alarm hint
Auto Shutdown 10 minutes after power is on, it will automatically shut down without any operation
Battery Voltage While the battery voltage decreases to around 7.2V±0.1V, it will display the low battery voltage symbol, and remind to replace the battery
Overload Protection Earth resistance: between each interface of E-P, E-C, AC 280V/3 seconds
Protection Level IP65(close the case status)
Working Current Backlight: 25mA Max; Standby: 25mA Max (Backlight close); Measurement: 70mAMax (Backlight close)
Accessories Tester: 1PCS; Ground rod: 2PCS; Testing wire: 3PCS; Simple test wire: 2PCS; USB Communication cable: 1PCS; Tester bag: 1PC; Special charger: 1PCS

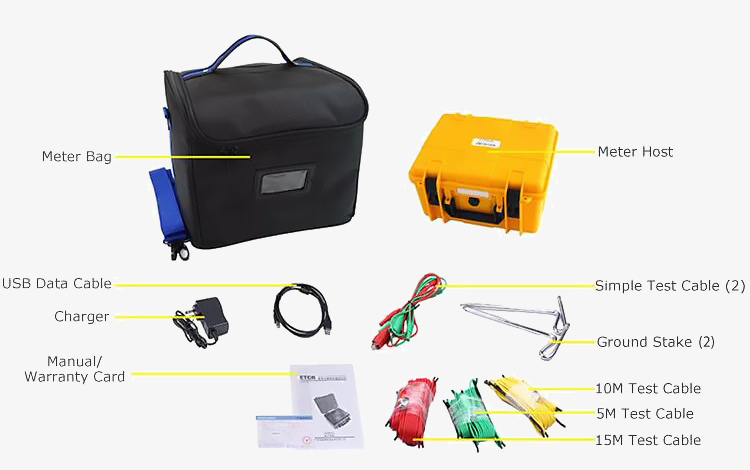

Package List

Digital earth resistance tester package list

FAQs

Q1: What is ground resistance?
A1:
Ground resistance is the resistance encountered when the current flows from the grounding device to the ground and then flows to another grounding body or spreads to a distant place through the ground. It includes the resistance of the grounding wire and the grounding body itself, the contact resistance between the grounding body and the resistance of the earth, and the resistance of the earth between the two grounding bodies or the earth resistance from the grounding body to infinity. sisco digital earth resistance tester is specially designed for measuring ground resistance, which can prevent ground faults.

Q2: What is an earth resistance tester?
A2: The earth resistance tester is a resistance measuring device, which is used to measure the grounding resistance and the resistance value of low-resistance conductors of various equipment in departments such as electric power, post and telecommunications, railways, communications, and mines. The resistance tester also measures soil resistivity and ground voltage.

Q3: What is the earth resistance tester used for?
A3: The ground resistance tester can accurately measure the grounding impedance, grounding resistance and grounding reactance of large grounding grids.

  • It accurately measures the surface potential gradient in the large-scale grounding grid area.
  • Earth resistance tester can measure the contact potential difference, contact voltage, step potential difference and step voltage of large grounding grids.
  • Measure the transfer potential of large-scale grounding grids and soil resistivity accurately.
  • Digital earth resistance tester is used to measure the on-resistance of the grounding down-conductor.

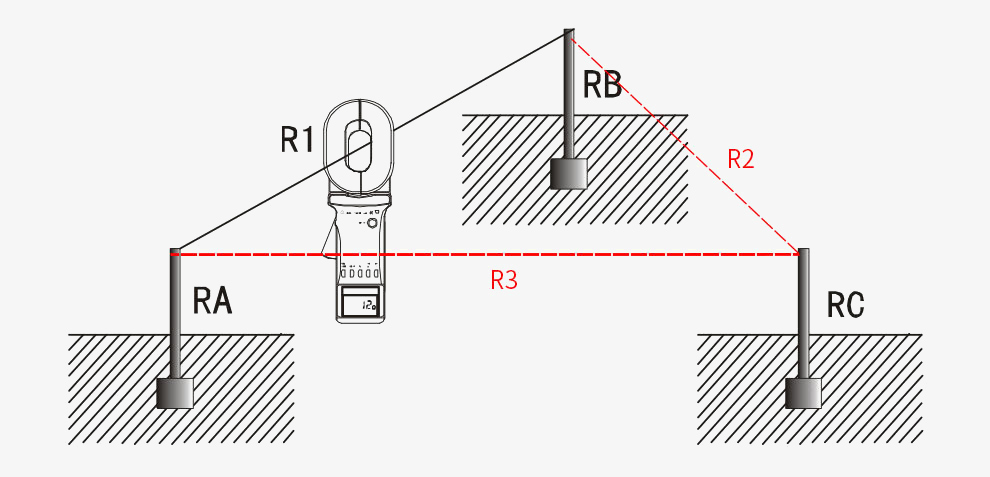

Tips: What is the three-wire method of a ground resistance tester?

Find two independent grounding bodies RB and RC near the grounding body RA to be tested, and measure RA and RB respectively. The values of RA and RC, RB and RC are calculated to obtain the value of RA. This is the three-wire method of the ground resistance tester.

Three wire method of earth resistance -tester
