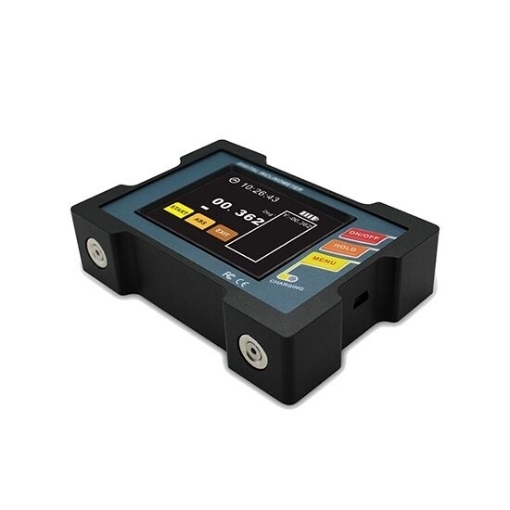

Digital Inclinometer, Dual Axis, Output RS485/RS232

Popular digital inclinometer is an electricnoc inclinometer. It comes with output signal RS485/ RS232, dual axis, measuring range ±15°/ ±30°, absolute accuracy 0.05°/ RMS, IP54 waterproof grade, -10℃~70℃ working temperature. High accuracy slope inclinometer is widely used in building construction, automobile four-wheel testing, industrial platforms and machinery installation.
SKU: SISCO-DMI-825
*
*
$912.70
i h
Free shipping
Overview


Digital inclinometer is designed for measuring angles and slopes between a surface and the horizon. output signal RS485/ RS232, dual axis, measuring range ±15°/ ±30°, absolute accuracy 0.05°/ RMS, IP54 waterproof grade, -10℃~70℃ working temperature, 10-100Hz shock impact, aluminum anodizing and long service life.

High precision digital inclinometer

Multi-functional high-precision digital inclinometer supports data storage.

  • Data store function, absolute/relative measurement can switch.
  • Both sides and bottom can be measured, double benchmark strong magnet installation.
  • Auto-angle interleaved compensation function and auto temperature drifts compensation.
  • Built-in rechargeable industry batteries and night vision fours colors screen.
  • Filter frequency optional.
Digital inclinometers

Digital inclinometer can complete 360-degree measurements in 4 directions.

  • When the inclinometer is turned upside down, the angle readings displayed on the LCD will automatically flip upwards for easy reading.
  • Precise stainless steel measuring structure.
  • It can be re-calibrated without any special tools and equipment.
  • Multi-purpose measuring tool, three-in-one protractor, inclinometer and spirit level.
  • A 3-volt battery lasts for 3000 hours.

Applications

sisco digital inclinometer is a measuring tool for measuring small angles, which is widely used in railway systems, water conservancy systems, industrial automation, automobile industry, machinery industry, construction industry and other industries that need to measure and control angles.

Digital inclinometers applications

Specs
Model SISCO-DMI815-15 SISCO-DMI815-30
Angle Measuring Range ±15° ±30°
Mm Measuring Range 267mm 577mm
 Millimeter Measuring Accuracy 0.1 mm (RMS) 0.2 mm (RMS)
The Highest Measuring Accuracy <0.005 (Full measuring range) <0.001 (Full measuring range)
Measuring Axis Dual axis
Angle Measuring Solution 0.001°
Three Measuring Mode Selectable Radian, Angle, mm/meter can be set
Millimeter Measuring LCD 0.02 mm
Absolute Accuracy 0.05°/rms
LCD 64-color true color luminous display
LCD Visible Area Size L57.6mm*W43.2mm
Working Temperature -10℃-70℃
Working Humidity 85% RH
Power Supply 3.7V Charging Lithium Battery
Ideal Charging Time 5h
Battery Sustainable Charging Times 11h
Output Signal RS485/RS232
Equipped with PC Software VC Software
Connect Plug in Standard 5 Pin USB Connector
Shock Resistance 10g @11ms, three-axis (Half sine wave)
Shock Impact 10g RMS, 10-100Hz
Weight 300g
Waterproof Grade IP54
Material Aluminum Anodizing
Size L117mm*W75mm*H27.1mm
Certificate CE, FCC, ROHS

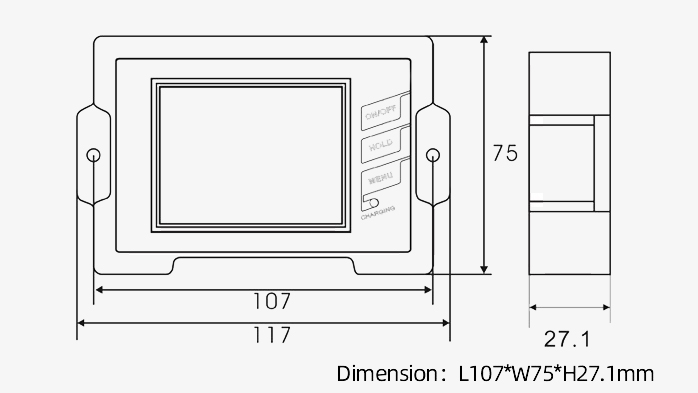

Dimension (Unit: mm)

High digital inclinometer dimension

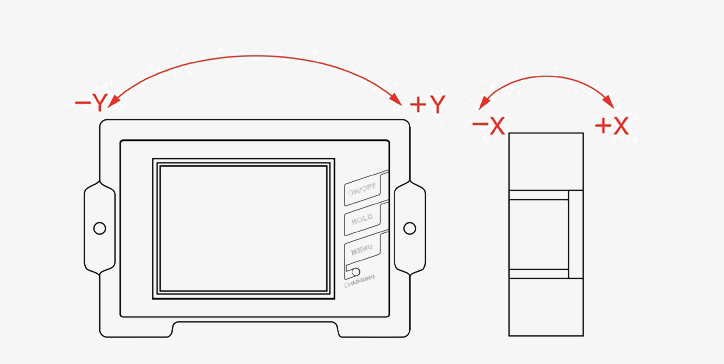

Measuring Direction

High accuracy digital inclinometer measuring direction

FAQs

Q1: What is a digital inclinometer?
A2: A digital inclinometer is a measuring tool for measuring small angles, which can measure the inclination of the horizontal position, the mutual parallelism and perpendicularity of the two parts, the straightness of the machine tool and the instrument guide rail, the flatness of the worktable, and the flatness of the flat plate, etc.

Q2: How does a digital inclinometer work?
A2: When the shaft in the base of the digital display angle meter rotates in one direction, the count increases, and when the rotation direction changes, the count decreases. The count is related to the initial position of the digital inclinometer. When the inclinometer is initialized, its count value is set to 0. By calculating the angle of rotation, the position and velocity can be easily measured.

Q3: What is an inclinometer used for?
A3:
Inclinometers are mainly used in high-precision laser instrument leveling, engineering machinery equipment leveling, long-distance ranging instruments, high-altitude platform safety protection, pitch angle measurement of directional satellite communication antennas, ship navigation attitude measurement, shield pipe jacking applications, dams Detection, tilt monitoring of geological equipment, measurement of initial firing angle of artillery barrels, detection of radar vehicle platform, attitude detection of satellite communication vehicles, etc.

Tips: What are the different types of clinometers?

The types of clinometers or inclinometers include angular clinometers, horizontal clinometers, protractor spirit inclinometers & protractor square inclinometers. Mechanical spirit levels are also available. Types of mechanical spirit levels include screw-on, cross, precision & magnetic angular spirit levels. sisco digital inclinometer is a kind of horizontal clinometers.
