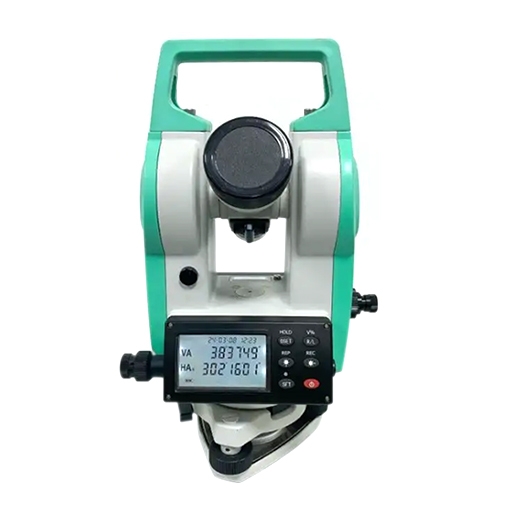

    Digital Theodolite for Engineering, 2" Accuracy

    The digital theodolite offers a 2-second accuracy and high precision. Unlike traditional optical theodolites, SISCO digital theodolites utilize double LCD displays, and high-brightness background lighting. It is used in various surveying and engineering applications.
    SKU: SISCO-DT-DT02L
    $1,008.71
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    Buy a cheap digital theodolite, it is optimized for engineering endeavors. With its high accuracy of 2 seconds and dual display feature, it's the ultimate choice for precise surveying activities.

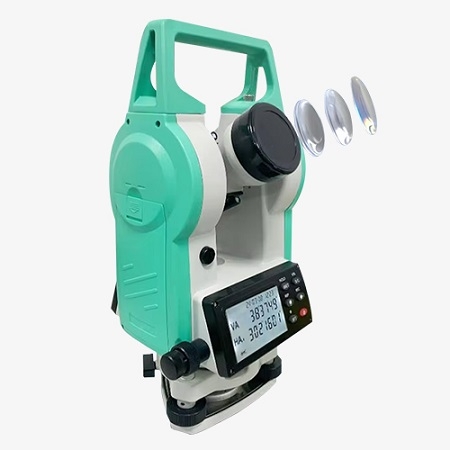

    Theodolite detail



    Digital theodolite has a 30X Objective

    • Magnify 30X clear and bright.
    • Laser plummet for options. Absolute angle encoder system.

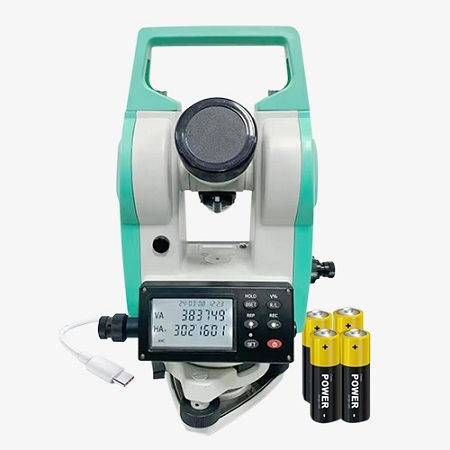

    Theodolite battery

    Digital theodolite with double LCD display

    • Large screen with a time display. High-brightness background lighting.
    • Independent tilt sensor, coaxial locking screw, waterproof telescope.
    • 4*aa size batteries, working time about 30 hours.


    Applications

    Digital theodolites are crucial for any project requiring precise angle and distance measurements. SISCO digital theodolite is used in various surveying and engineering applications, including land surveying, construction, road and rail alignment, topographic surveying, geodetic surveys, mining and tunneling, utilities and infrastructure, mapping, GIS, bridge and dam construction, and agricultural land management.

    Topographic surveying

    Topographic Surveying

    Civil engineering

    Civil Engineering

    Geodetic surveying

    Geodetic Surveying

    Construction layout

    Construction Layout

    Specs
    Model SISCO-DT-DT02L
    Angle measurement Measuring method Absolute Encoded
    Minimum reading 1"/5"
    Accuracy 2"
    Length of telescope 156mm
    Objective lens aperture 45mm
    Magnification 30X
    lmage Erect
    Field of view 1°30'
    Resolving power 3.5"
    Minimum focus distance 1.3m
    Stadia ratio 100
    Display Double LCD display
    Compensator Tilt sensor yes
    Compensating Range ±3'
    Sensitivity of plate level 30"/2mm
    Circular level 8’/2mm
    Plummet laser plummet
    Collimation Laser Wave length 635nm
    Max working distance up to 200m
    Power rechargeable batteries and 4xAA size batteries.
    Working time about 30 hours
    Working temperature -20°C~+50°C
    Data output RS232C
    Weight 4.7kg



    Packing List:

    • 1x Theodolite
    • 1x Rechargeable battery pack
    • 1x Charger
    • 1x AA size battery box
    • 1x Instrument manual
    • 1x Plastic carrying case
    FAQs

    Q1: What is a theodolite?
    A1: A theodolite is a precision optical instrument for measuring angles between designated visible points in the horizontal and vertical planes. It is commonly used in surveying and engineering to obtain precise angular measurements.

    Q2: What are the types of theodolites?

    A2: Theodolites, instruments used in surveying and engineering to measure horizontal and vertical angles, come in several types, each designed for specific applications:

    • Vernier Theodolite: Uses vernier scales for reading angles.
    • Micrometer Theodolite: Uses micrometer screws for more precise measurements.
    • Digital Theodolite: Incorporates electronic components to provide digital readings and often stores data internally or transmits it to external devices.
    • Transit Theodolite: Allows the telescope to be rotated through the vertical plane.
    • Non-Transit Theodolite: Does not allow full telescope rotation through the vertical plane.

    Q3: What is the difference between a theodolite and a total station?

    A3: While both theodolites and total stations are used in surveying and engineering applications to measure angles and distances, there are key differences between them:

    • Theodolite: Measures horizontal and vertical angles only.
    • Total Station: Combines theodolite functions with an electronic distance measurement (EDM) device, allowing it to measure angles and distances, and often includes data storage and processing capabilities.

    Tips: How do you calibrate a digital theodolite?

    To calibrate a theodolite, set it up on a stable tripod and level it using the foot screws and spirit level. Perform a collimation test by sighting a distant object, reversing the telescope, and noting any differences in readings. Adjust the crosshairs if needed. Check the vertical circle for index error by comparing readings of a horizontal plane from both telescope positions and adjust if necessary. Ensure the horizontal circle is accurate by rotating the instrument and sighting a fixed point at various positions. Recheck the levels and adjustments to confirm accuracy.

    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
