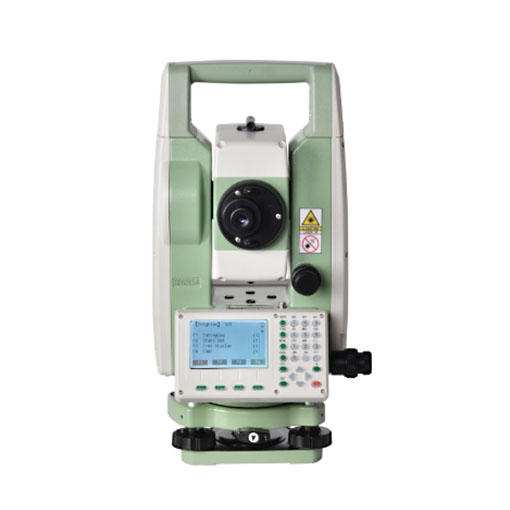

    Total Station for Civil Engineering, Reflectorless 1000m

    The SISCO advanced total station is available for sale, offering precision at an affordable price, making it ideal for civil engineering applications. It features two measurement ranges and accuracy options. Laser pointing and reflectorless ranging up to 1000 meters directly at the target point.
    SKU: SISCO-TS-Z5Pro
    *
    *
    $3,473.58
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    SISCO total station instrument for sale at a low cost, featuring reflectorless ranging up to 1000 meters, high precision ranging, laser pointing, waterproof and dustproof design, and fast USB communication. Suitable for civil engineering applications.

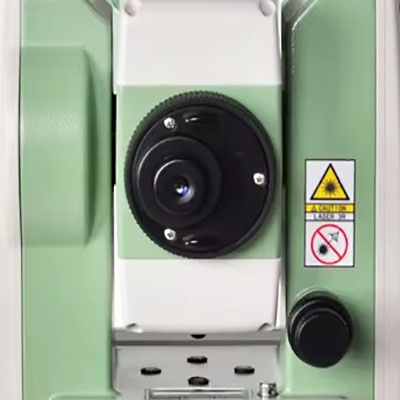

    Total station magnification



    Total station has a 30X Objective

    • Magnify 30X clear and bright. Effective aperture 48mm.
    • Laser plummet for options. Absolute angle encoder system.
    • Eyepiece. The DUT can be fine-tuned and more accurate.
    • Locking screw. For horizontal and vertical spirals, fine-tuning is more accurate.
    • Reflectorless. Pointing directly at the target point makes it more convenient to find the target.

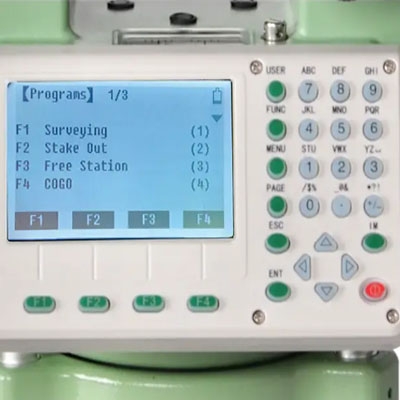

    Total station screen

    Total station with double LCD display

    • Large screen with a time display. High-brightness background lighting.
    • On-board software and memory. Use the powerful onboard software to measure offsets, missing lines, resection, or quickly generate a map.
    • Data output. You'll never need to worry about losing critical information, since the large internal memory stores up to 40,000 points, that can be uploaded or transferred through the RS-232 data port or USB.
    • Keyboard. All English numbers. The operation is simple.


    Applications

    A total station is a versatile and highly precise surveying instrument that integrates an electronic theodolite with an electronic distance meter (EDM) to measure angles and distances simultaneously. SISCO total stations are used in various surveying and engineering applications, including land surveying, construction, road and rail alignment, topographic surveying, geodetic surveys, mining and tunneling, utilities and infrastructure, mapping, GIS, bridge and dam construction, and agricultural land management.

    Total station surveying

    Topographic Surveying

    Total station civil engineering

    Civil Engineering

    Total station geodetic surveying

    Geodetic Surveying

    Total station construction layout

    Construction Layout

    Specs



    Model SISCO-TS-Z5Pro
    Distance Single prism 5000m
    Reflectorless 1000m
    Prism constant Manual input, auto-correction
    Measuring time 1s under fine mode/0.5s under track mode
    Accuracy Prism mode:±(2mm+2ppmxD)
    Non-prism mode:±(3mm+2ppmxD)
    Angle Measuring method Absolutely encoding
    Detecting system H: 2sides V: 2 sides
    Mini reading 0.5"/1"/5"/10" selectable
    Accuracy 2"
    Vertical angle 0° Zenith: 0°/Horizontal: 0°
    Telescope Length 154mm
    lmage Erect
    Magnification 30X
    Effective aperture Ø45mm
    Resolving power 3"
    Field of view 1° 30'
    Mini focus 1m
    Tilt correction Tilt sensor/Method Dual axis/Liquid electric
    Working Range ±4'(option ±6’)
    Accuracy 1"
    Level sensitivity Tubular level 30"/2mm
    Circular level 10'/2mm

    Optical or

    Internal laser plummet

    Field of view
    Change laser intensity Yes
    Focus range 0.3m~∞
    Display Type 2 sides, alphanumeric keyboard
    lumination Yes
    Data storage interface Storage Internal memory: 1GB; Max.SD card 32GB
    Data interface SD card/mini USB/RS232C/Bluetooth option
    Battery Operating time Up to 20h
    Operating temperature -20°C~+50°C
    Water protection IP66 (IEC60529)
    Weight 6kg



    Packing List:

    • 1x Total station
    • 1x Battery pack
    • 1x Charger
    • 1x Transmission cable
    • 1x Operating manual
    • 1x Cleanpaper
    • 1x Software disk
    FAQs

    Q1: What is a total station?
    A1: A total station is a surveying instrument that combines an electronic theodolite with an electronic distance meter (EDM) and a microprocessor to accurately measure angles, distances, and elevations. It is used in construction, land surveying, and other geospatial measurements.

    Q2: How does a total station work?
    A2: A total station works by measuring the angle between two points and the distance to the target point using a laser or infrared beam. The device's microprocessor calculates the precise coordinates of the target point, which can be stored and used for further analysis.

    Q3: What are the main components of a total station?

    A total station is a sophisticated surveying instrument that integrates various components to measure angles, distances, and elevations accurately. Here are the main components of a total station.

    • Electronic Theodolite: Measures horizontal and vertical angles.
    • Electronic Distance Meter (EDM): Measures distances using a laser or infrared signal.
    • Microprocessor: Processes data and performs calculations.
    • Display and Interface: Shows measurements and allows user input.
    • Optical or Laser Plummet: Assists in centering the instrument over a point.

    Tips: What is a prism, and why is it used with total stations?

    A prism is an optical device made of glass or other transparent materials, typically shaped like a geometric prism, with flat, polished surfaces. It is designed to refract, reflect, or split light. In surveying, prisms are often used as targets for distance measurement devices like total stations.

    Total stations, which are electronic/optical instruments used in modern surveying, utilize prisms to measure distances accurately. The total station emits a laser or infrared signal that reflects off the prism back to the instrument. By calculating the time it takes for the signal to return, the total station can determine the precise distance to the prism. This method allows for highly accurate measurements over long distances, making prisms essential tools in topographic surveys, construction, and engineering projects.



    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
