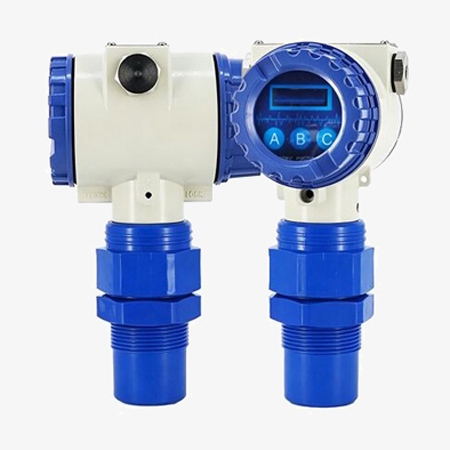

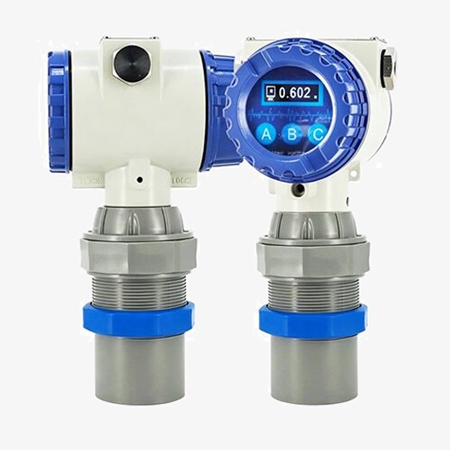

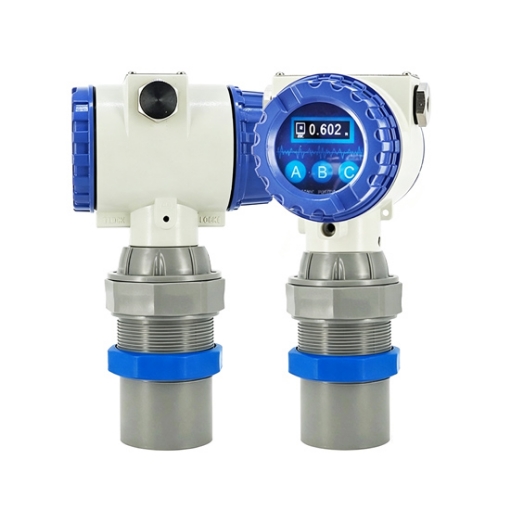

The explosion-proof ultrasonic level transmitter is built for reliable level monitoring in hazardous environments where safety and stability are essential. With Exd IIC T6 Gb explosion-proof protection, IP65 enclosure, and ultra-low power consumption below 0.6W, it ensures long-term operation in chemical plants, oil tanks, and industrial process systems.
Flexible Configuration & Signal Output
- Our explosion-proof ultrasonic level sensor works steadily within a 18~28V DC wide voltage range.
- Supports parameter backup & restore to save repeated configuration work.
- Adjustable analog output, freely configurable full-range start and end points.
- Provides additive & differential measurement modes for distance and level detection.
- Optional HART communication module is available for this explosion-proof ultrasonic level sensor.
Intelligent Measurement & Humanized Operation
- The explosion-proof ultrasonic level transmitter enables measurement of multiple physical quantities.
- Integrated digital filtering and dynamic echo recognition to optimize signal stability.
- Self-luminous display with Chinese & English bilingual menu for convenient field operation.
Applications
This explosion-proof ultrasonic level sensor is designed for non-contact continuous level measurement in flammable and explosive hazardous areas. It applies to oil tanks, organic solvent storage tanks, chemical reactors, pharmaceutical raw material tanks, sewage pits, collecting wells, and fire water pools with explosion protection requirements. Widely deployed in petrochemical, fine chemical, pharmaceutical, oil & gas storage, and explosion-rated wastewater treatment industries.

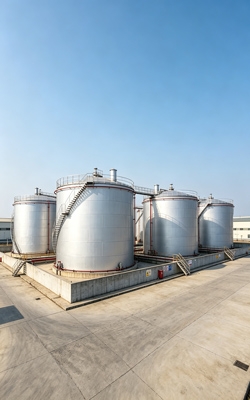

Oil Tank

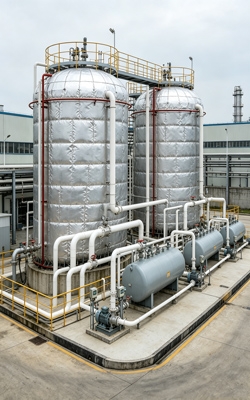

Organic Solvent Storage Tank
Chemical Reactor

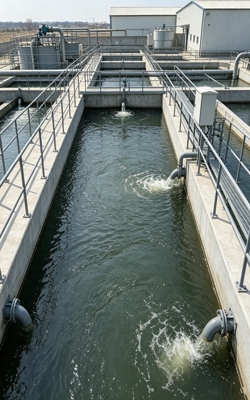

Wastewater Sump
| Model | SISCO-ULT-SZY-EX-101 |
| Measuring Range | Max. 20m, customized range available |
| Dead Zone | 0.3m–0.5m |
| Accuracy | ±0.3% F.S |
| Display | OLED Chinese & English menu (self-luminous) |
| Minimum Display Resolution | 1mm |
| Keypad | 3 tactile membrane keys |
| Operating Frequency | 20~350KHz (varies by model) |
| Optional Power Supply | 12–24VDC (Standard) or 220VAC (Optional) |
| Power Consumption | ＜0.6W |
| Output Signal |
4~20mA, RL＞600Ω (Standard) 4~20mA + HART (Optional) 2-channel relay output (Optional) RS485 output (Optional) |
| Housing Material | Cast Aluminum + ABS Engineering Plastic |
| Mounting Thread | G1 1/2 or M60*2 |
| Electrical Connection | M20*1.5 |
| Working Condition | Normal temperature & atmospheric pressure |
| Protection Class | IP65 |
| Explosion-proof Grade | Exd IIC T6 Gb |

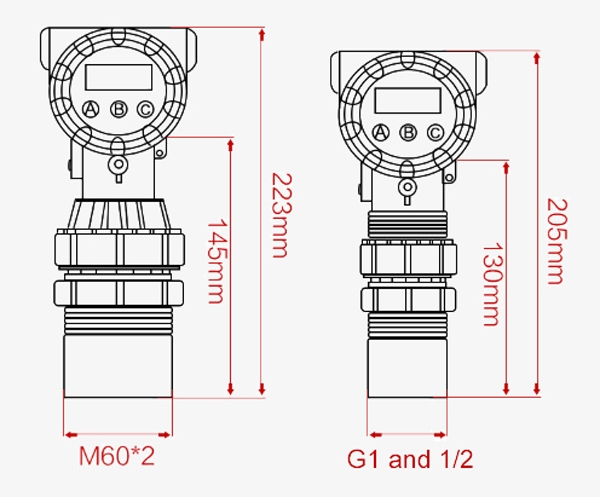

Dimensions (unit: mm)

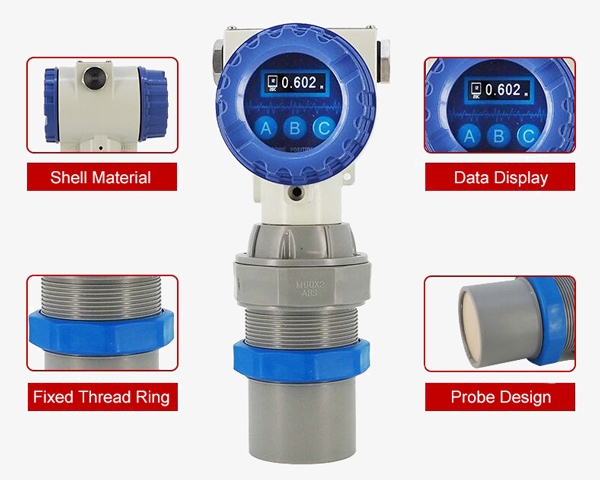

Details
Q1: What is the explosion-proof grade of this ultrasonic level sensor?
A1: The explosion-proof grade of this ultrasonic level sensor is Exd IIC T6 Gb. It uses a flameproof enclosure design and is suitable for hazardous areas containing explosive gases, providing safe and reliable non-contact level measurement for industrial applications.
Q2: What is the difference between a standard ultrasonic level transmitter and an explosion-proof ultrasonic level transmitter?
A2: A standard ultrasonic level transmitter is used in normal industrial environments, while an explosion-proof ultrasonic level transmitter is designed for hazardous areas with explosion risks. The explosion-proof model adds certified protection, such as Exd IIC T6 Gb, making it suitable for chemical, oil, gas, and other hazardous applications.
Q3: What is the dead zone of an explosion-proof ultrasonic level meter?
A3: The dead zone of an explosion-proof ultrasonic level meter is the area close to the sensor where measurement is not reliable. This model has a 0.3–0.5m dead zone depending on the sensor model, so the installation height should keep the liquid surface outside this range for accurate level measurement.
Tips: What causes an explosion-proof ultrasonic level sensor to lose signal?
An explosion-proof ultrasonic level sensor may lose signal due to foam, vapor, turbulence, incorrect installation, blocked signal paths, or power supply problems. Proper installation, suitable measurement conditions, and regular inspection help maintain stable ultrasonic level measurement.
