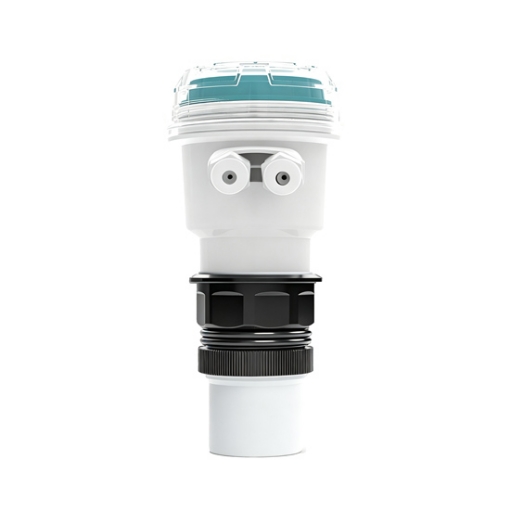

SISCO integrated ultrasonic level transmitter provides precise, non-contact liquid level monitoring with excellent accuracy and easy installation. With a 5m measuring range, 1mm resolution, and ±0.3%FS accuracy, it is ideal for industrial tanks, water management systems, and process control applications.
Hardware Structure Advantages
- Equipped with a high-performance chip for integrated ultrasonic liquid level transmitter, delivering fast signal response and reliable fundamental signal processing for level measurement.
- Adopts IP65 fully enclosed probe with outstanding tightness.
- Designed with 10° narrow beam angle to concentrate acoustic energy and enhance penetration capacity. It efficiently eliminates false echoes and clutter interference for accurate level detection.
Intelligent Algorithm & Compensation Function Advantages
- Self-developed chip integrated with upgraded AI compensation algorithm, greatly restraining external environmental disturbances.
- Built-in automatic sound velocity & temperature compensation function with intelligent thermal compensation. Integrated ultrasonic level sensor minimizes signal deviation caused by high temperature (≥50℃) and maintains consistent measurement precision under fluctuating working conditions.
Applications
The ultrasonic level transmitter is suitable for water treatment pools, municipal pump stations, various storage tanks, mixing reactors, acid & alkali tanks, electroplating baths and other environments, enabling non-contact level monitoring and automatic control for both ordinary and corrosive media. And it is widely used in water treatment, municipal engineering, chemical industry, surface treatment and other sectors.

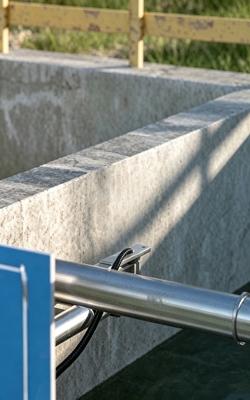

Wastewater Treatment

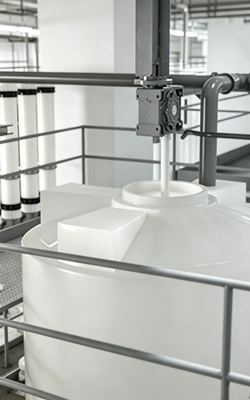

Acid And Alkali Storage Tanks

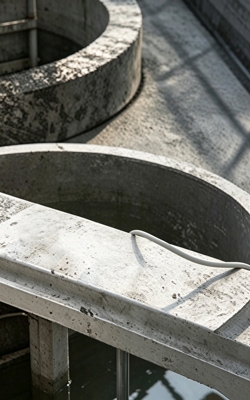

Agitated Liquid Surface

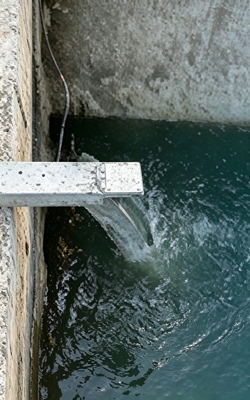

Urban Pipeline Network
| Model | SISCO-ULT-MIK-MP |
| Measurement Accuracy | ±0.3%FS |
| Measuring Range | 5m |
| Resolution | 1mm or 0.1%FS (whichever is larger) |
| Display | Chinese & English LCD Display |
| Transmitter Output | 4-20mA (2-wire / 4-wire optional), Output Accuracy ±0.2%FS |
| Alarm Output | 2-channel SPST (4-wire optional), 250VAC, 3A |
| Communication Output | RS485 (4-wire optional), Modbus-RTU Protocol |
| Power Supply | 18-28VDC |
| Weight | 800g |
Installation
Q1: What is an integrated ultrasonic liquid level transmitter?
A1: An integrated ultrasonic liquid level transmitter is a non-contact level measurement device that combines the ultrasonic sensor and transmitter into one compact unit to measure liquid levels using ultrasonic waves.
Q2: Does an integrated ultrasonic liquid level sensor need to contact the liquid?
A2: No. An integrated ultrasonic liquid level sensor is a non-contact level sensor that measures liquid height by sending ultrasonic waves from above the liquid surface. It is suitable for applications where direct contact with the liquid may cause corrosion, contamination, or maintenance problems.
Q3: What is the resolution of an integrated ultrasonic liquid level transmitter?
A3: The resolution of an integrated ultrasonic liquid level transmitter is 1mm or 0.1%FS, whichever is larger. It represents the smallest level change the transmitter can detect and helps ensure accurate liquid level monitoring in industrial applications.
Tips: What are the advantages of an integrated ultrasonic liquid level transmitter?
An integrated ultrasonic liquid level transmitter offers non-contact measurement, compact installation, accurate level monitoring, and low maintenance. Its combined sensor and transmitter design makes it suitable for water treatment, chemical storage, industrial tanks, and other liquid level measurement applications.
