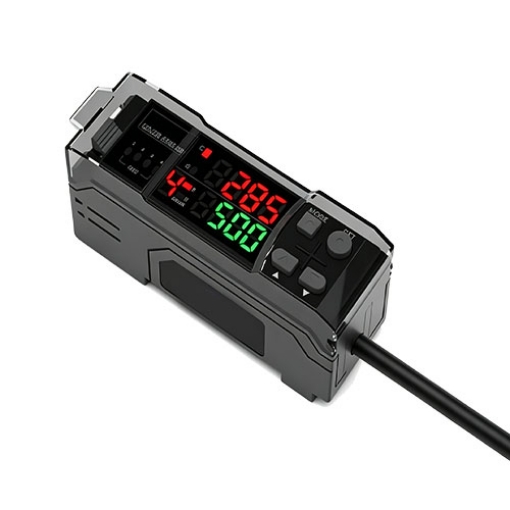

The SISCO multi-mode fiber optic color sensor uses triple 16-bit RGB calculations and multiple detection modes to identify micro color differences. This industrial color sensor delivers high-precision color recognition across over 3000 colors, ensuring stable and accurate performance.
High-Precision Micro Color Difference Recognition & Multi-Channel Storage
- The multi-mode fiber optic color sensor delivers exceptional accuracy by combining advanced RGB technology with robust memory capacity.
- The Multi-Mode Fiber Optic Color Sensor uses triple 16-bit RGB calculation and independent red, green, and blue LEDs for precise color recognition.
- As an advanced RGB color sensor, it accurately recognizes over 3,000 colors, ensuring reliable micro color difference identification for demanding tasks.
- The 8-channel design allows this color detection sensor to store up to 8 colors at once, enabling highly flexible color mark sensor configurations.
- It simultaneously detects 4 distinct colors (4 per A/B channel), significantly improving multi-point inspection efficiency for highly demanding industrial color sensor tasks.
Multi-Mode Detection & Flexible Parameter Configuration
- This color detection sensor offers versatile operational modes and extensive electrical customization for diverse industrial requirements.
- This advanced color detection sensor offers C (RGB comparison), CI (RGB plus light/dark), and SUPER I (light/dark) modes for diverse industrial detection needs.
- Selectable response times of 200μs, 1ms, 4ms, and 8ms, plus an adjustable 1 to 1,000ms timer, perfectly balance both speed and precision.
- It supports single-point, two-point, threshold fine-tuning, and maximum sensitivity settings, allowing quick and easy adaptation to varying, complex workpiece conditions.
- It provides NPN/PNP open-collector outputs (4 channels, 40VDC) with full protection, plus external inputs for tuning, emission stop, and bank switching.
Applications
SISCO multi-mode fiber optic color sensor is widely used for color mark detection, RGB color recognition, and color sorting in packaging, printing, textile, and electronics, ensuring reliable quality control in automated production lines.

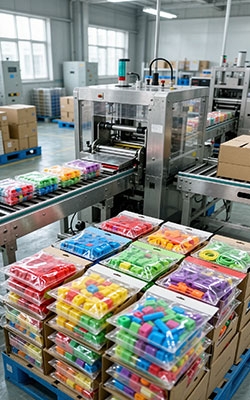

Packaging

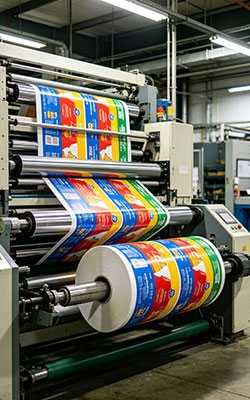

Printing

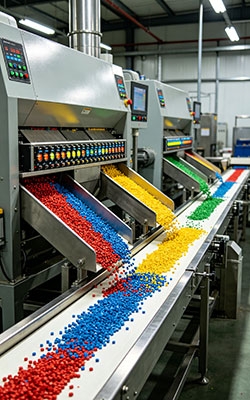

Sorting

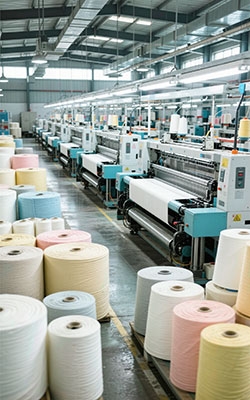

Textile
| Model | SISCO-CS-V21N | SISCO-CS-V21P |
| Transistor Type | NPN | PNP |
| Weight (with 2m Cable) | 150g | |
| Shell/Cover Material | PC | |
| Length of Optical Fiber Cable | 1m | |
| Outer Diameter of Optical Fiber | M6 | |
| Inner Diameter of Optical Fiber | Φ1*1 | |
| Output Signal | Switch Quantity | |
| External Calibration Input Time | 20ms (minimum value) | |
| Power Supply | 24VDC, Ripple (P-P): Max 10% | |
| Environment Temperature | -10~+55℃, No Condensation | |
| Current Consumption | Normal Mode: 1.5W (Max 62.5mA) Eco Mode: 1W (Max 42.0mA) |
|
| Timer Function | Adjustable from 1 to 1,000ms (for each area separately) | |
| Response Time | 200μS(HSP) /1ms(FINE) /4ms(TURBO) /8ms(SUPER) | |
| Light Source | Red LED 665nm/Green LED 520nm/Blue LED 465nm | |
| Control Output | NPN(PNP) Open Collector X4 Channels, Max 40VDC 1 Output up to 100mA, Total 4 Outputs up to 200mA Residual Voltage Max 1V |
|
| Vibration Resistance | 10 to 55Hz, 1.5 mm double amplitude, in X, Y, Z Directions, 2 Hours Each | |
| Protection Circuit | Reverse Polarity Protection/Overcurrent Protection/Overvoltage Protection | |

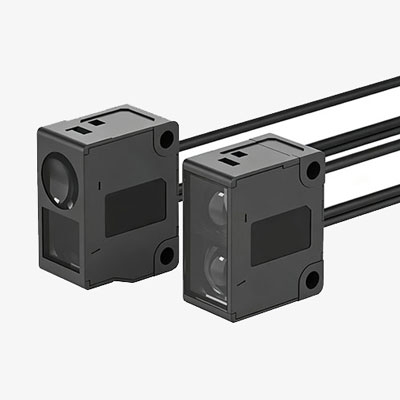

Sensor Head
| Model | SISCO-CS-H35 | SISCO-CS-H37 |
| Detection Range | 28- 52 mm | 11- 20 mm |
| Minimum Fiber Bending Radius | 25mm | 15mm |
| Weight (with 2m Cable) | 40g | 45g |
| Lens Cover Material | Polyarylate | PC, 304 Stainless Steel |
| Type | Large Spot Long Distance | Gloss Elimination, Small Beam Spot |
| Minimum Spot Diameter | 4.5mm Diameter at 40mm Reference Distance | 1mm Diameter at 16mm Reference Distance |
| Housing Material | PC | |
| Protection Class | IP40 | |
| Environment Temperature | -10 to +55℃, No Condensation | |
| Environment Illuminance | Incandescent: Max 10,000lux Daylight: Max 20,000lux |
|
| Vibration Resistance | 10 to 55Hz, 1.5mm Double Amplitude, in X, Y, Z Directions, 2 Hours Each | |

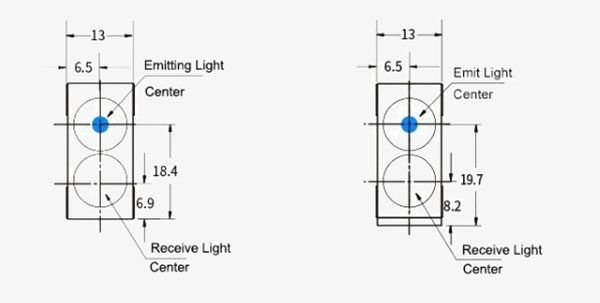

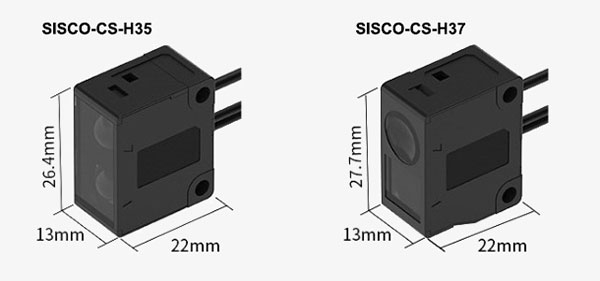

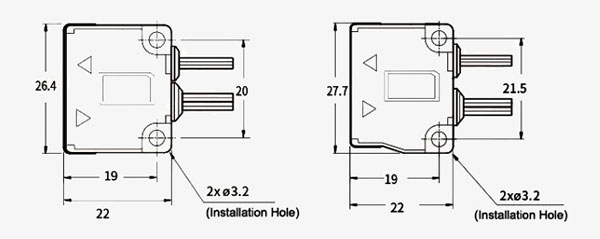

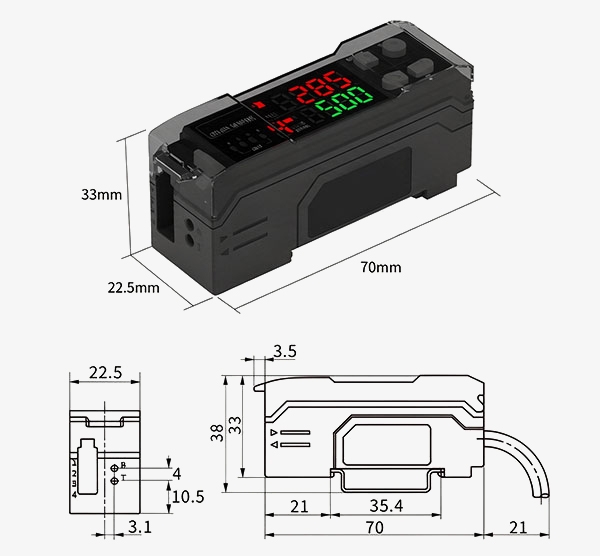

Dimensions (unit: mm)

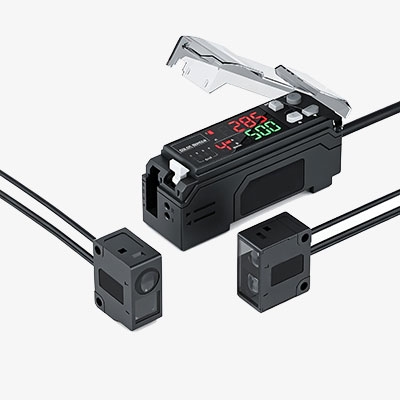

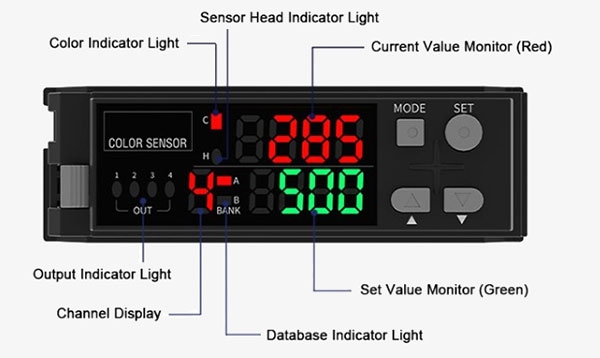

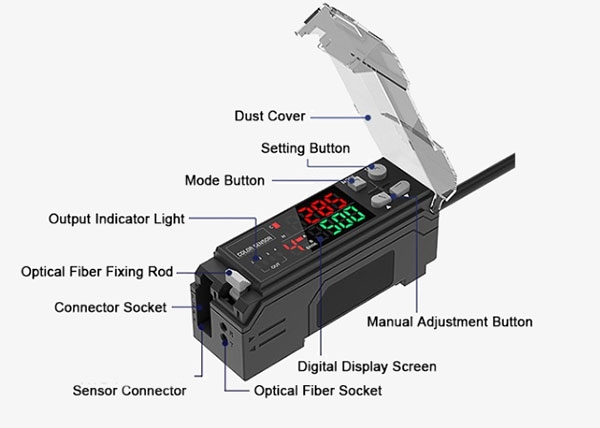

Details

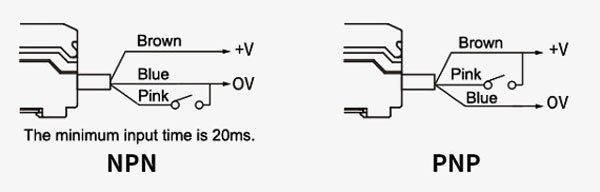

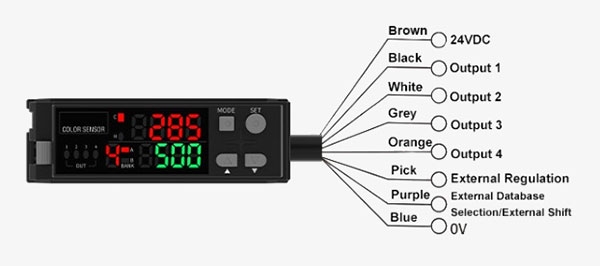

Wiring Method
External Input Settings

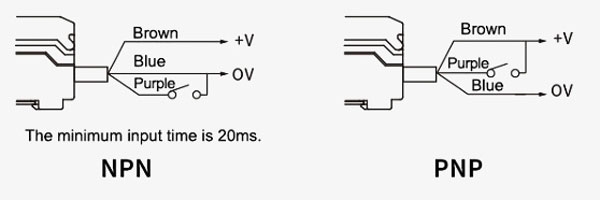

Set Sensitivity via External Input (External Tuning)
- Activate the key lock function.
- Connect the pink wire to an external device, such as a switch or PLC.
- Short-circuit the pink wire as shown in the diagram; for each model, this is equivalent to pressing the SET (setting) button.

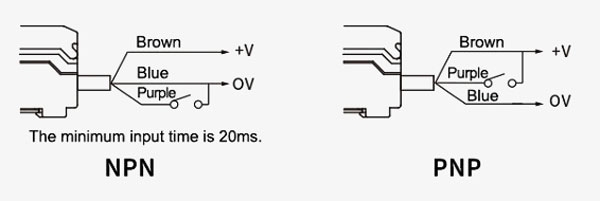

Select Database via External Input (In C/C+I Mode)
- Activate the key lock function.
- Connect the purple wire to an external device, such as a switch or PLC.
- Short-circuit the purple wire as shown in the diagram so that each model switches the database from A to B. (When the input signal is ON, the database is set to B.)
External Input Shift Input (During Super I Mode Setting)
- Connect the purple wire to an external device, such as a switch or PLC.
- Short-circuit the purple wire as shown in the diagram to enable shift input for each model. (The rising edge of the input signal executes the shift input.)
Q1: What makes the multi-mode fiber optic color sensor suitable for micro color difference identification?
A1: The multi-mode fiber optic color sensor uses an RGB color sensor with triple 16-bit RGB calculation and independent red, green, and blue LEDs. It accurately recognizes over 3,000 colors and offers three detection modes: C, CI, and SUPER I. These features ensure precise color mark sensor performance in demanding industrial environments.
Q2: How many colors can the RGB color sensor store and detect at the same time?
A2: The RGB color sensor features an 8-channel design that stores up to 8 colors. It can simultaneously detect 4 colors (4 per A/B channel). This makes the color detection sensor highly efficient for multi-point inspection and complex color sorting tasks.
Q3: What output and protection features does this industrial color sensor provide?
A3: This industrial color sensor provides NPN/PNP open-collector outputs with 4 channels, max 40VDC, and up to 100mA per channel (200mA total). It includes reverse polarity, overcurrent, and overvoltage protection. External inputs for tuning, emission stop, and bank switching further enhance its flexibility.
Tips: What factors should be considered to achieve stable color mark detection with a multi-mode fiber optic color sensor on high-speed production lines?
- Response time should match line speed: 200μs is suitable for high-speed detection, while 1ms, 4ms, and 8ms can be selected for standard color detection sensor tasks.
- Detection mode should be chosen based on target characteristics: C, CI, or SUPER I helps the RGB color sensor handle vibration, subtle color differences, or neutral colors.
- The 8-channel design allows the color detection sensor to store up to 8 colors and detect 4 colors simultaneously, reducing changeover time for industrial color sensor setups.
- Stable operation requires correct 24VDC power, proper NPN/PNP output wiring, and external tuning or bank switching to ensure reliable color mark sensor performance.
