Good price handheld digital surface resistivity tester equipped with a high-definition LCD display, makes the data clear. Ergonomically designed instrument body, convenient to hold and operate, easy to use. Lightweight body, portable and convenient, can be easily carried to various situations for measurement. ESD surface resistivity meter often used in the electronics industry and the machinery industry.

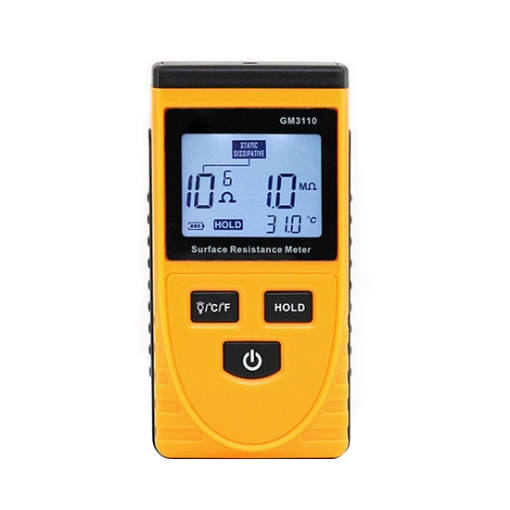

Handheld Digital Surface Resistivity Tester Equipped LCD Display
- Clear and Easy-to-Read Display. Surface resistivity tester equipped an LCD screen provides immediate numerical readings, eliminating the need to interpret analog scales, minimizing human error.
- User-Friendly Operation. LCD screens often allow additional information to be displayed, such as temperature value and battery level. Displaying these important parameter information on one screen, it not only facilitates the operation of users, but also improves work efficiency.

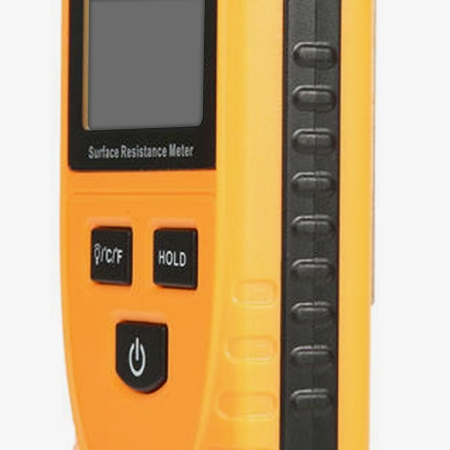

Side Anti-slip Design
- User-Friendly Design. ESD surface resistivity meters are often used in diverse environments, such as cleanrooms, laboratories, and production floors. The anti-slip sides make the tester more ergonomic, allowing technicians to carry and use it comfortably in different positions or confined spaces.
- Enhanced Safety and Durability. Surface resistance testers are precision devices. Dropping the instrument due to a slippery surface could damage sensitive internal components or shorten its lifespan. The side anti-slip design provides extra friction against the user's hand, thereby lowering the chance of accidents.
Applications
SISCO's surface resistance meter is an essential tool for measuring the electrical resistance of surfaces and materials, particularly in environments where static electricity control is critical. Its primary applications are in electronics manufacturing, cleanrooms, and laboratories. Surface resistivity meter ensures that both equipment and materials meet safety requirements, preventing static-related hazards and ensuring reliable product performance.
ESD Workshop
Laboratory
Data Center
Electronic Industry
| Model | SISCO-SRT-GM3110 | SISCO-SRT-GM3111 |
| Resistance Measurement Range | 103~1010Ω | 0.1*103~1.5*1012Ω |
| Resistance Measurement Accuracy | ±One order of magnitude | ±10% |
| Weight | 158g | 122g |
| Resistance Measurement Response Time | 1s | |
| Temperature Measurement Range | 0℃~50℃/ 32℉~122℉ | |
| Temperature Measurement Accuracy | ±2℃/±3.6℉ | |
| Power Supply | 9V 6F22 battery | |
| Dimension | 63.6*31*125.8mm | |
| Material Resistance Range | ||
| Conductor | ＜106 | |
| Anti-static Material | 106~1011 | |
| Insulator | ≥1012 | |
Dimension:
Q1: What is a surface resistance meter?
A1: A surface resistance meter is an electronic instrument used to measure the electrical resistance of a material’s surface, typically expressed in ohms (Ω).
Q2: How to maintain a surface resistance tester?
A2: Maintaining a surface resistance tester ensures accurate measurements and extends its lifespan. Always store the meter in a dry, dust-free environment to prevent moisture or dirt. Regularly check and clean the electrodes using a soft, lint-free cloth. Avoid dropping or subjecting it to strong vibrations. Handle with care and avoid exposing it to extreme temperatures or corrosive substances.
Q3: Is the surface resistance meter suitable for cleanroom environments?
A3: Yes, a surface resistivity meter can be suitable for cleanroom environments. Portable, handheld meters allow operators to measure the resistivity of ESD mats, flooring, and work surfaces without disturbing the cleanroom conditions.
Tips: What common mistakes should be avoided when using a handheld digital surface resistivity tester?
When using a handheld digital surface resistivity tester, several common mistakes should be avoided. Do not touch the test electrodes during measurement, as body contact may affect readings. Ensure the surface is clean and free from dust, oil, or moisture, since contamination can distort results. Avoid using the meter in high humidity or extreme temperatures, which can lead to inaccurate measurements.
