A digital electrostatic field meter is a portable instrument designed to measure electrostatic voltage, and display the results on a digital screen. Compact and lightweight, handheld model allows the user to easily move around and test different surfaces.

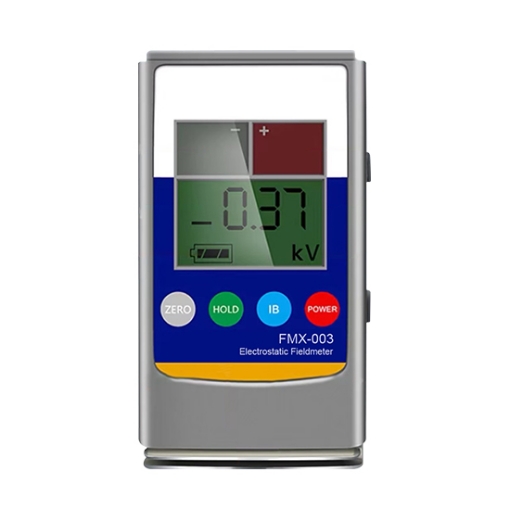

LCD Digital Display
- Accurate and Real-time Measurements. The LCD digital display provides precise, real-time readings of data. Unlike analog meters, which can be harder to interpret, the digital screen ensures clarity, reducing the risk of human error.
- Quick Response and Real-Time Monitoring. Static field meter with digital display often has fast response times, enabling real-time monitoring of static levels on surfaces or objects.

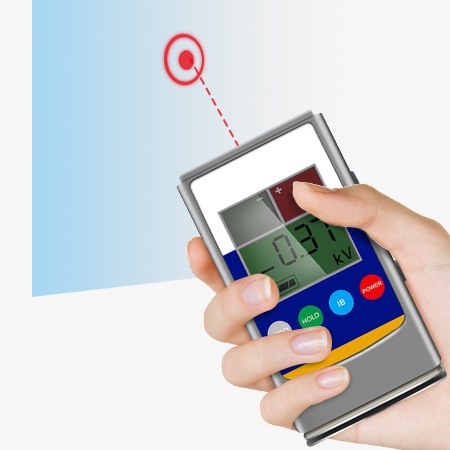

Handheld and Non-contact Measurement
- High Portability and Ease of Use. Being handheld, the electrostatic field meter is compact and lightweight, allowing users to carry it easily and operate it with one hand.
- Non-contact measurement ensures safety and accuracy. One of the biggest benefits of non-contact testing is that the instrument does not disturb the charge distribution on the surface of the object. With a non-contact digital static field meter, the integrity of the electrostatic field is maintained, providing more precise and reliable measurements.
Applications
SISCO's static field meter plays a vital role in environments where static electricity can affect processes, product quality, or safety. Such as is cleanrooms and laboratories, where static can attract dust and contaminants, potentially affecting precision experiments. Electrostatic field meters are also used in plastics, textiles, and film production.
Cleanroom
Textile Production
Plastic Production
Laboratory
| Model | SISCO-EFT-FMX003 |
| Electrostatic Voltage Measuring Range | 0 to ±1.49KV (low range), ±1.0kV to ±20.0KV (high range) |
| Ion Balance Voltage Measuring Range | 0 to ±200V |
| Measuring Distance | 25mm±0.5mm (between object and fieldmeter) |
| Response Time | ＜1s |
| Display | LCD display |
| LCD display renewal rate | 5 times/s |
| Accuracy | ±10% |
| Ambient Conditions | 10 ℃~40 ℃, 0~60%RH |
| Case Material | Conductive resin(ABS) |
| Power Supply | 9V 6F22Y manganese battery |
| Dimension (L*W*H) | 123*73*25mm (including ion balance plate) |
| Net Weight | About 170g |

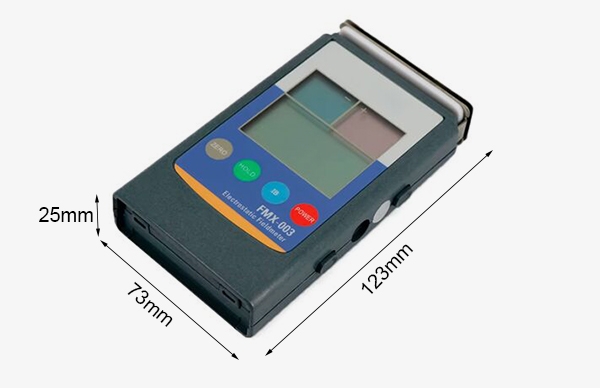

Dimension:
Q1: What is electrostatic field meter?
A1: This electrostatic field meter is a device used to measure the static voltage on a surface without making physical contact (about 25mm distance). Electrostatic meter commonly used in cleanroom, and laboratory to prevent damage from electrostatic discharge (ESD).
Q2: How does an electrostatic field meter work?
A2: It detects electrostatic charges by sensing the electric field generated by charged objects. With digital display, static field meter will directly reflect the static voltage through numbers.
Q3: Can humidity influence the measurement of static field meter?
A3: Yes, humidity can significantly influence the measurement of a static field meter. High humidity increases the conductivity of surfaces and the surrounding air, allowing accumulated static charges to dissipate more quickly. electrostatic field measurements are sensitive to environmental moisture, and readings can vary depending on ambient humidity. For accurate and consistent measurements, it is essential to account for or control humidity levels during testing.
Tips: Is a handheld digital electrostatic field meter suitable for the printing industry?
Yes, a handheld digital static field meter is suitable for the printing industry. Printing processes, especially offset and flexographic printing, are prone to static buildup on paper, films, and rollers, which can cause paper jams, misfeeds, dust attraction, and print defects. A handheld meter allows operators to quickly measure surface static voltages on materials, machinery, and work surfaces, ensuring static levels remain within safe limits.
