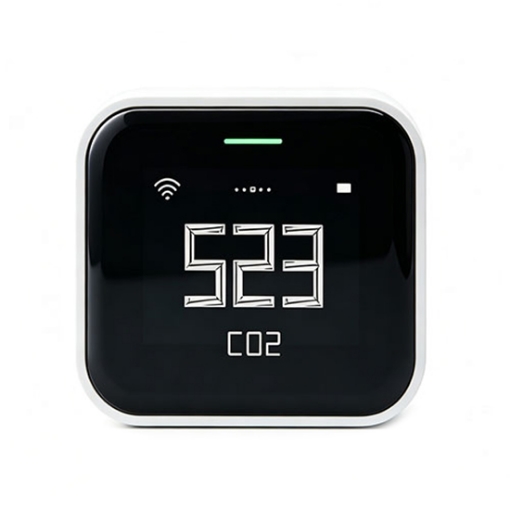

SISCO home air quality sensor offers Wi-Fi and Bluetooth 5.0 connectivity. Powered by a 2000mAh battery, its 63.6×46×54.6mm body ensures flexible placement. It tracks CO2/PM2.5/PM10 levels accurately, providing real-time data for comprehensive indoor air quality monitoring.
Five-in-One High-Precision Detection
- Continuously tracks CO2 (400-9999 ppm), PM2.5, PM10 (0-500 μg/m3), temperature (0-40°C), and humidity (0-95% RH) simultaneously with high accuracy.

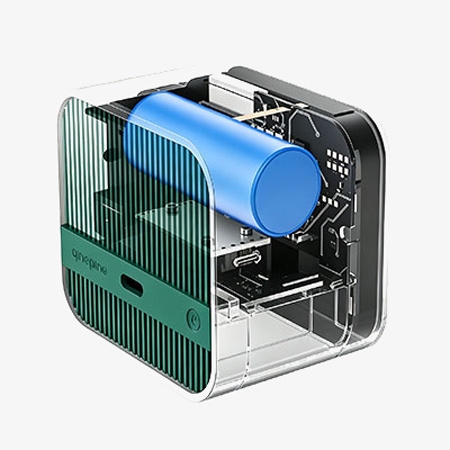

- Equipped with a high-precision laser sensor, it detects fine particulate matter as small as 0.3 μm, ensuring reliable and precise readings for comprehensive air analysis.
- Refreshes all five data points every single second, allowing users to monitor dynamic changes in air quality in real time without delays.
- Features a 59.9×49.9mm OLED screen and a vivid multi-color indicator light that changes colors (green, yellow, red, dark red) to reflect air quality levels for instant visual feedback.
Smart Connectivity & Ecosystem Integration
- Supports dual-mode connectivity via 2.4GHz Wi-Fi and Bluetooth BLE 5.0, ensuring stable data transmission and low power consumption for seamless operation.
- Natively integrates with Apple HomeKit and Mijia ecosystems, allowing users to access real-time readings and configure settings through dedicated smartphone apps.
- Functions as a Bluetooth gateway, enabling other compatible smart devices to join the network and extending the overall coverage of the smart home system.
Enables smart scene automation based on real-time air data. When CO2, - PM2.5, or humidity levels deviate from preset thresholds, it automatically triggers other smart appliances to maintain a healthy environment.
Applications
SISCO home air quality sensor suits bedrooms, offices, and nurseries. Tracking CO2, PM2.5, and PM10, it helps maintain a healthy indoor environment. Ideal for daily use, it raises awareness of indoor air conditions.
Living Room
Bedroom
Baby Room
Office
Â
| Model | SISCO-AQS-CGDN1 |
| Detection Metrics | CO2, PM2.5, PM10, Temperature, Humidity |
| CO2 Range | 400 ~ 9999 ppm |
| PM2.5 / PM10 Range | 0 ~ 500 μg/m3 |
| Temperature Range | 0°C ~ 40°C |
| Humidity Range | 0 ~ 95%RH (Non-condensing) |
| Sensor Precision | Detects particles as small as 0.3 μm |
| Data Refresh Rate | 1 second |
| Display | OLED Screen (59.9 × 49.9 mm) |
| Operation | Slide & Tap Touch Control |
| Connectivity | Wi-Fi (2.4GHz, IEEE 802.11 b/g/n), Bluetooth BLE 5.0 |
| Smart Ecosystem | Apple HomeKit, Mijia |
| Gateway Function | Bluetooth Gateway supported |
| Dimensions | 63.6 × 46 × 54.6 mm |
| Battery Capacity | 2000mAh |
| 2000mAh | 3.7V |
| Usage Warning | No waterproof/dustproof function. Avoid environments with RH > 90%. |
| Weight | 143 g |

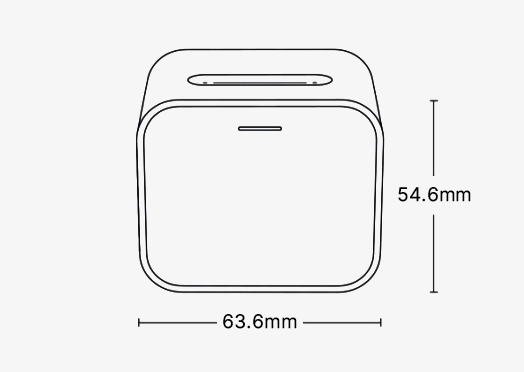

Dimensions (unit: mm)
Q1: Does the home air quality sensor support Apple HomeKit and Mijia?
A1: Yes, it natively integrates with both Apple HomeKit and Mijia ecosystems for convenient smart control. Users can easily access real-time readings and configure settings via dedicated smartphone apps. This smart home air quality sensor also works as a Bluetooth gateway.
Q2: How often does the home air quality sensor refresh its detection data?
A2: It refreshes all five metrics—CO2, PM2.5, PM10, temperature, and humidity—every second. This high-frequency update ensures users receive highly accurate, real-time insights into their indoor environment. It allows immediate adjustments to maintain a healthy living space.
Q3: Can the home air quality sensor be used in a bathroom or other humid environment?
A3: No, it has no waterproof or dustproof function. Avoid using it where relative humidity exceeds 90% or condensation occurs. To ensure durability, place this indoor air quality monitor in dry, well-ventilated rooms away from moisture.
Tips: How can I get the most accurate and reliable performance from my home air quality sensor?
- Place the home air quality sensor in a central, open area at breathing height, away from windows, doors, vents, and direct sunlight. This helps it capture representative CO2, PM2.5, PM10, temperature, and humidity readings instead of localized drafts or heat sources.
- Keep the device away from cooking fumes, incense, humidifiers, and strong chemical odors, as these can temporarily skew particulate and gas measurements. Also avoid enclosed cabinets, corners, or areas with poor air circulation.
- When CO2 levels rise, open a window or let the sensor trigger a smart purifier, fan, or HVAC system through HomeKit or Mijia. Automation based on real-time data keeps indoor air fresh without constant manual checking.
- Since the home air quality sensor is not waterproof or dustproof, place it in dry rooms with relative humidity below 90% and no condensation. Avoid bathrooms, laundry areas, or damp basements to prevent sensor damage.
- Check daily and weekly patterns in the app rather than reacting to a single reading. This helps identify recurring issues such as poor ventilation, seasonal pollen, or humidity changes, allowing timely adjustments for a healthier indoor space.
