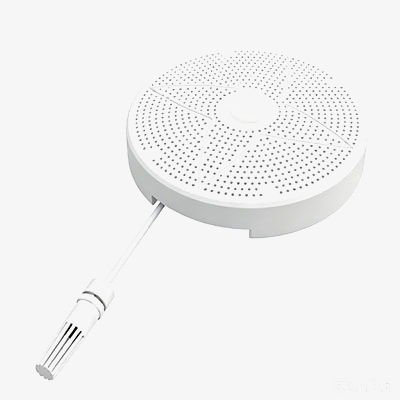

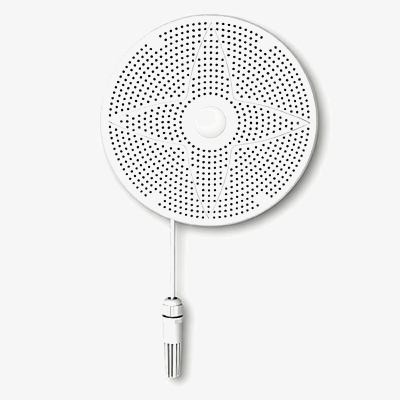

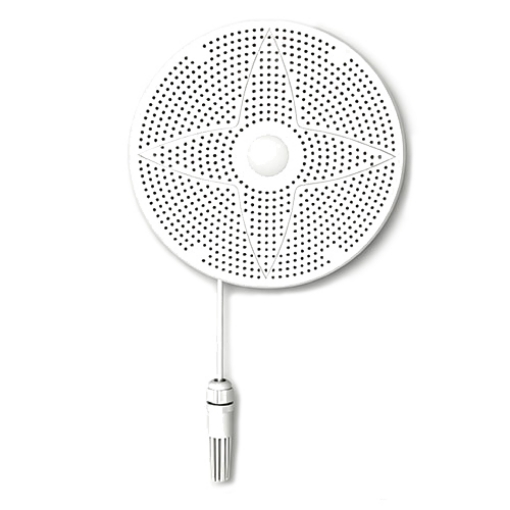

SISCO indoor air quality sensor employs high-sensitivity gas detection probes and advanced signal processing for consistent measurement accuracy. The rugged ABS housing ensures durability in various indoor environments. With plug-and-play installation and stable long-term performance, this sensor offers dependable air quality assessment without frequent recalibration.
All-in-One Integrated Multi-Parameter Monitoring
- Monitors temperature, humidity, PM2.5, PM10, TVOC, CO2, and formaldehyde (CH2O) simultaneously, covering core air quality parameters without purchasing multiple devices.
- PM2.5 and PM10 measurement employs dual-frequency data acquisition and automatic calibration, achieving particle consistency within ±10% for reliable cross-device data comparison.
- Swiss-made temperature and humidity sensing elements ensure long-term accuracy and operational stability.
- Gas detection modules utilize electrochemical or catalytic combustion principles based on target gas type, optimizing sensitivity for each specific parameter.
Flexible Dual-Output and Wide-Compatibility Design
- RS485 output with standard Modbus-RTU protocol enables direct connection to building automation and industrial control systems with stable long-distance transmission.
- WiFi output eliminates communication cabling, enabling cloud platform access and remote real-time monitoring via computer or mobile device.
- Single device model supports both output options, simplifying product selection without requiring pre-purchase commitment to a specific communication method.
- Supports DC 10-30V wide-voltage input with minimum power consumption of just 1.5W, adapting to various power supply configurations.
Applications
SISCO indoor air quality sensor is widely used in office buildings, schools, hospitals, hotels, shopping malls, airports, subway stations, and residential communities. It is also ideal for laboratories, museums, gymnasiums, and industrial workshops where continuous air quality monitoring is essential for occupant health and comfort.
Airport
Hospital
Office Building
School
Â
| Model | SISCO-AQS-MG111-NO1-1 | SISCO-AQS-MG111-WIFI-1 | |
| Maximum Power Consumption   | 1.5W (24V DC power supply) | 1.6W (24V DC power supply) | |
| Signal Output | RS485 output | WIFI output | |
| Detection Parameters | Carbon dioxide (COâ‚‚) | Formaldehyde (CHâ‚‚O) | Methane (CHâ‚„) |
| Range | 0-5000ppm | 0-5ppm | 0-100%LEL |
| Resolution | 1ppm | 0.01ppm | 1%LEL |
| Precision | ± (50ppm+3%FS) | ±5%FS (@1ppm, 25°C, 50%RH) | ±5%FS |
| Warm-up Time | 2min (usable), 10min (maximum accuracy) | ≥5 minutes | ≥5 minutes |
| DC Power Supply | DC 10-30V (Default) | ||
| Working Temperature | -10°C to 55°C | ||
| Working Humidity | 0-95% RH, non-condensing | ||
| TSP Required Temperature | -10°C to 55°C | ||
| TSP Required Humidity | 0-70%RH | ||
| Material | ABS | ||
| Installation | Wall/Ceiling | ||
| Note | If you require air quality monitor sensors in other measurement ranges not listed in the table above, please contact us with your operating environment to help you select the right sensor for your application. | ||

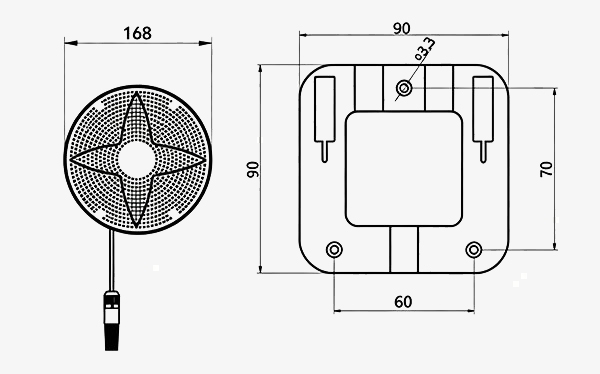

Dimensions (unit: mm)

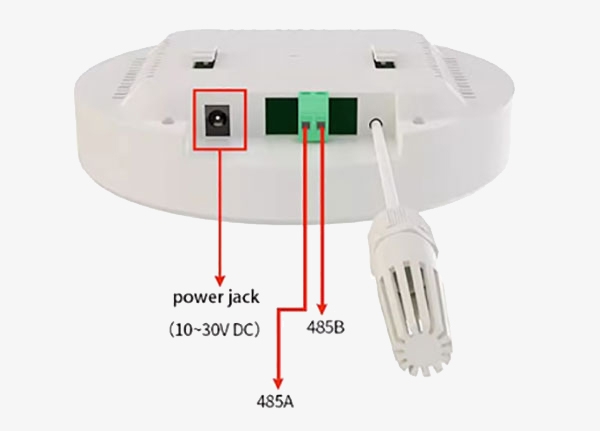

Wiring Method
Q1: What parameters can this indoor air quality sensor with WiFi/RS485 output measure?
A1: This indoor air quality sensor with WiFi/RS485 output simultaneously monitors temperature, humidity, PM2.5, PM10, TVOC, CO2, and formaldehyde (CH2O), covering the core indicators for comprehensive indoor air quality assessment.
Q2: What are the differences between WiFi and RS485 output on this indoor air quality sensor?
A2: The RS485 output on this indoor air quality sensor uses the Modbus-RTU protocol, enabling stable long-distance transmission and direct integration with building automation and industrial control systems. The WiFi output eliminates the need for communication cables, allowing the sensor to connect wirelessly to a network for remote data access via a computer or mobile device.
Q3: What power supply does this indoor air quality sensor with WiFi/RS485 output require?
A3: This indoor air quality sensor with WiFi/RS485 output accepts a wide DC 10-30V input and consumes only 1.5W, making it compatible with most standard power supply configurations.
Tips: How to ensure accurate readings from this indoor air quality sensor with WiFi/RS485 output?
- Place the sensor at least 1.5 meters above the floor and away from doors, windows, air vents, or direct sunlight to avoid external interference.
- Avoid installing the sensor near heat sources, steam outlets, or areas with strong airflow, as these conditions may affect temperature, humidity, and gas concentration readings.
- Allow the sensor to warm up for at least 10 minutes after power-on before recording data, ensuring the sensing elements reach optimal operating stability.
- Clean the sensor housing and ventilation openings regularly to prevent dust accumulation, which can impact gas detection sensitivity and overall measurement accuracy.
