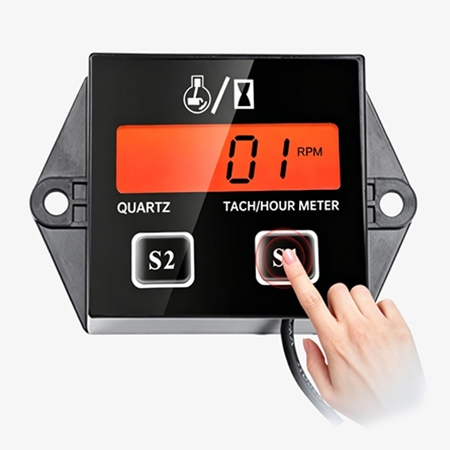

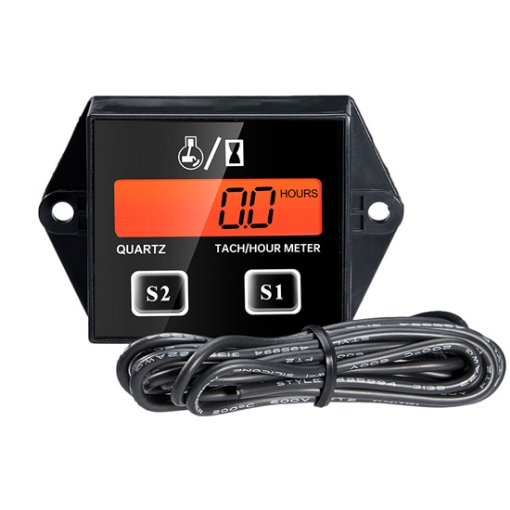

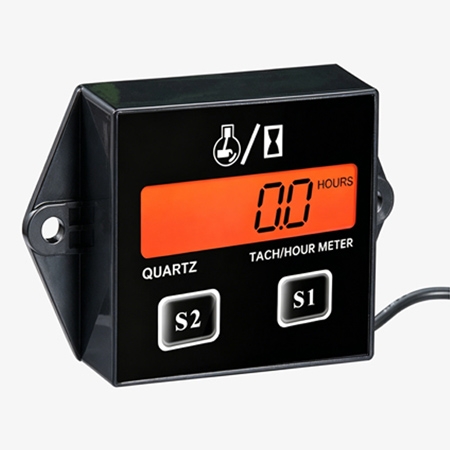

Inductive Hour Meter For Engine

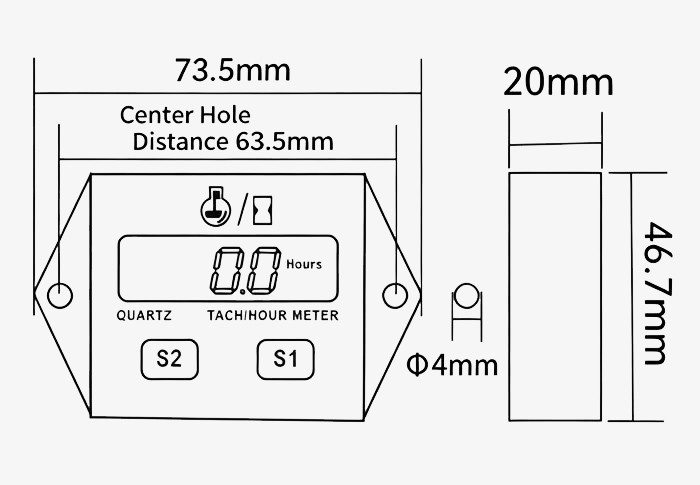

Dimension

Q1: What is an Inductive hour meter?
A1: An Inductive hour meter is a device used to measure and record the total operating time of an engine or machine without requiring a direct electrical connection to the power system. Instead of wiring into the engine, it works by using an inductive sensing wire that is wrapped around a signal source such as a spark plug cable. When the engine runs, electrical pulses are generated in the ignition system. The inductive sensor detects these pulses and automatically starts accumulating running hours.

Q2: Why choose an Inductive hour meter instead of a wired one?
A2: Choose an Inductive hour meter for the engine instead of a wired one because it offers a much simpler and safer installation without the need to modify or connect to the engine’s electrical system. By using a sensing wire that wraps around the spark plug cable, it can detect engine operation through electromagnetic induction, making it quick to install, highly compatible with different small engines, and easy to transfer between machines. In contrast, wired hour meters require direct electrical connection, which can be more complex, less flexible, and riskier in terms of wiring errors, while the inductive type provides a convenient, non-invasive, and reliable solution for tracking engine runtime.

Q3: Can an inductive hour meter for engine withstand high-temperature environments?
A3: Yes, an Inductive hour meter for engine is generally designed to withstand high-temperature environments, especially in the sensing wire area that is placed near the ignition system. The inductive lead is typically made with high-temperature resistant materials (often up to around 200°C in many models), allowing it to operate reliably in the heat generated around spark plug cables and engine components. In addition, the main unit is usually sealed and protected to prevent damage from heat, vibration, and moisture, making it suitable for use on motorcycles, generators, and other small engines that operate under demanding conditions.

Tips: How to choose an Inductive hour meter?

To choose an inductive hour meter for engine, you should consider compatibility, durability, and ease of installation.

First, make sure the meter is suitable for your engine type, such as motorcycles, generators, or marine engines.

Then choose a model with a simple inductive design that can be easily installed by wrapping the sensing wire around the spark plug cable without any wiring modification. It is also important to check for strong environmental resistance, such as waterproof (preferably IP65/IP68) and heat-resistant construction, to ensure reliable performance in outdoor or high-temperature conditions.

In addition, select an hour meter with a wide measuring range, clear LCD display, and low power consumption to guarantee long-term, accurate engine runtime tracking for proper maintenance management.
