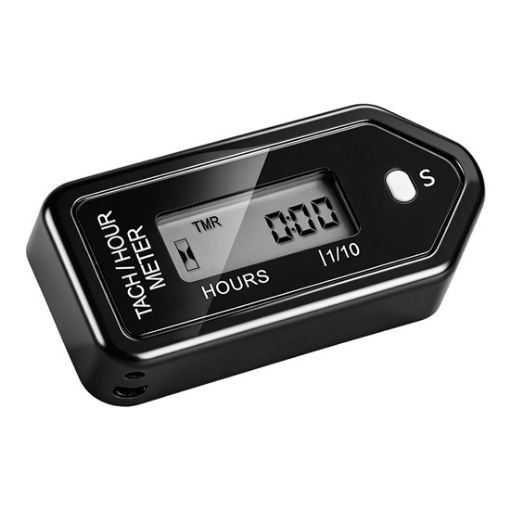

Buy a resettable hour meter online, featuring a 0-99999.9H timing range, 1-minute resolution, 0-30000 RPM tachometer, and resettable single-trip timer. With IP68 waterproof protection, 200℃ heat-resistant wire, and ultra-low power consumption, this hour meter is ideal for motorcycles, generators, lawn mowers, marine engines, and maintenance tracking.
Core Functions
- As a resettable hour meter, it tracks single operating time with a manual reset function, ideal for single work records and maintenance cycle management.
- The tach hour meter offers two countdown modes (5 hours and 10 hours) to meet diverse maintenance needs.
- Hour meter monitors and displays real-time engine speed within 0-30000 RPM, compatible with various gasoline engines.
- 7 ignition stroke modes (1P1R/1P2R/2P1R/3P1R/4P1R/6P1R/8P1R) are selectable to fit different vehicle models.
- Resettable hour meter records maximum engine speed and supports reset, facilitating performance adjustment and troubleshooting.
Hardware & Performance Advantages
- High protection level: Adopts epoxy resin potting technology and features an IP68 waterproof rating. The hour meter works steadily in humid, dusty, and harsh outdoor environments and resists water splashes.
- Stable & low power consumption: Built-in smart chip ensures accurate data acquisition and reliable operation. Low-power design prolongs service life and lowers battery replacement frequency.
Applications
Resettable hour meters are compatible with virtually all gasoline engines and ideal for a wide range of equipment, including off-road motorcycles, all-terrain vehicles, go-karts, golf carts, motorboats, yachts, lawn mowers, chainsaws, hedge trimmers, wood chippers, rice transplanters, tillers, bulldozers, excavators, rammers, road rollers, polishers, and road cutters. Perfect for recreational, marine, garden, agricultural, construction, and road maintenance machinery.
Hang Glider
Off-Road Motorcycle
Snow Vehicle
Beach Car
Â
| Model | SISCO-ZSB-2301 |
| Power Supply Voltage | DC 3V |
| Waterproof Rating | IP68 |
| Power Consumption | 0.000015-0.00011W |
| Available Colors | Black, Blue |
| Timing Range | 0-99999.9 H |
| Resolution | 1 Minute |
| Trip Timer | Resettable |
| RPM Range | 0-30000 RPM |
| Maintenance Countdown Mode | 5H / 10H |
| Wire Temperature Resistance | Up to 200°C |
|
Weight Approx |
55 g |
| Package Dimensions | 7.3 × 7.3 × 4.8 cm |

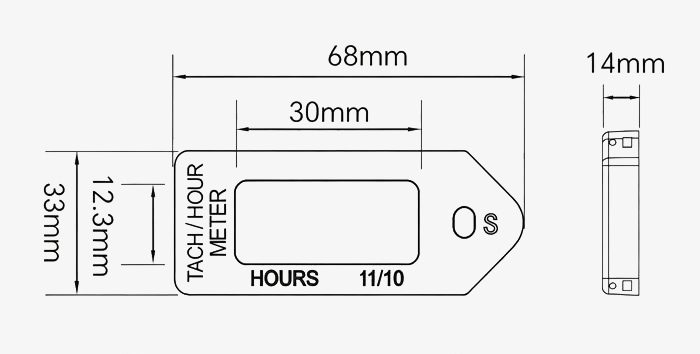

Dimensions (mm)
Q1: What is a resettable hour meter?
A1: A resettable hour meter is a device that records equipment operating time and allows the user to reset the displayed hours back to zero. It's commonly used to track maintenance intervals, project runtime, or rental equipment usage.
Q2: What is the difference between a resettable hour meter and a standard hour meter?
A2: A standard hour meter permanently records total operating hours and cannot be reset. A resettable hour meter allows users to start a new count whenever needed. If you need lifetime usage records, a standard hour meter is the better choice. If you need to track service intervals or temporary jobs, a resettable hour meter is more convenient.
Q3: Do resettable hour meters provide accurate readings?
A3: Yes, resettable hour meters are generally accurate for tracking operating time. They record runtime based on electrical signals or engine operation, so the accuracy depends on the signal source rather than the reset function itself. The reset feature only clears the recorded hours when needed—it does not affect how accurately the meter measures time during operation.
Tips: Why choose a resettable hour meter instead of a non-resettable one?
A resettable hour meter is more flexible because it allows users to clear the recorded time and start a new cycle after maintenance, servicing, or equipment change. This is especially useful for rental equipment, testing environments, or machines that require frequent service tracking. In contrast, a non-resettable hour meter only shows total lifetime usage, which is less convenient when you need to monitor multiple operating periods separately.
