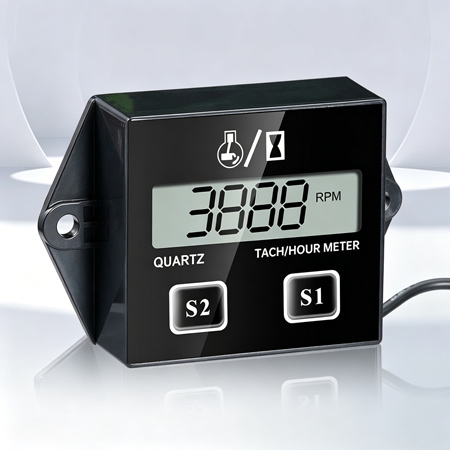

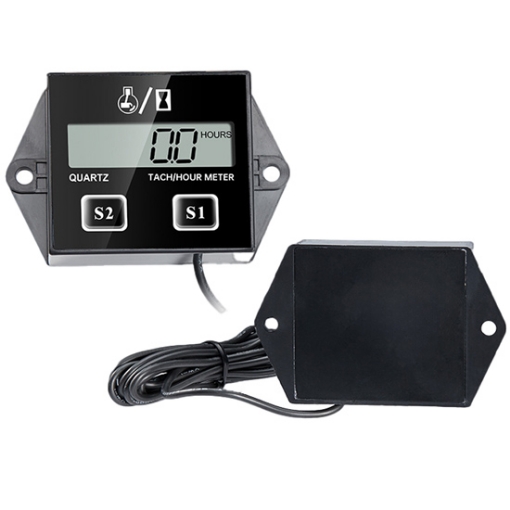

SISCO tach hour meter features an IP65-rated waterproof ABS housing, offering strong protection against dust and water ingress in demanding environments. Motorcycle hour meter is equipped with an LCD display for clear real-time readings and uses an external sensor wire with an approximate length of 1.75 m for flexible installation. With an approximate weight of 66.5 g, the hour meter series is lightweight, portable, and easy to integrate into various equipment setups.
Engine Operating Condition Monitoring Functions
- Real-time RPM Tachometer Monitoring: Motorcycle hour meter continuously captures engine ignition signals to display real-time rotational speed, with a measuring range of 0–30000 RPM. It supports customizable adaptation for various engine stroke modes, including 2-stroke and 4-stroke, and can switch to time-only mode on demand.
- Total Running Time Recording: The DC hour meter automatically accumulates and records the total working hours of the engine. The maximum timing limit reaches 99999 hours with a precision of 0.1 hours, enabling clear statistics of total equipment operating hours.
Maintenance Management And Data Configuration Functions
- Customizable Maintenance Reminder: Users can preset maintenance service time ranging from 0–9999.9 hours on this motorcycle hour meter. When the set time is reached, the "SERVICE" text on the screen flashes to remind users of engine oil replacement and routine inspection. Buttons are available to adjust digit positions and increase/decrease the maintenance hour values flexibly.
- Data Reset And Hibernation Mode Setup: Tach hour meter supports a full reset of accumulated running hours and maintenance records, and users can enter hibernation mode to clear historical timing data during oil changes or equipment maintenance. The combined operation of the two buttons allows complete parameter configuration and all mode switching.
Applications
Universal motorcycle hour meter fits all gasoline machines equipped with spark plugs, widely applicable to garden power tools including lawn mowers, chainsaws, hedge trimmers and shredders, agricultural equipment like transplanters and weeders, road construction machinery such as rammers, polishers and pavement cutters, land recreational vehicles covering motorcycles, golf carts, go-karts and beach buggies, marine craft including motorboats and yachts, as well as all other gasoline-powered mechanical devices across various industries.

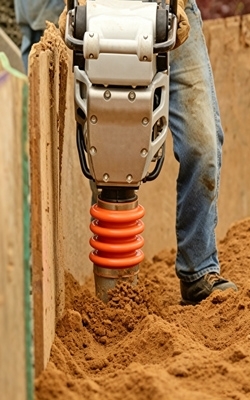

Tamping Machine
Beach Buggy
Hedgerow Machion
Off-Road Motorbike
| Model | SISCO-ZSB-01 | SISCO-ZSB-02 |

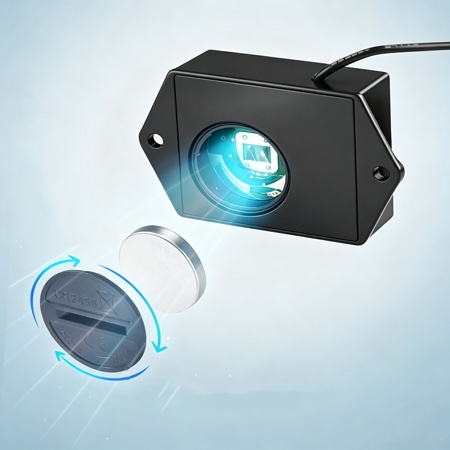

| Battery | Non-replaceable | Replaceable |
| Power Consumption | 0.00005–0.021 W | 0.00005–0.021 W |
| Waterproof Rating | IP65 | IP65 |
| Packaging Dimension | 73 × 73 × 48 mm | 73 × 73 × 48 mm |
| Weight Approx | 66.5 g | 66.5 g |
| Speed Range | 0–30,000 RPM | 0–30,000 RPM |
| Timing Range | 0–99,999 H | 0–99,999 H |
| Power Supply | DC 3 V | DC 3 V |
| Sensor Wire Length Approx | 1.75 m | 1.75 m |
| Display | LCD | LCD |
| Shell Material | ABS | ABS |

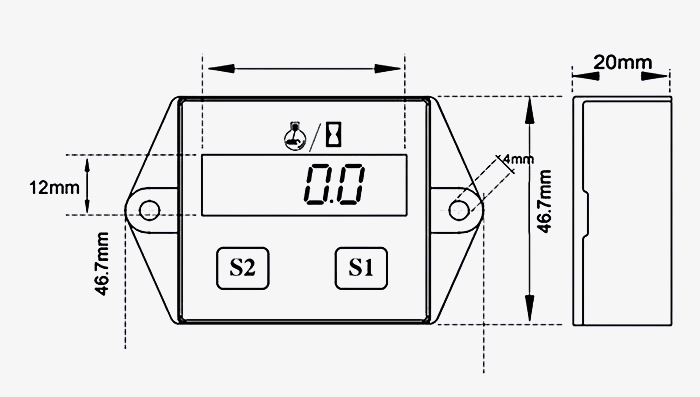

Dimension

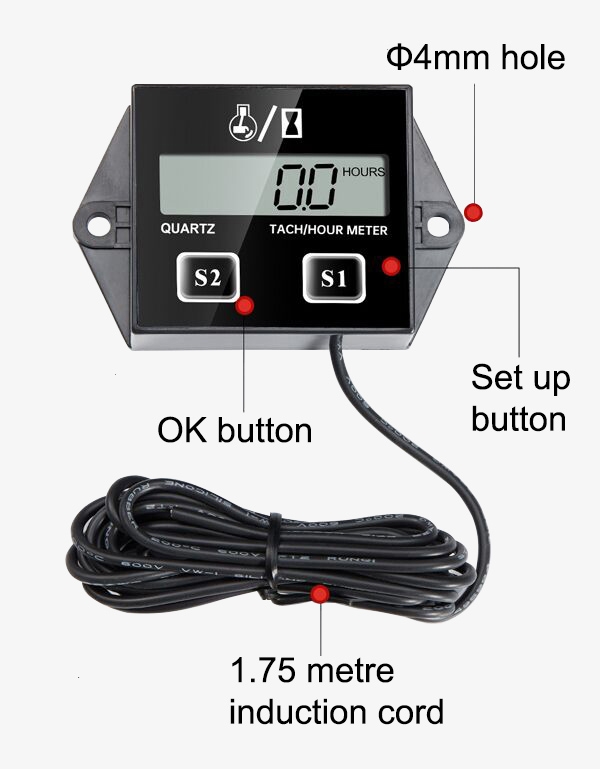

Details
Q1: What is a motorcycle hour meter?
A1: A motorcycle hour meter is a small device that records the total amount of time a motorcycle engine has been running. Instead of tracking distance like a speedometer, it measures engine operating hours. This helps riders and mechanics know exactly how long the engine has been used, which is important for scheduling maintenance such as oil changes, valve checks, and general servicing.
Q2: Can I set a maintenance reminder on this motorcycle hour meter?
A2: Yes. You can preset service time from 0–9999.9 hours. When the accumulated working hours reach your set maintenance cycle, the "SERVICE" text on the LCD screen will flash to remind you to replace engine oil or carry out a routine inspection.
Q3: Can a motorcycle hour meter be used to monitor engine performance?
A3: A motorcycle hour meter can partially help monitor engine performance when it includes a tachometer (RPM) function, as it allows real-time observation of engine speed and helps identify issues like unstable idle or abnormal RPM ranges, but its main purpose is to record total engine operating hours for maintenance scheduling, and it cannot measure key performance metrics such as horsepower, torque, fuel efficiency, or internal engine condition, so it should be considered a maintenance tracking tool rather than a full engine diagnostic device.
Tips: What is the benefit of using a motorcycle hour meter?
The main benefit of using a motorcycle hour meter is that it helps you track the exact running time of your engine so you can perform maintenance at the right intervals, such as oil changes, filter replacements, and inspections, based on actual usage rather than guesswork or mileage; this improves engine reliability, reduces the risk of wear and damage, extends engine lifespan, and ensures more consistent performance, especially for motorcycles, dirt bikes, ATVs, and other small engines used in varying conditions.
