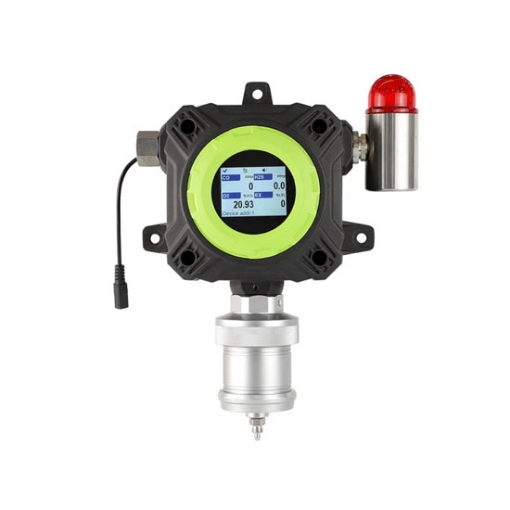

Carbon monoxide gas detector with detecting range 0-100/500/1000/2000 ppm for CO detection, output signal 4-20mA&RS485 for remote control. Fixed CO gas detector is a wall mounted instrument, which has sound and light alarm, real time display, 24 hours online for carbon dioxide leak monitor.

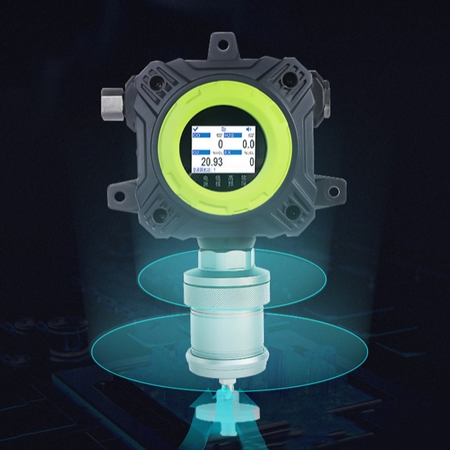

Built-in pump sampling for fast response time
- The fixed carbon monoxide gas detector with an internal suction pump, accurate in detection, sensitive, and fast in response.
- Data remains reliable even in strong magnetic areas such as tunnels, mines, and confined spaces.
- Explosion-proof design with dual-stage sound and light alarms; alarm points are adjustable.
- Fixed gas detector supports 24-hour real-time online monitoring of CO gas leaks.

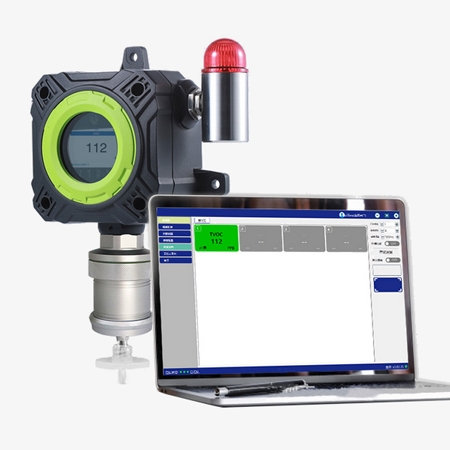

Auto verification & zero calibration
- Equipped with automatic verification and zero calibration functions for higher accuracy and reliability.
- SISCO carbon monoxide (CO) gas detector comes with a standard infrared remote controller for easy setting adjustments and maintenance.
- Optional pretreatment system available for cooling, dehumidifying, and dust removal to extend detector lifespan.
- 2.4-inch industrial-grade high-definition color screen provides clear and intuitive display of real-time readings.
Applications
Industrial Fixed Gas Detector is widely used in metallurgy, chemical and pharmaceutical industries, mining, and ship transportation to monitor toxic or combustible gases in real time. It is also suitable for applications in oil refineries, wastewater treatment plants, tunnel construction, and power stations, ensuring workplace safety and preventing gas leakage accidents.
Metallurgy
Mining
Ship Transport
Chemical Medicine
| Model | GD700-CO |
| Detection Principle | Electrochemistry |
| Gas | Carbon Monoxide (CO) |
| Range (Optional) | 0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm, 0 to 500ppm, 0 to 1000ppm, 0 to 2000ppm |
| Resolution | 0.01ppm (0-10/20/50ppm), 0.1ppm (0-100ppm), 1ppm (0-500/1000/2000ppm) |
| Calibration Kit | Gas pressure regulator (calibration gas cylinder NOT included) |
| Accuracy | ≤±3% F.S. |
| Response Time | ≤30s |
| Pump Flow Rate | 0.35~0.5 L/min |
| Communication and Data Download | With PC software, history data can be downloaded, stored, printed, and analyzed on a computer |
| Network Frequency | 2.4G high frequency |
| Zero Shift | ≤±1% (F.S./year) |
| Signal Output (Optional) | 4-20mA and RS485 |
| Relay output: one group of relay output (1NO, 24V 100mA) for one alarm (default) | |
| Alarms | Sound, light |
| Display | 2.4 inch color display, resolution 320*240 |
| Installation | Wall-mounted, piping type, flow-type (according to the detected environment) |
| Connection | G1/2 external thread explosion-proof flexible pipe |
| Thread Size | M45*2mm |
| Operating Time | 24h |
| Explosion-proof Grade | Ⅱ 2G Ex ia Ⅱ CT4 Ga |
| Protection Grade | IP66 |
| Certification | CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014) |
| Working Voltage | 12-36V DC |
| Case Material | Die-casting aluminum housing |
| Operating Temperature | -10℃~50℃ |
| Operating Humidity | 0~95%RH (non-condensing) |
| Dimension | 286*202*96mm (H x W x D) |
| Warranty | 12 months |
| Weight | 3.4kg (3.8kg with alarm light) |
| Accessories | Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug) |
Note: To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.
Gas Detector Catalog & User Manual
SISCO Gas Detector Catalogue- SISCO GD200 Portable Gas Detector User Manual
- SISCO GD300 Online Fixed Gas Detector User Manual
- SISCO GD400 Explosion Proof Portable Gas Detector User Manual
- SISCO GD500 Handheld Multi Gas Detector User Manual
- SISCO GD600 Multi Gas Analyzers User Manual
- SISCO Gas Detector Communication Protocol V1.0
- SISCO Single Stage Pressure Regulator User Manual
- SISCO Gas Detector Data Downloading Operation Instruction
- SISCO GD700 Industrial Fixed Detector User Manual
Q1: What is a fixed gas detector?
A1: The fixed gas detector is composed of sensors and transmitters, and is installed at the detection site. The secondary instrument consisting of circuit, power supply and display and alarm device is installed in a safe place, which is convenient for staff to monitor. In industrial installations and production processes, fixed gas detectors are generally used, because fixed gas detectors can be installed at specific detection points to detect specific gas leaks.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas (hydrogen), acetylene, pentane, alkynes, acetone, toluene, alcohols, hydrocarbons, light oil, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, oxygen, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: Difference between fixed gas detector and portable gas detector
A3: The biggest advantage of fixed gas detectors is 24-hour uninterrupted measurement. As long as the power is turned on, the fixed gas detector is in normal detection work. Portable gas detectors are usually used in confined spaces and confined spaces, but the gas environment in these spaces is usually very complex, and there will be situations such as lack of oxygen and high concentrations of harmful gases.
Tips: What are the available measuring ranges for the fixed carbon monoxide (CO) gas detector?
The fixed carbon monoxide (CO) Gas Detector offers multiple measuring ranges to meet different application needs, including 0–10 ppm, 0–20 ppm, 0–50 ppm, 0–100 ppm, 0–1000 ppm, 0–2000 ppm, and 0–5000 ppm. Lower ranges are ideal for environments requiring high precision and early CO leak detection, while higher ranges are suitable for industrial sites or confined spaces with potential for high CO concentrations.
