Designed for field inspection and maintenance applications, the laser methane gas detector offers excellent sensitivity, rapid response, and reliable performance in various environments. Its compact design allows technicians to easily carry out gas leak surveys in hard-to-reach areas, outdoor locations, and complex industrial sites. Widely used in natural gas distribution, oil and gas, chemical plants, and utility industries, this laser methane gas leak detection solution supports preventive maintenance, environmental safety, and efficient pipeline management.

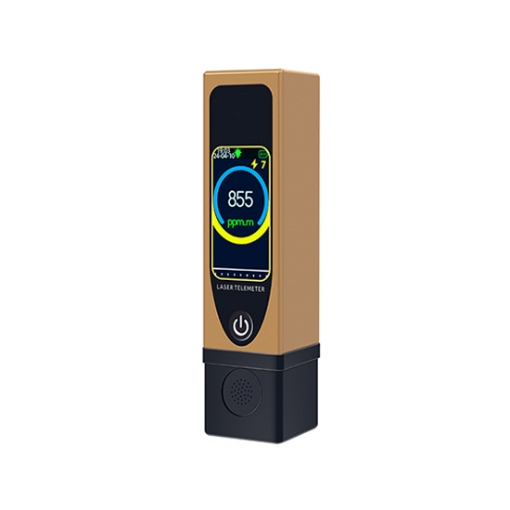

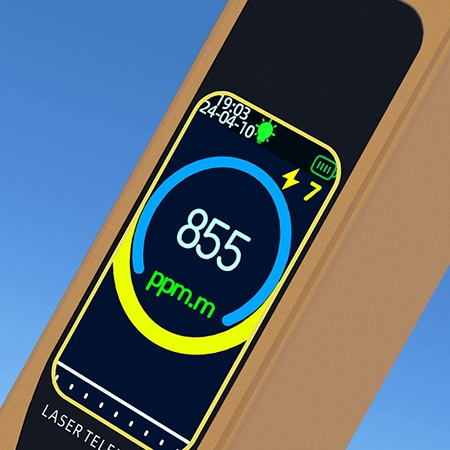

Laser Methane Detector with High-Definition Full-Color Display
- High-Definition Full-Color Display: SISCO laser methane equipped with a high-resolution full-color screen that delivers sharp, vivid visuals, ensuring excellent readability in both bright sunlight and low-light environments.
Real-Time Gas Concentration Monitoring: Provides instant, continuous display of methane (CHâ‚„) concentration levels with fast response time, enabling users to detect changes without delay.
Dynamic Data Visualization: Features intuitive graphical interfaces and clear numeric readouts, allowing users to quickly interpret gas concentration trends and status.
Multi-Parameter Display: Simultaneously shows gas concentration, detection status, battery level, and alarm indicators on one screen for enhanced operational efficiency.
Wide Viewing Angle Screen: The display remains clear and legible from different viewing angles, making it convenient for field inspections and team collaboration.

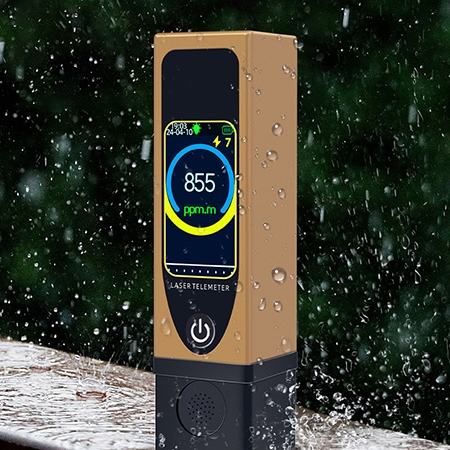

IP68 Waterproof Protection
- IP68 Waterproof Protection: This handheld laser methane gas detector designed with a high-level IP68 rating, the detector is fully protected against dust ingress and can withstand prolonged water immersion, ensuring reliable performance in harsh environments.
All-Weather Operation: Engineered to operate flawlessly in rain, snow, and high-humidity conditions, making it ideal for outdoor inspections and industrial fieldwork.
Durable Sealed Housing: The rugged, tightly sealed enclosure prevents water and moisture from entering the device, extending its lifespan and maintaining measurement accuracy.
Corrosion-Resistant Design: Built with high-quality, corrosion-resistant materials to withstand long-term exposure to moisture and harsh industrial surroundings.

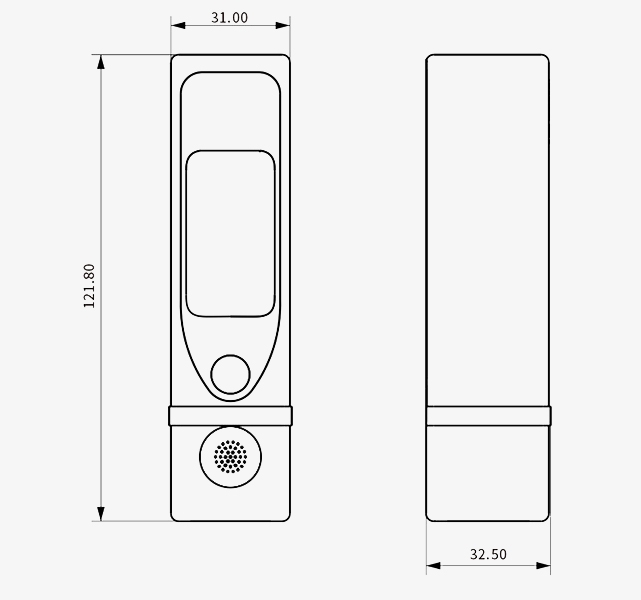

Dimension
Applications
SISCO laser methane detector is primarily used in oil and gas exploration, environmental monitoring, gas pipeline inspection, industrial safety, and emergency response. It helps in methane leak detection, ensuring workplace safety, and preventing environmental hazards in these sectors.
Industrial Safety
Gas Inspection
Environmental Safety
Oil & Gas
Â
| Model | SISCO-LGD-S350MS |
| Detection Range | 0 ~ 50,000 ppm·m (default, customizable) |
| Detection Distance | 0–15 m / 0–20 m / 0–30 m |
| Minimum Detection Limit | 5 ppm·m |
| Accuracy | ±10% FS |
| Response Time | 0.5 s |
| Continuous Working Time | 8 hours |
| Power Supply | Lithium battery |
| Display | 1.47-inch LCD |
| Alarm Volume | 70 dB (at 1 meter) |
| Explosion-Proof Certificate | CCRI 25.2220X |
| Explosion-Proof Marking | Ex ia IIC T4 Ga / Ex ia IIIC T200130°C Da |
| Protection Rating | IP68 |
| Operating Temperature | -20°C ~ 50°C |
| Operating Humidity | 10% ~ 93% RH (non-condensing) |
| Battery Voltage | DC 3.7 V |
| Battery Capacity | 3400 mAh |
| Dimensions | 122*32*32 mm |
| Weight | 220 g |
Q1: What is a laser methane gas detector?
A1: A laser methane gas detector is a device designed to detect methane gas leaks by using laser technology. It offers a non-contact, remote sensing method to accurately identify methane presence in the air from a safe distance.
Q2: How far can a laser methane gas detector detect leaks?
A2: The laser methane gas detectorcan detect methane leaks up to 150 meters (with customizable options for longer distances, such as 200 meters and beyond), making it ideal for large-scale inspections.
Q3: Is the Laser Methane Gas Detector safe to use?
A3: Yes, the laser methane gas detector is designed to be safe, with non-contact detection capabilities. It allows for remote monitoring of methane leaks, reducing the risk to personnel and ensuring safer working environments.
Tips: Can the laser methane gas leak detector detect leaks through obstacles?
