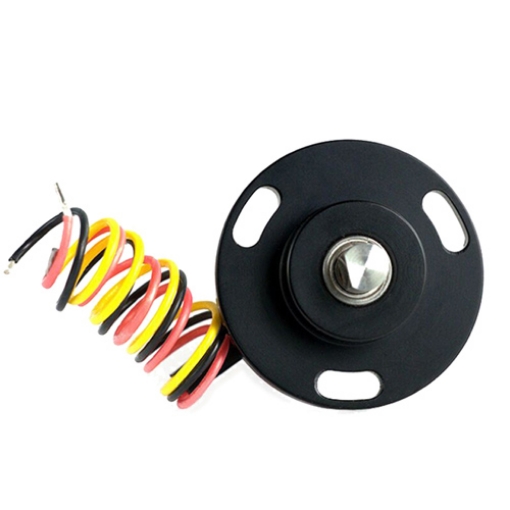

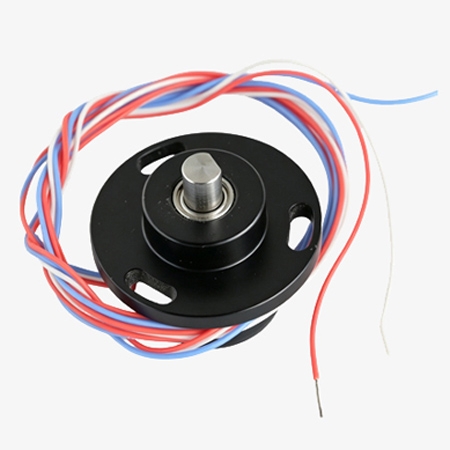

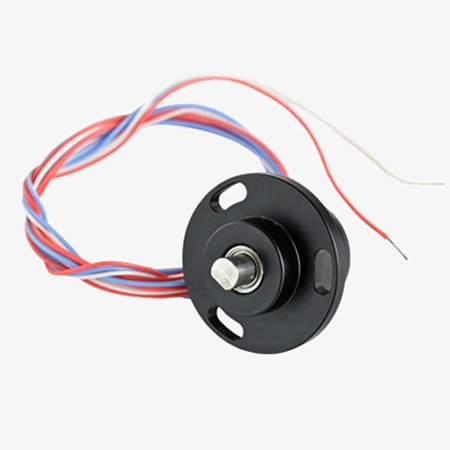

SISCO magnetic angle sensor provides continuous 360° rotary position feedback without a mechanical stop. With a standard update speed of 0.6ms, it can respond quickly to changing shaft positions in dynamic equipment. The 5V ±10% operating voltage supports integration with common electronic control systems. An anodized aluminum alloy housing provides a compact structure for motion-control equipment.
- 360° Continuous Angle Measurement: The magnetic angle sensor supports unlimited 360° free rotation and delivers smooth, continuous angle position feedback. Full-range rotary motion measurement is suitable for diverse industrial and automation applications.
- High-Resolution Angle Detection: Equipped with high-resolution sensing technology, it provides detailed angle detection with excellent linearity. Consistent measurement performance supports high-accuracy motion control applications.
- Fast Response for Dynamic Motion: Featuring a high-speed signal refresh rate, it quickly captures dynamic rotary changes and provides responsive real-time data. This makes magnetic angle sensor suitable for high-speed automated motion systems and dynamic equipment operation.
- Stable Analog Proportional Output: Operates with a standard 5V power supply and provides stable proportional analog signals for compatible signal acquisition circuits and control systems.
- Wide Temperature Range and IP40 Protection: Magnetic angle sensor supports stable operation across a wide temperature range and maintains consistent performance under changing working conditions. IP40 protection helps prevent the entry of solid particles larger than 1 mm, making it suitable for indoor and mild industrial environments.
- Low-Torque Rotation and Long Service Life: The low-torque rotary structure allows smooth shaft movement with minimal mechanical resistance. Non-contact magnetic sensing reduces wear in the sensing mechanism, supporting repeated rotary operation and long-term angle position feedback.
- Compact and Durable Construction: The lightweight structure simplifies installation in space-limited equipment. An anodized aluminum alloy housing and stainless steel shaft provide mechanical strength for demanding rotary applications.
Applications
This magnetic angle sensor delivers reliable rotary position measurement for a wide spectrum of industrial and precision equipment. It is widely deployed in robotic arms for motion feedback, textile machinery for spindle angle monitoring, construction machinery, hydraulic cylinder systems, material test benches, automotive test rigs and medical devices, offering stable angle sensing.
Construction Machinery
Automotive Testing
Textile Machinery
Robotic Arm
| Model | SISCO-AS-P3015F |
| Effective Electrical Angle | 360° |
| Resolution | 4096 (12-bit) |
| Independent Linearity Accuracy | Standard: 0.3%; Custom Precision: 0.15% |
| Update Speed | 0.6 ms (Standard) / 0.2 ms (Custom High-Speed) |
| Operating Voltage | 5V ± 10% |
| Output Signal | 0 ~ 5V (Ratio) |
| Operating Current | < 16 mA |
| Start/End Output Deviation | < 1% · VCC |
| Load Resistance | > 10 kΩ |
| Mechanical Rotation Angle | 360° (No Stop) |
| Protection Rating | IP40 |
| Operating Temperature | -30°C ~ +80°C |
| Storage Temperature | -30°C ~ +80°C |
| Rotating Torque | < 5 mN·m |
| Mechanical Life | > 1,000,000 turns |
| Weight | Approx. 20 g |
| Housing | Aluminum Alloy, Surface Anodized |
| Shaft | Stainless Steel |
| Electrical Terminal | Gold-Plated Brass Terminal |
| VCC | Power Supply Positive |
| OUT | Signal Output0–5V DC |
| GND | Common Negative |

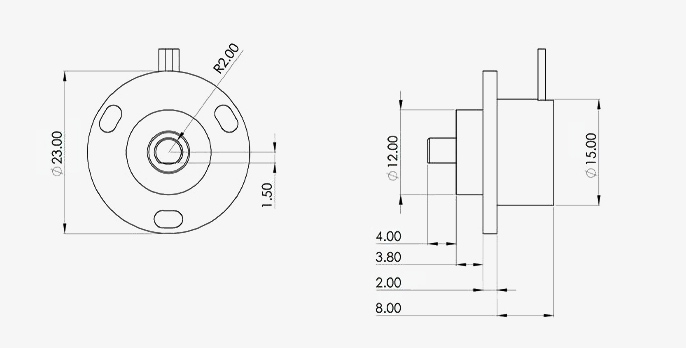

Dimensions (unit: mm)
Q1: Is this magnetic angle sensor suitable for robotic arms?
A1: Yes. This magnetic angle sensor is suitable for robotic arms that require rotary position feedback and continuous shaft angle measurement. A robotic arm uses the magnetic angle sensor for rotary joint position feedback. The sensor's continuous 360° measurement range and proportional analog output allow the controller to monitor the angular position of rotating mechanisms.
Q2: What is the measuring angle of this magnetic angle sensor?
A2: The magnetic angle sensor provides a 360° measuring angle for continuous full-circle rotary position measurement. It has a 360° effective electrical angle and supports 360° mechanical rotation with no stop, allowing continuous shaft-angle feedback across a complete revolution.
Q3: What operating voltage does the magnetic angle sensor require?
A3: This magnetic angle sensor requires a 5V ±10% DC operating voltage. This power supply supports the internal magnetic sensing electronics and provides a proportional 0–5V ratio output for compatible controllers, PLCs, and signal acquisition systems.
Tips: Does the magnetic angle sensor have mechanical contact during measurement?
No. The magnetic angle sensor uses non-contact magnetic sensing to detect shaft rotation and angular position without physical contact in the sensing element. This reduces sensing-element wear and supports smooth, continuous rotation for applications requiring frequent rotary position feedback.
