The mini laser meter integrates high-precision measurement with convenient multifunctional calculations. The switchable reference point function (front or back) allows for more flexible measurement starting points, adapting to various complex measurement environments and ensuring accurate results.
Spatial Multidimensional Measurement
- Measurement range up to 50 meters, measurement accuracy up to ±1.5mm (d*0.005%), supporting both single and continuous measurement modes.
- Breaking through the limitations of single-distance measurement, this device integrates area/perimeter measurement, volume measurement, and continuous area measurement functions. In area/perimeter measurement mode, it automatically calculates and displays the results after sequentially measuring length and width, fully adapting to spatial measurement needs.
- For scenarios where direct contact measurement is not possible, the device supports Pythagorean theorem measurement and double Pythagorean theorem measurement modes, solving complex measurement problems without additional auxiliary tools.
Multiple Units can be Freely Switched, Offering Convenient Operation
It can continuously measure and display maximum and minimum values, facilitating dynamic measurements. It can also store 50 sets of measurement data for easy review and comparison.- Adapting to different usage scenarios and user habits, the device supports switching between multiple units (M/ft/in/ft+in) via key combinations.

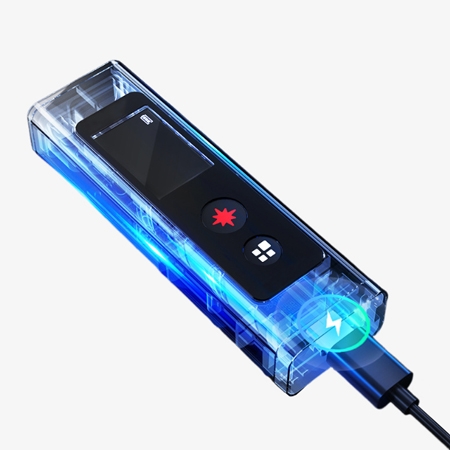

- Energy-saving mechanisms such as automatic laser shutdown after 30 seconds of inactivity and automatic power-off after 2 minutes of inactivity help extend battery life. Furthermore, a self-calibration mode is activated when the device is off.
Applications
A 3 in 1 laser distance meter is widely used in various industries due to its accuracy and ease of use. Common applications include construction, where it's used for measuring distances, heights, and areas quickly and accurately. In interior design and real estate, it helps assess room dimensions. Surveyors use it for site analysis and mapping.
House Surveying
Furniture Placement
Shelf Layout
Interior Design
| Model | SISCO-LDM-NF2716 |
| Range | 50m |
| Range Accuracy | ±1.5mm(d*0.005%) |
| Screen Type | VA display |
| Laser Type | 620~670nm, <1mw |
| Laser Level | Class ll |
| Laser Off | No operation for 30 seconds |
| Automatic Shutdown | No operation for 2 minutes |
| Unit Switch | M/ft/in/ft+in |
| Benchmark Switch | Frontlend benchmark |
| Review Records | 50 groups |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -20℃~60℃ |
| Battery Type | 320mAh lithium battery |
| Dimension | 98mm×30mm×19mm |

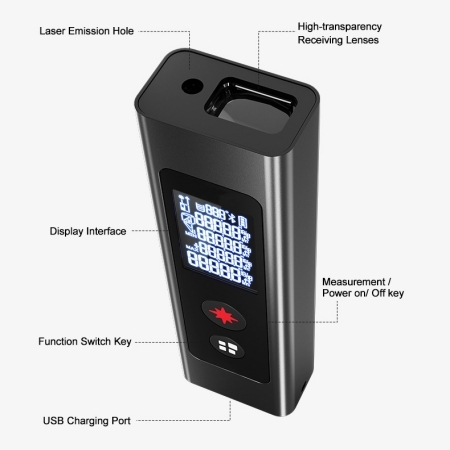

Structural Diagram
Q1: What is a 3 in 1 laser distance meter?
A1: A laser distance meter is a handheld device used to measure distances accurately using a laser beam. Laser distance meters are widely used in construction, real estate, interior design, and surveying due to their speed, precision, and ease of use. This 3 in 1 laser meter not only can measure distance, but also measure angle, area, and volume.
Q2: What is the maximum range of 3 in 1 laser distance meter?
A2: The maximum range of a 3 in 1 laser distance meter typically depends on the model. This kind of electronic distance meter can measure distances up to around 40-80 meters accurately (0.05-40/60/80m can be selected). Environmental factors, such as obstacles, noise, and the surface of the target, can affect the maximum range.
Q3: Does a 3 in 1 laser distance meter work outdoors?
A3: No. This 3 in 1 laser distance meter can only be used for indoor applications. In construction and interior design, this kind of portable laser distance meter used for measuring room dimensions, ceiling heights, and verifying wall alignments. It is also helpful in furniture layout planning, ensuring proper spacing between items.
Tips: What precautions should be taken when using the Laser Distance Meter for indoor measurements?
When using a laser distance meter indoors, the following precautions should be taken: Avoid shining the laser into the eyes and onto highly reflective surfaces; avoid strong light environments and extreme temperatures; choose a measurement target with good reflectivity to avoid signal abnormalities; before measurement, switch the front and rear reference points according to the holding method, and switch the appropriate unit using the key combination as needed; follow the standard operating procedures to avoid calculation errors, and address low battery issues promptly.
