Cheap price digital particle counter with industrial-grade laser which provides high reliability and long-lasting performance. The default unit is pcs/m³, with options to switch to pcs/L or pcs/ft³. Measurement errors comply with the JJF 1190 standard. This laser particle counter features Fengkong Instrument’s unique dust source intelligent recognition module and a stable-flow air pump, ensuring precise and reliable measurements.

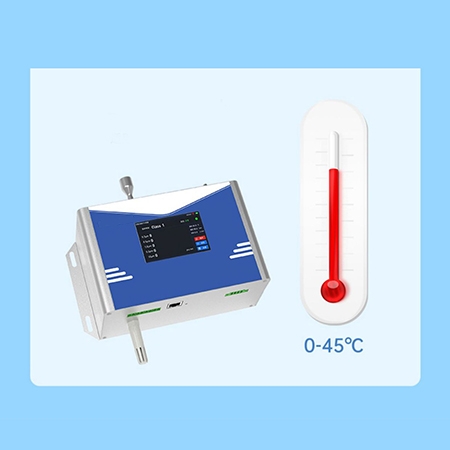

Wide Operating Temperature Range for Various On-Site Temperature Requirements
- Stable Performance Across Extreme Conditions: Engineered to operate reliably in both low and high temperature environments, the Online Remote Particle Counter maintains consistent detection accuracy without performance degradation caused by temperature fluctuations.
- Suitable for Diverse Installation Environments: Whether installed in temperature-controlled cleanrooms, industrial production workshops, or semi-outdoor monitoring stations, the device adapts easily to varying environmental conditions.Temperature-Resistant Internal Design: High-quality electronic components and optimized thermal management design help minimize measurement drift and ensure long-term stability under continuous operation.
- Reliable 24/7 Continuous Monitoring: The wide operating temperature capability supports uninterrupted real-time particle monitoring, reducing the risk of system shutdowns in environments with seasonal or operational temperature variations.

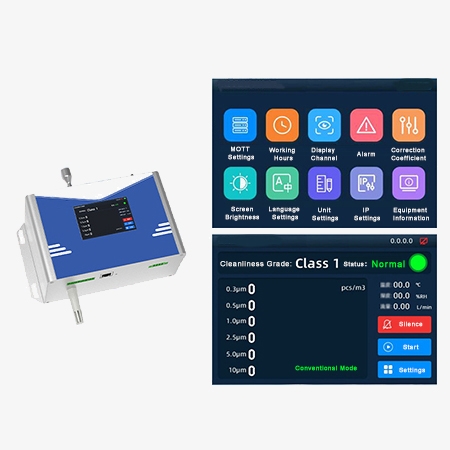

3.5-inch High-Definition Human-Machine Interface Color Screen
- Clear & Intuitive Data Display: The 3.5-inch HD color screen provides sharp visuals and high contrast, allowing users to clearly view particle concentration, channel data, alarm status, and system parameters at a glance.
- User-Friendly Human-Machine Interface (HMI): Designed with an intuitive graphical interface, the interactive touchscreen simplifies operation, enabling quick parameter setting, calibration, and data review without complex procedures.
- Real-Time Monitoring Visualization: Supports real-time data updates with dynamic display of particle counts, making on-site monitoring more efficient and reducing response time to abnormal conditions.
- Enhanced Visibility in Various Lighting Conditions: The high-brightness color display ensures clear readability even in low-light industrial environments, improving operational convenience.
Applications
The particle counter is a precision instrument used to measure the number and size distribution of suspended particles in the air. The application of particle counters not only improves production efficiency and product quality, but also helps to protect the health and safety of workers, and also plays a positive role in environmental protection. It has a wide range of applications in many fields.
Dust Free Workshop
Epidemic Prevention Station
Laboratory
Clean Room
| Model | SISCO-PC-DPC100X |
| Detection Principle | Laser Scattering Principle |
| Particle Size Range | 0.3 ~ 10 μm |
| Number of Channels | Six channels (0.3μm, 0.5μm, 1.0μm, 2.5μm, 5μm, 10μm) |
| Counting Efficiency | 50% @ 0.3 μm; 100% @ ≥0.5 μm (Referenced to TSI 9306); Test Condition: 25±2°C, 50±10% RH |
| Power-On Stabilization Time | ≤ 8 seconds |
| Data Refresh Rate | 1 second |
| Operating Temperature | 0°C ~ 45°C |
| Operating Humidity | 0 ~ 95% RH (Non-condensing) |
| Storage Temperature | -20°C ~ 60°C |
| Storage Humidity | 0 ~ 95% RH (Non-condensing) |
| Working Voltage | DC 12–24V |
| Average Working Current | ≤ 1A |
| Communication Interfaces | RS485 (Standard)RJ45 (Standard)4–20mA Analog Output (Standard) |
| Product Lifetime | ≥ 3 Years |
| Sampling Flow Rate | 2.83 L/min |
| Display | 3.5-inch Color Screen |
| Alarm (Optional) | LED Flash AlarmAudible AlarmSound Level: 110 dBProtection Level: IP44Alarm Cont |
Q1: How to use the handheld particle counter?
A1: The particle counter is simple to use, first determine the number of test points according to the area of the clean room and distribute the test points evenly in the clean room, then set the measurement time, measurement unit, flow rate, and other parameters of the particle counter, then put the particle counter on the plane of 1~1.2 meters height from the ground in the middle of the sampling point, and finally start to test the sampling and record the data one by one.
Q2: How to change the printing paper of the particle counter?
A2: Generally, the printing part of the particle counter has a cover, some covers can be lifted directly to cover, lift it to replace the printing paper, and some need to use a screwdriver to unscrew the screw, the specific instructions are also introduced, open the cover to follow the thermal printing paper can be replaced.
Q3: How to read the dust particle counter?
A3: The results of the dust particle counter, generally the left column is the particle diameter, and the right column is the number of particles per cubic meter.
Tips: What is the working principle of the online remote particle counter?
The online remote particle counter works based on the laser scattering principle. When air is drawn into the device, particles pass through a laser beam inside the sensor chamber. As each particle crosses the laser, it scatters light.
A built-in photodetector captures the scattered light signal and converts it into electrical pulses. The intensity of the scattered light corresponds to the particle size, allowing the device to accurately classify and count particles within different size channels.
This technology ensures fast response, high sensitivity (down to 0.3μm), and reliable real-time monitoring for cleanroom and industrial air quality applications.
