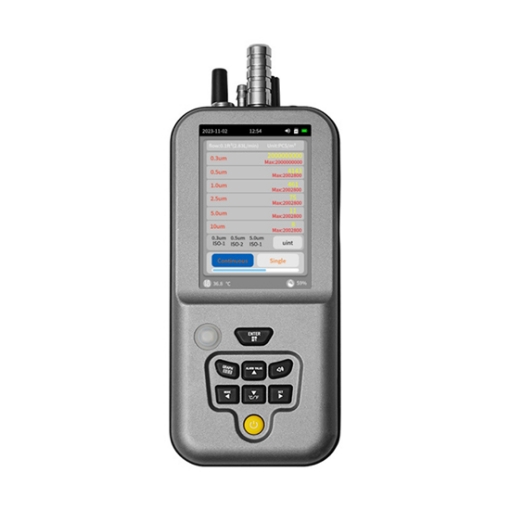

This handheld digital particle counter uses advanced optical sensing technology to detect multiple particle sizes simultaneously. With coverage from 0.3 μm to 10 μm, it provides reliable particle count data for contamination control, clean room validation, and indoor air quality monitoring.
High-Precision Multi-Size Detection
- This air particle counter measures particle counts and mass concentrations at 0.3 µm, 0.5 µm, 1.0 µm, 2.5 µm, 5.0 µm, and 10 µm, making it suitable for Class 100 cleanrooms and lower cleanliness level environments.

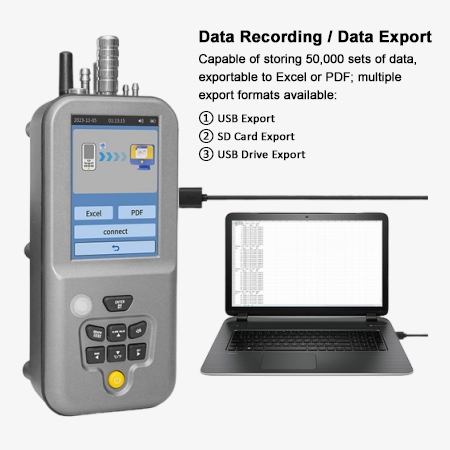

- The air particle counter can store up to 50,000 sets of measurement data, which can be exported in Excel or PDF format for easy analysis and reporting.
- Supports flexible data export via USB cable, SD card, or USB flash drive, ensuring convenient data transfer and backup.
- Built-in buzzer and LED alarms provide immediate alerts when particle levels exceed preset thresholds.
WiFi Connectivity for Remote Monitoring
- With WiFi connection, this air particle counter enables real-time remote monitoring of particle concentration values.
- Equipped with a responsive touchscreen interface for easy setup, monitoring, and parameter adjustment.
- Supports wired screen mirroring, allowing users to freely select and display required measurement parameters on an external screen.
- The handheld particle counter features a compact and lightweight design, ensuring convenient operation for on-site and mobile testing applications.
Applications
The particle counter is a precision instrument used to measure the number and size distribution of suspended particles in the air. The application of particle counters not only improves production efficiency and product quality, but also helps to protect the health and safety of workers, and also plays a positive role in environmental protection. It has a wide range of applications in many fields.
Dust Free Workshop
Epidemic Prevention Station
Laboratory
Clean Room
| Model | SISCO-PC-HZ011C |
| Particle Size Channels | 0.3, 0.5, 1.0, 2.5, 5.0, 10 μm |
| PM 2.5 Measurement Range | 0–1000 μg/m³ |
| PM 2.5 Accuracy | 0–100 μg/m³: ±10 μg/m³, 100–1000 μg/m³: ±10% |
| Concentration Resolution | 1 μg/m³ |
| Particle Count Output Range | ≤2,000,000 pcs/L, ≤2,000,000,000 pcs/m³ |
| Flow Rate | 0.1 ft³ (2.83 L/min) |
| Cleanliness Standard | Complies with ISO 14644-1, ISO Class 5–ISO Class 9 |
| Response Time | 1 s |
| Warm-up Time | 10 s |
| Temperature Measurement Range | -10 to 60 °C |
| Temperature Accuracy | ±2 °C |
| Temperature Resolution | 0.01 °C |
| Humidity Measurement Range | 0–100 %RH |
| Humidity Accuracy | ±3 %RH |
| Humidity Resolution | 0.01 %RH |
| Power Supply | 3.7 V removable 18650 lithium Battery×3 |
| Charging Voltage | 5V/USB |
| Data Storage | 5000 records (customizable) |
| Net Weight | 1000g |
| Product Dimensions | 231x88x56 mm |
| Package Weight | 2000g |
| Package Dimensions | 275x225x97 mm |
Details
Q1: How to use the handheld particle counter?
A1: The particle counter is simple to use, first determine the number of test points according to the area of the clean room and distribute the test points evenly in the clean room, then set the measurement time, measurement unit, flow rate, and other parameters of the particle counter, then put the particle counter on the plane of 1~1.2 meters height from the ground in the middle of the sampling point, and finally start to test the sampling and record the data one by one.
Q2: How to change the printing paper of the particle counter?
A2: Generally, the printing part of the particle counter has a cover, some covers can be lifted directly to cover, lift it to replace the printing paper, and some need to use a screwdriver to unscrew the screw, the specific instructions are also introduced, open the cover to follow the thermal printing paper can be replaced.
Q3: How to read the dust particle counter?
A3: The results of the dust particle counter, generally the left column is the particle diameter, and the right column is the number of particles per cubic meter.
Tips: Why does the portable air particle counter show different particle sizes?
The portable Air Particle Counter shows different particle sizes because the air contains many types of particles, from very tiny ones to larger dust particles. By separating them into different size ranges, the device helps you understand how many small and large particles are in the air, since smaller particles are usually more common and can stay in the air longer.
