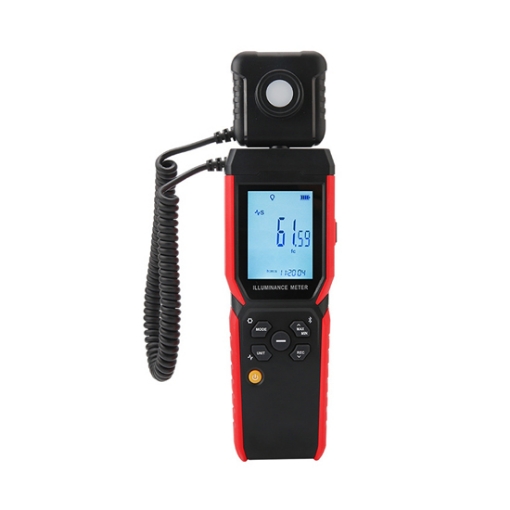

Portable lux light meter for sale, providing accurate readings of light intensity in lux. SISCO lux light meter allows communication with a PC for real-time storage and analysis, printing and saving of data.
- The illuminance meter supports Bluetooth connectivity for displaying real-time measurement data and dynamic trend curves on the mobile APP. Easily monitor illumination changes and improve data analysis efficiency.ssing efficiency in taller or tighter measurement environments.
- The digital lux light meter features a wide illumination measurement range from 0 lx up to 400000 lx, making it suitable for low-light environments as well as high-intensity lighting applications.
- The digital lux light meter is calibrated using coated filter technology and a special light source method to ensure fast and accurate results and save time.
- The digital lux light meter comes with a large backlit LCD display, a switchable illuminance unit, lux/footcandles for easy viewing of data for users with different needs, and a maximum and minimum value display, providing a rich and intuitive reading experience.
Application
Lux meters are widely used for light monitoring and measurement in lighting enterprises, agriculture and livestock, industry and mining, laboratories, offices, medical institutions, home applications, street lighting construction and other industries.
| Model | SISCO-LM-UT382A |
| Measuring Range | 0–400,000 lx |
| Resolution | 0–99.99 lx (99.99 fc): 0.01 lx (0.01 fc) |
| 100–999.9 lx (999.9 fc): 0.1 lx (0.1 fc) | |
| 1,000–400,000 lx (37,160 fc): 1 lx (1 fc) | |
| Accuracy | ±3% at 2856K (calibrated against standard light source) |
| Measurement Accuracy | Class 1 |
| Unit Switching | lx, fc |
| Auto Range Switching | √ |
| Sampling Rate Switching | √ |
| Countdown Measurement | √ |
| Difference Measurement | √ |
| Integral Illuminance/Average Integral Illuminance Measurement | √ |
| Luminous Intensity Measurement | √ |
| Max/Min/Average Value | √ |
| Data Hold | √ |
| Color Correction Coefficient (CCF) | √ |
| Mobile APP | IENV |
| Data Recording | 999 groups |
| Recording Interval | 1 to 59 seconds |
| Probe Measurement Mode | Integrated (rotatable), Split-type |
| Real Time | Manual setting or auto-sync via mobile APP |
| Over-range Alert | Display "OL", buzzer prompt |
| Low Battery Alert | Low battery icon flashes; buzzer prompts after 10S; auto-shutdown |
| Auto Backlight | After power-on, backlight auto-activates below 100 lx in non-measurement mode; press power button to toggle backlight manually after shutdown |
| Auto Power-off | Auto-shutdown after 10 minutes of inactivity; can be canceled |
| Battery | AAA × 3 |
| Battery Life | >100 hours (alkaline battery, backlight & Bluetooth disabled) |
| Operating Temp/Humidity | -10℃ to 50℃, ≤90% RH (non-condensing) |
| Storage Temp/Humidity | -20℃ to 70℃, ≤80% RH (non-condensing) |
| Dimensions | 235 × 64.5 × 40 mm |
| Weight | Approx. 261g (without battery) |

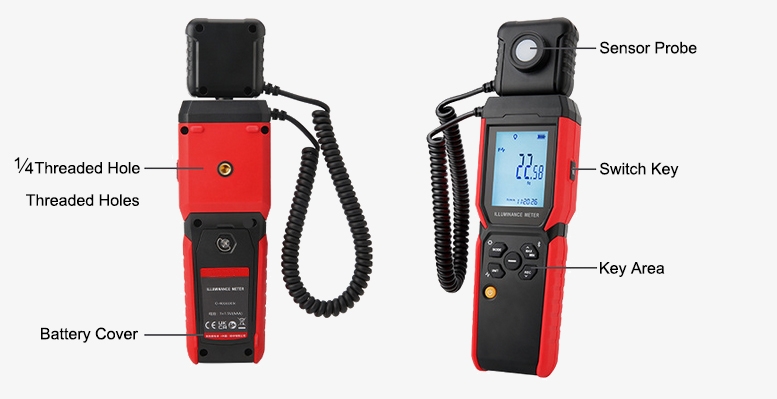

Details
Q1: What is a lux meter and how does it work?
A1: A lux meter, also known as an illuminance meter, is a device used to measure the amount of light falling on a surface. It works by using a photodiode or photovoltaic cell to convert light energy into an electrical signal, which is then processed and displayed as a reading in lux units.
Q2: What are some common applications of lux meters?
A2: Lux meters are commonly used in a variety of industries and settings, including photography, film production, architecture, and interior design. They are also used in industrial settings to ensure proper lighting levels for worker safety and productivity.
Q3: How to calibrate a lux meter?
A3: Calibrating a lux meter typically involves comparing its readings to a known standard light source of a specific brightness level. This can be done using a calibration light box or similar device, and the process may vary depending on the specific type and model of the lux meter being used. It is generally recommended to have a lux meter professionally calibrated on a regular basis to ensure accuracy.
Tips: What does a lux meter do?
A lux meter, also known as a light meter, is a device that measures the amount of light or illuminance in a particular area. It is commonly used in photography, cinematography, and lighting design to ensure that the lighting conditions are appropriate for the intended purpose.
Lux meters can be used to measure the illuminance of natural light, as well as artificial light sources such as light bulbs, fluorescent tubes, and LED lights. They are useful for ensuring that lighting conditions are consistent across a particular space, and for measuring the intensity of light in specific areas for safety or other practical purposes.
