The SISCO 80 GHz radar level sensor features advanced non-contact radar technology, enabling accurate liquid level measurement without touching the medium. Unlike contact-type sensors, it is not affected by water quality, corrosion, sediment, foam, or mechanical wear, making installation and maintenance easier. With a wide measuring range of 0-35m, high accuracy, and excellent stability, this non-contact radar level sensor delivers reliable continuous level monitoring in reservoirs, rivers, tanks, wastewater treatment facilities, and other demanding industrial environments.
High-precision Measurement and Extreme Environment Adaptability
- The 80GHz radar level transmitter features high-frequency radar technology with a measuring range up to 120m, providing accurate and reliable water level measurement for reservoirs, rivers, dams, and other large-scale water monitoring applications.
- The radar level transmitter measures water levels by transmitting microwave signals and analyzing reflected echoes from the surface. It delivers fast response, low measurement error, and continuous real-time level data.
- The radar water level sensor uses non-contact measurement, eliminating direct contact with water. This design prevents interference from mud, sediment, aquatic plants, and water flow impact, ensuring stable performance and a longer service life in harsh environments.
Long-distance Monitoring helps Water Management
- The 80GHz radar level transmitter is easy to install and operate. With simple setup and commissioning, it provides reliable non-contact level measurement while reducing installation costs and maintenance requirements.
- The radar level transmitter delivers accurate level measurement in extreme conditions, including high temperature, heavy rain, dust, and corrosive environments. It is ideal for industrial level measurement and water monitoring applications.
- The 80GHz radar level sensor supports long-distance measurement up to tens or hundreds of meters, making it suitable for reservoir water level monitoring, river level measurement, dam monitoring, and flood warning systems.
Applications
This radar level sensor features powerful environmental adaptability and wide applicability to complex working conditions. It can stably perform level measurement amid heavy dust interference, sewage foam, highly corrosive liquids, ultra-high-temperature environments, interference from steam and oil adhesion, as well as stirring turbulence, covering chemical, wastewater treatment, metallurgy, and many other industrial scenarios.
Sewage Foam
Highly Corrosive Liquid
Ultra High Temperature
Heavy Dust Interference
Â
| Model | SISCO-RLT-GSSM0380G |
| Style | Stainless steel threaded 1.5 inch/ PTFE lens flange conventional |
| Frequency Range | 76~81GHZ |
| Application Range | High temperature environment, highly corrosive liquid, stirring, and water vapor condensation. |
| Measurement Range | 0~35m |
| Process Connection | Bracket, Flange |
| Medium Temperature | -40~120℃ |
| Process Pressure | -0.1~4Mpa |
| Measurement Accuracy | ±1mm |
| Protection Level | IP65 |
| Emission Angle | ≤3° |
| Explosion-proof Level | Exia II CT6 Ga |
| Housing Material | Cast aluminum/Stainless steel |
| Signal Output | 4~20mA/HART (2-wire/4-wire)RS485/Bluetooth |
Â

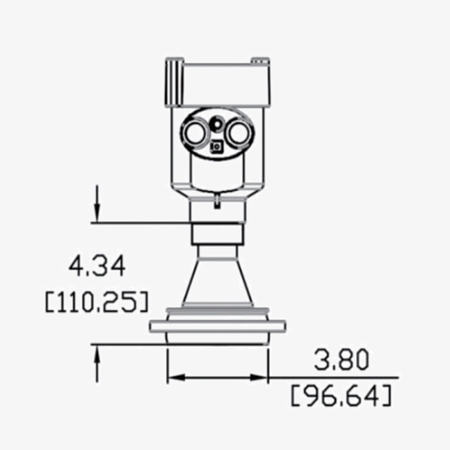

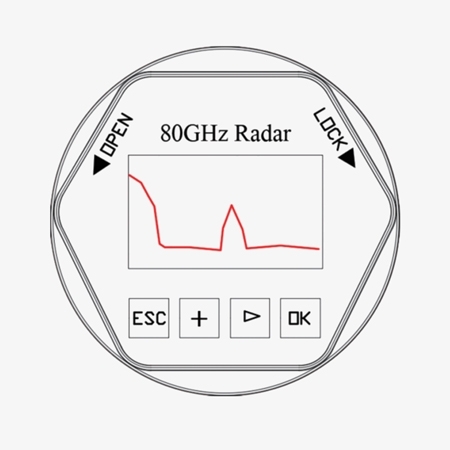

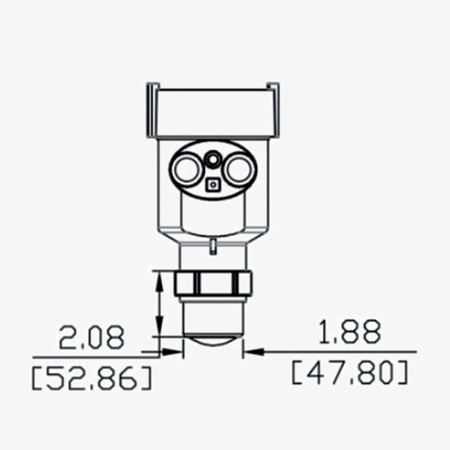

Structure Diagram
Q1: What are the advantages of a 80 GHz radar level transmitter?
A1: A Â 80 GHz radar level transmitter offers several benefits, including high measurement accuracy, a narrow beam angle for reduced interference, non-contact operation, low maintenance, and reliable performance in outdoor environments. It is also factory calibrated, making installation and commissioning quick and straightforward.
Q2: Can the radar level transmitter be used outdoors?
A2: Yes. These models feature an IP65-rated enclosure, providing excellent protection against dust, rain, moisture, and other harsh environmental conditions. This makes them suitable for outdoor tanks, water treatment facilities, and industrial storage systems.
Q3:Â What is a radar level transmitter?
A3: A radar level transmitter is a non-contact level measurement device that uses microwave radar signals to accurately measure the distance between the sensor and the material surface. It is widely used for water level monitoring, liquid level measurement, and industrial storage tank applications due to its high accuracy and reliable performance.
Tips:Â Where can a radar level transmitter be used?
A radar level transmitter is suitable for a wide range of applications, including reservoir water level monitoring, river level measurement, wastewater treatment, chemical tanks, storage tanks, and flood warning systems. Its non-contact design ensures stable and maintenance-free operation even in demanding environments.
