Discover the radar level sensor for accurate, non-contact liquid level measurement in industrial applications. Featuring 57–64 GHz radar technology, optional 5–15 m measuring ranges, Bluetooth wireless communication, RS485 Modbus-RTU interface, IP68 protection, thread connection, and flexible 2-wire or 4-wire power supply, it ensures reliable and stable level monitoring.
Core Hardware & Measuring Performance
- Precise Detection with Narrow Beam Angle: The 60 GHz radar level transmitter features a mere 6° beam angle for outstanding energy concentration and focused signal output. It delivers strong anti-interference performance and enables stable level measurement of clean liquid media.
- Ultra-Short Dead Zone Design: The dead zone of the radar level sensor is limited to ≤0.15 m, which fully covers low liquid levels at the tank bottom without blind measuring areas, realizing valid data acquisition across the full measuring range.
- High-Accuracy & Stable Measurement: Adopts a high-resolution measuring solution for the radar level meter. The accuracy reaches ±5 mm for 5 m / 10 m measuring ranges, and ±0.1% F.S. for the 15 m range, ensuring tiny measuring errors and reliable data output.
- No On-Site Calibration Required: The radar level sensor is fully calibrated before delivery. No repeated debugging is needed after equipment installation, greatly shortening construction and commissioning cycles.
Intelligent Communication & Harsh Environment Adaptability
- Standard Built-In Bluetooth Wireless Communication: The radar level meter comes with integrated Bluetooth transmission. Operators can check engine oil level data in real time via mobile phones for remote monitoring, reducing on-site manual inspections and cutting labor costs.
- IP68 High Protection Grade: The whole radar level sensor unit features IP68 dustproof and waterproof performance, immune to harsh conditions including light, rain, snow, dust, and water mist. It supports long-term stable operation in humid and dusty working conditions such as oil storage tanks of auto 4S shops.
- Optimized for Clean Liquid Working Conditions: The radar level transmitter is specially designed for level monitoring of clean liquids like engine oil. It adopts a simple thread mounting structure and can be matched with paperless recorders and electromagnetic flowmeters as a complete set, allowing one-stop construction of a full monitoring system.
Applications
The 60 GHz radar level transmitter is designed for continuous, non-contact level measurement of various relatively clean liquids, including water, lubricating oil, hydraulic oil, diesel, light chemicals, and other low-viscosity media.
Hydraulic Oil
Engine Oil
Water
Lubricating Oil
| Model | SISCO-RLT-FK-WSR201 |
| Measured Medium | Liquid only |
| Measuring Range | 0~15 m (5m / 10m / 15m optional) |
| Dead Zone | ≤ 0.15 m |
| Transmitting Frequency | 57GHz ~ 64GHz |
| Beam Angle | 6° |
| Current Signal | 0-20mA |
| Mounting Type | Thread connection |
| Accuracy | ±5 mm (for 5m / 10m range); ±0.1% F.S. (for 15m range) |
| Communication Output | RS485 interface, Modbus-RTU protocol |
| Wireless Communication | Bluetooth (supported) |
| Power Supply |
2-Wire System: 18~36 VDC 4-Wire System: 9~36 VDC |
| Protection Grade | IP68 |
| Application Scenarios | Various relatively clean liquids |

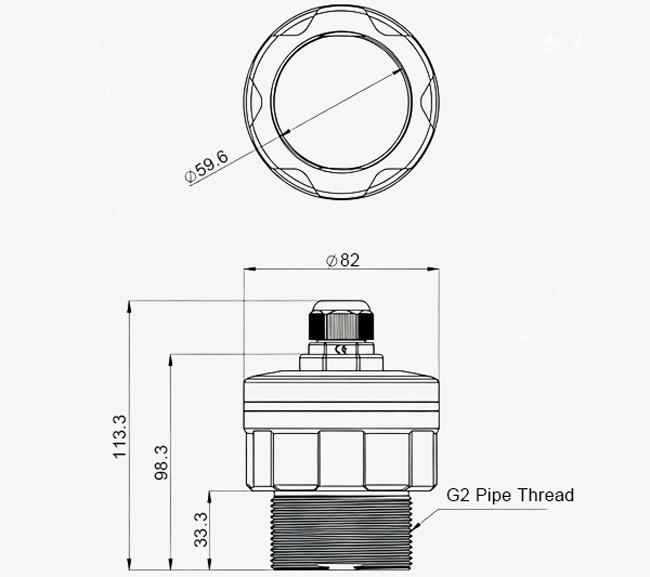

Dimension(unit: mm)
Q1: What are the advantages of a 60 GHz radar level transmitter?
A1: A 60 GHz radar level transmitter offers several benefits, including high measurement accuracy, a narrow beam angle for reduced interference, non-contact operation, low maintenance, and reliable performance in outdoor environments. It is also factory calibrated, making installation and commissioning quick and straightforward.
Q2: Can the 60 GHz radar level transmitter be used outdoors?
A2: Yes. These models feature an IP68-rated enclosure, providing excellent protection against dust, rain, moisture, and other harsh environmental conditions. This makes them suitable for outdoor tanks, water treatment facilities, and industrial storage systems.
Q3: Does the transmitter support wireless communication?
A3: These 60 GHz radar level transmitters include built-in Bluetooth connectivity, allowing users to configure the device, monitor liquid levels, and perform diagnostics using a smartphone or tablet. Wireless access simplifies commissioning and reduces the need for on-site inspections.
Tips: What is the difference between a 60 GHz and an 80 GHz radar level transmitter?
Both technologies provide non-contact level measurement, but they are designed for different applications. A 60 GHz radar level transmitter is an excellent choice for measuring relatively clean liquids in standard industrial tanks, offering high accuracy and cost-effective performance. An 80 GHz radar level transmitter generally provides a narrower beam angle and higher precision, making it better suited for complex installations with internal obstacles, narrow tanks, or applications involving dust, vapor, or foam.
