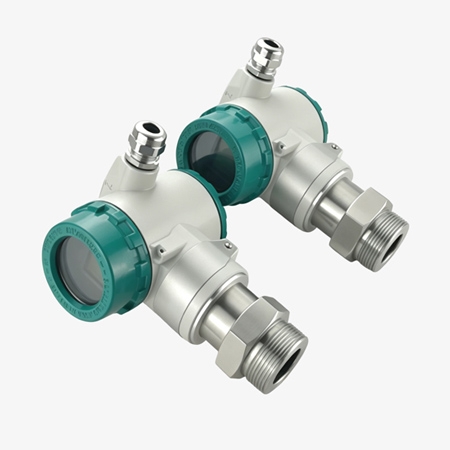

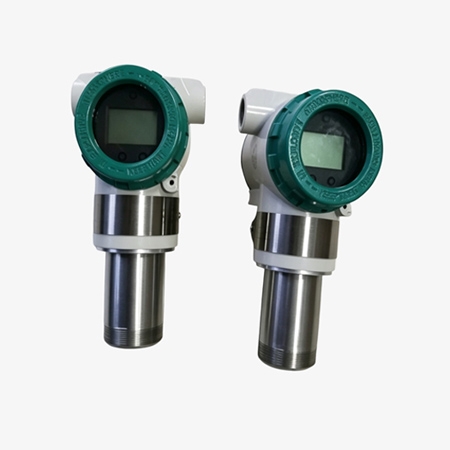

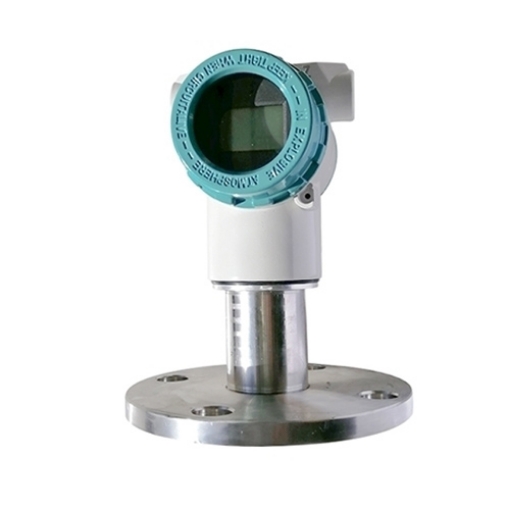

SISCO radar level sensor provides reliable non-contact liquid level measurement with a 70 m measuring range, ±1 cm accuracy, and 1 mm resolution. Built for industrial environments, it features 4–20 mA analog output, 304/316 stainless steel construction, IP67 protection, and stable operation under -98 kPa to 2 MPa pressure and -30°C to 150°C temperatures, making it ideal for tanks, process vessels, and liquid storage applications.
Excellent Working Condition Adaptability
- Equipped with an ultra-small blind zone structure, this radar liquid level transmitter delivers stable detection in pools, channels and other scenarios with shallow water levels without detection failure, fully meeting all shallow-level monitoring demands.
- Compatible with various pressure environments. Smooth operation is available in open, uncovered pools and pressurized, sealed liquid storage tanks, without limitations, only for atmospheric pressure scenarios.
- Boasting outstanding temperature tolerance, consistent round-the-clock liquid level monitoring can be maintained in freezing open outdoor areas and year-round high-temperature industrial workshops.
Durable Body & Superior Protection Performance
- The housing of the radar level sensor adopts professional stainless steel with reliable wear resistance, rust resistance, and corrosion resistance. No erosion or damage occurs during operation amid complex media, including impurity-containing sewage and various chemical storage liquids.
- Full equipment features high-standard dustproof and waterproof performance. Long-term stable operation is supported in harsh working conditions full of moisture and dust, such as open-air factories, damp underground wells, and outdoor river channels, greatly extending overall service life.
Applications
Capable of multi-industry measurement, the radar level meter measures liquid levels for chemical, pharmaceutical, printing and power facilities, monitors reservoir water levels, and detects powder levels in cement and coal silos, operating reliably with corrosive media, dust and outdoor environments.

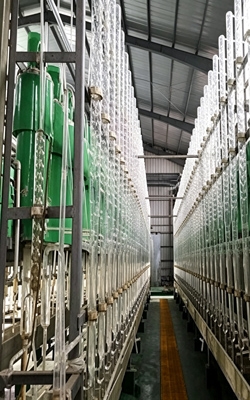

Chemical Tank Level Measurement

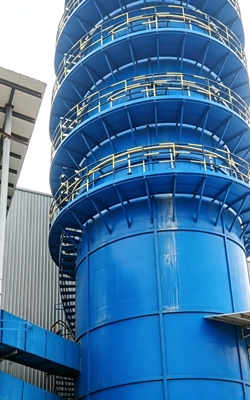

Printing Dyeing Tank Level Measurement

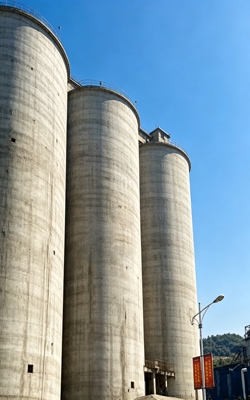

Cement Silo Level Measurement

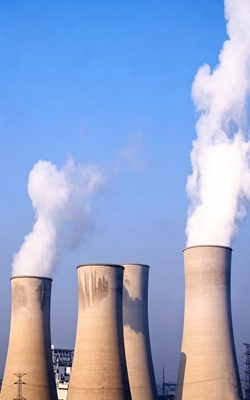

Power Plant Level Measurement
Â
| Model | SISCO-RLT-LEVS-AP16007 | SISCO-RLT-LEVS-AP16007-1 |
| Connection Size | G1.5 Thread | Flanged DN50 |
| Process Connection | Threaded | Flanged |
| Weight | 1.5 Kg | 2.2kg |
| Supply Voltage | 24V DC | 24V DC |
| Operating Pressure | -98 kpa - 2 mpa | -98 kpa - 2 mpa |
| Output Signal | 4–20mA Analog Output | 4–20mA Analog Output |
| Resolution | 1 mm | 1 mm |
| Accuracy | ±1 Cm | ±1 Cm |
| Measuring Range | 0~70m | 0~70m |
| Load Resistance | >300 Ω | >300 Ω |
| Operating Temperature | -30℃ ~ 150℃ | -30℃ ~ 150℃ |
| Housing Material | 304 / 316 Stainless Steel | 304 / 316 Stainless Steel |
| Protection Rating | IP67 | IP67 |

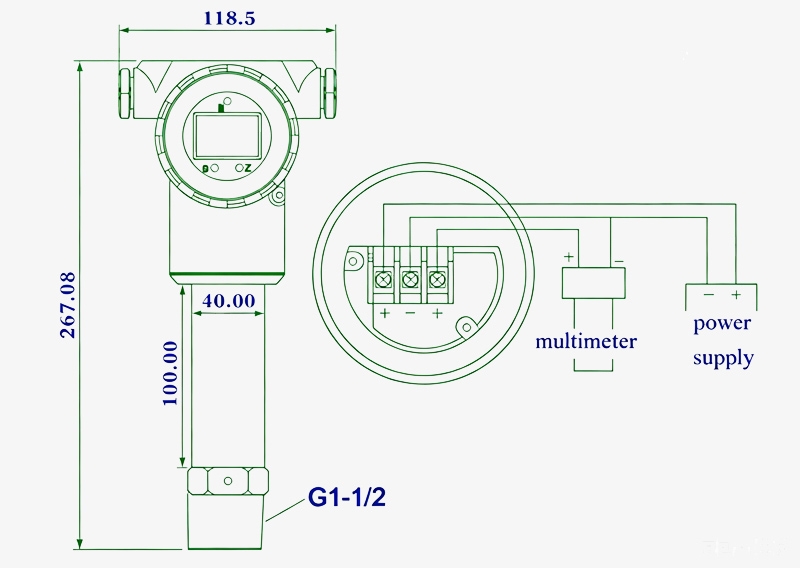

Dimension (unit: mm)

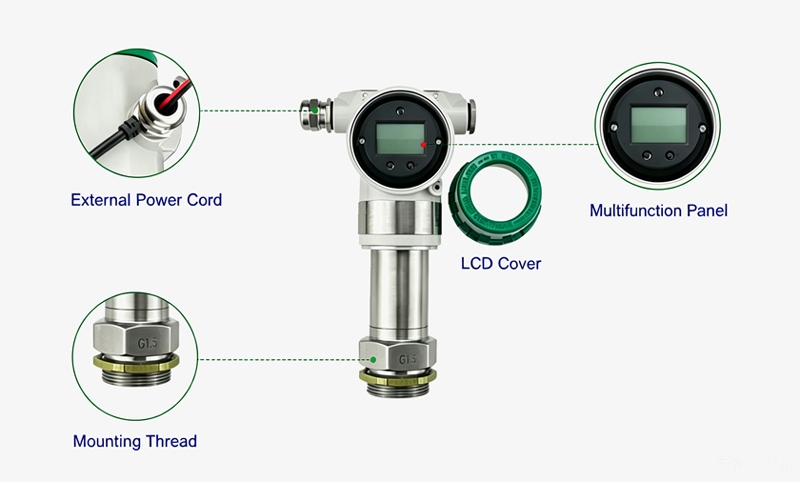

Details
Q1: Can a radar liquid level transmitter measure liquids with foam or vapor?
A1: Yes. Radar technology is highly resistant to foam, vapor, condensation, and temperature changes. Unlike ultrasonic sensors, radar signals are not significantly affected by these conditions, providing more stable and accurate measurements.
Q2: Can the radar level transmitter be installed outdoors?
A2: Yes. The radar liquid level transmitter is designed for reliable outdoor installation. Its IP67-rated enclosure protects the device against dust and water jets, helping to safeguard the internal components in challenging outdoor environments. Combined with a rugged 304/316 stainless steel housing and an operating temperature range of -30°C to 150°C, it delivers stable and accurate liquid level measurement for outdoor tanks, storage vessels, and industrial process applications.
Q3: How accurate is the radar liquid level transmitter?
A3: The radar liquid level sensor delivers high-precision liquid level measurement with an absolute accuracy of ±1 cm and a 1 mm resolution, ensuring stable and reliable monitoring across a measuring range of up to 70 meters. Its advanced radar technology provides consistent performance even in demanding industrial environments, making it suitable for applications that require accurate, continuous level measurement.
Tips: Why choose a radar level transmitter over a contact level sensor?
A radar level transmitter offers several advantages over a contact level sensor by measuring liquid levels without touching the medium. This non-contact design minimizes wear, reduces maintenance, and extends the sensor's service life. It also provides more reliable performance in applications involving high temperatures, pressure, corrosive liquids, or contaminated media, making it an ideal choice for accurate and long-term liquid level monitoring in industrial environments.
