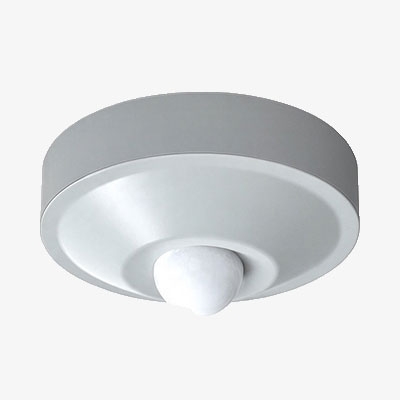

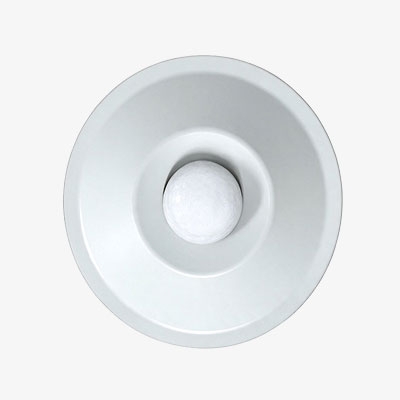

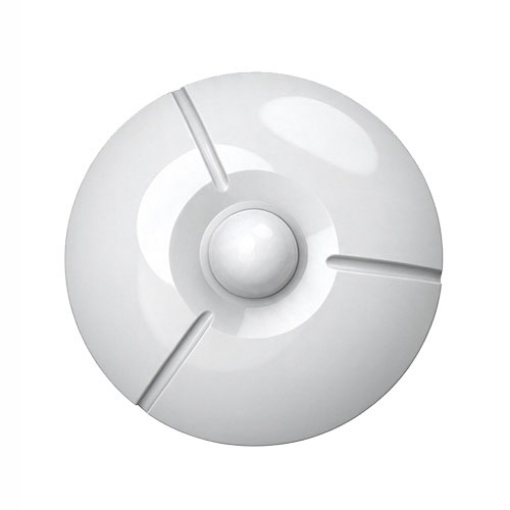

SISCO ceiling radiation level sensor is a compact Radiation Sensor for illuminance monitoring, featuring fast response and long-term stability. This Solar Radiation Sensor provides reliable Lux measurement with configurable communication settings and supports flexible integration into automated control platforms.
Compact Ceiling-Mounted Structure
- Adopts a ceiling-mounted structure that minimizes installation space requirements.
- Provides a simple installation method without complicated mechanical adjustments.
- Keeps the sensing position consistent after installation.
- Features an integrated housing design for long-term operation.
- Improves installation flexibility in different indoor environments.
Digital Monitoring and System Compatibility
- Allows centralized monitoring of multiple measurement points.
- Supports connection with external control platforms for data management.
- Reduces the need for manual inspection through automatic data acquisition.
- Helps improve monitoring efficiency in intelligent control systems.
- Provides a flexible solution for expanding light monitoring networks.
Applications
SISCO ceiling radiation level sensor is designed for light intensity monitoring in various environments. This Radiation Sensor is suitable for agricultural greenhouses, farmland, flower cultivation facilities, and electronic equipment production lines where continuous illuminance measurement is required.

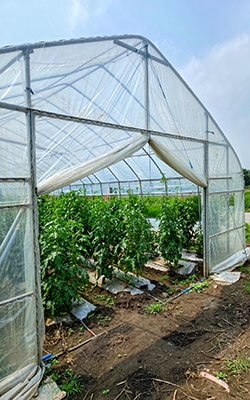

Agricultural Greenhouses
Farmland

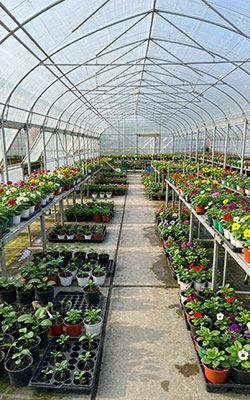

Flower Cultivation

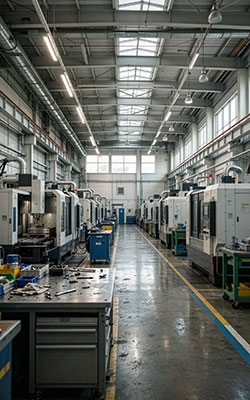

Workshop
| Model | SISCO-RADS-GZ-N01 |
| Power Supply | 10-30VDC |
| Product Name | Ceiling Light Intensity Transmitter |
| Output Signal | RS485 (Modbus-RTU Protocol) |
| Light Intensity Range | 0-65,535 Lux; 0-200,000 Lux (optional) |
| Long-term Stability | ≤5% per year |
| Response Time | 0.1 seconds |

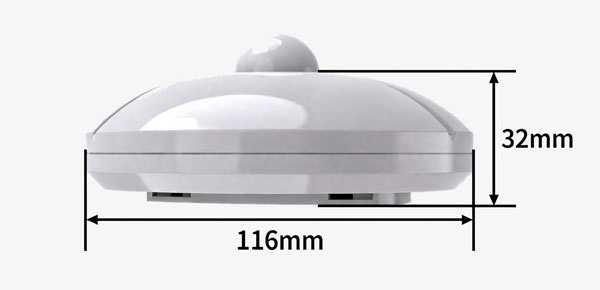

Dimensions (unit: mm)

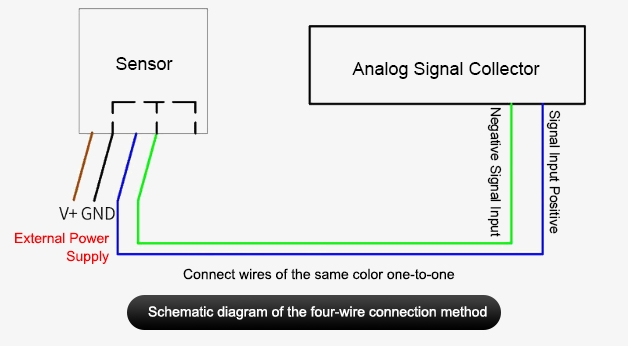

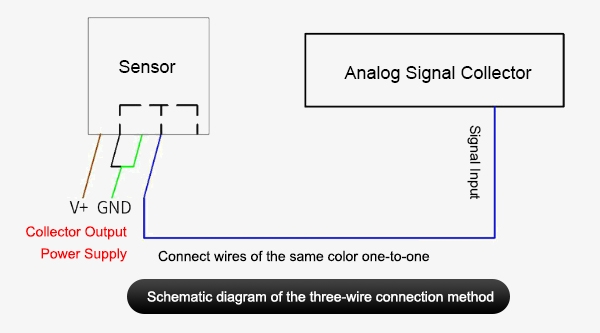

Wiring Method
| Wire Color | Description | |
| Power | Brown | Power Positive (10-30VDC) |
| Black | Power Negative | |
| Output | Blue | Illumination Signal Positive |
| Green | Illumination Signal Negative |
Q1: What installation position is recommended for a ceiling radiation level sensor?
A1: For better measurement results, the ceiling radiation level sensor should be installed on a stable ceiling surface with no obstacles blocking the sensing area. The installation location should represent the actual lighting conditions and avoid interference from abnormal light sources.
Q2: How does a radiation sensor maintain stable light measurement performance?
A2: Through a sensitive optical detection structure, the radiation sensor can capture changes in ambient illumination and provide consistent measurement data. Proper installation and regular equipment checks can help maintain reliable operation over time.
Q3: Can a ceiling radiation level sensor be used for long-term monitoring?
A3: Designed for continuous operation, the ceiling radiation level sensor provides stable light intensity monitoring for systems that require long-term data collection. Its durable structure supports extended use with consistent performance.
Tips: How to choose a suitable measurement range for a ceiling radiation level sensor?
- Consider the lighting environment: Select a proper measurement range based on the expected light intensity level of the installation area to avoid insufficient measuring capacity or unnecessary range selection.
- Choose according to monitoring requirements: Lower light environments may use a smaller range, while outdoor or high-brightness conditions may require a wider detection range.
- Check the actual installation conditions: Consider factors such as surrounding light sources, reflection, and daily light variation before selecting the sensor range.
- Match the system requirements: Ensure the selected ceiling radiation level sensor can provide suitable measurement data for the connected monitoring or control system.
- Allow measurement margin: Selecting a range with enough capacity helps maintain stable operation when light intensity changes significantly.
