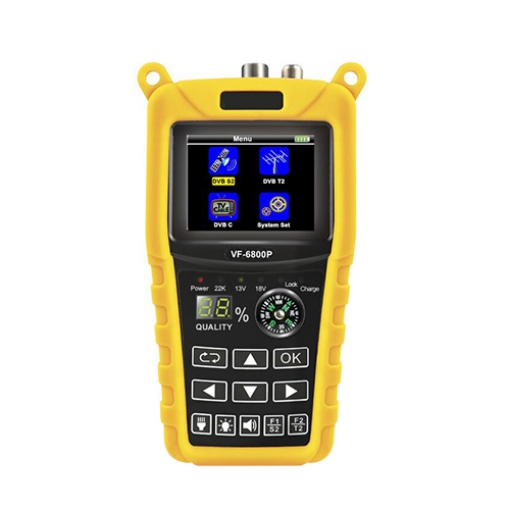

The satellite sat finder comes a color LCD with 10 selectable OSD colors, low-voltage charging, and automatic battery recovery from dormant conditions. The satellite meter can be charged via USB-C and is compatible with DVB-S/DVB-S2, DVB-T/T2, DVB-C, and MPEG2/MPEG4 standards.

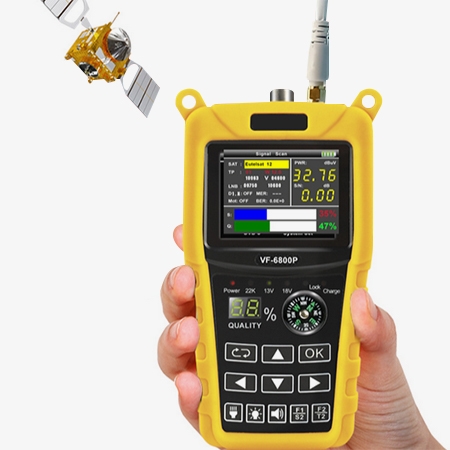

Color HD LCD screen, update software via a USB port
- Equipped with a 2.4-inch color LCD, the sat finder meter features high-brightness LED lighting, backlit buttons, and a compass for convenient nighttime operation.
- The 7.4V/2500mAh fast-charging lithium satellite finder battery provides ultra-long standby time and low power consumption. Type-C charging allows the satellite signal meter to charge at low voltage, automatically waking up from dormant batteries.
- The tv satellite finder's software is updated via a Micro USB port, has LNB short-circuit protection and an indicator light, and supports 0V/5V/12V power for T/T2 antennas.

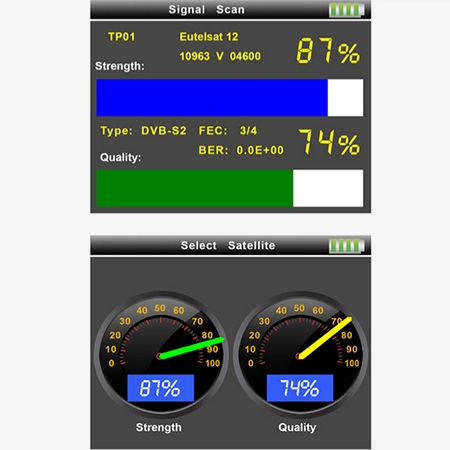

Compatible with S2/T2/C signal, supports multiple OSD languages
- The satellite sat finder is fully compatible with DVB-S/DVB-S2, DVB-T/T2, DVB-C, and MPEG2/MPEG4.
- It supports a spectrum analyzer, motor settings, and antenna motor control – DiSEqC 1.2/USAL S/OFF.
- The sat finder supports multiple OSD languages and 10 color options.
- The dstv satellite finder supports DISEqC 1.0/1.11, 1.2, and 22kHz audio. The satellite signal finder can test the strength, quality, bit error rate, power, signal-to-noise ratio, modulation ratio, etc. of satellite signals.

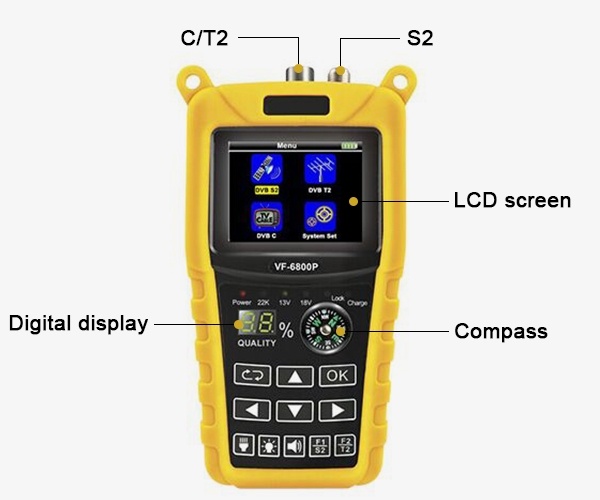

Satellite TV Signal Meter Structure
Application
The satellite signal finder features satellite dish installation and commissioning, satellite signal monitoring, and convenient field testing, making it suitable for TV (DVB-S/DVB-S2, DVB-T/T2, DVB-C, and MPEG2/MPEG4) installations. It is also suitable for use as a satellite reception device on boats, in campers, and in remote locations. The satellite sat finder is used in communications technology and satellite system training courses to help students understand the principles of satellite signal reception.
SAT Communications
Maritime Communications
SAT Measurement Teaching
Telecommunications
Â
| Model | SISCO-SF-VF-6800P |
| Display | 2.4-inch color LCD |
| Functions | Compatible with DVB-S/DVB-S2, DVB-T/T2, DVB-C, MPEG2/MPEG4 |
| Tests | Signal strength, quality, bit error rate, power, signal-to-noise ratio, modulation ratio, etc. |
| Supports | 0V/5V/12V-T/T2 antenna power |
| Charging Port | Type-C |
| Power Supply | 7.4V/2500mAh fast-charging lithium-ion battery with extended standby time |
| Size | 21.5 x 5.3 x 15 (cm) |
Satellite TV Signal Finder User ManualQ1: What is a satellite finder?
A1: A satellite finder is a portable device designed specifically for debugging satellite signal reception systems. It's primarily used to accurately locate satellites, optimize antenna parameters (such as azimuth, elevation, and polarization), and monitor signal quality in real time.
Q2: How does a digital satellite finder work?
A2: The finder connects to the satellite antenna's LNB to receive the satellite's RF signal (L-band, 950-2150 MHz). After demodulation, it displays parameters such as signal strength, modulation method (such as 16APSK for DVB-S2), and symbol rate. Users adjust the antenna's azimuth, elevation, and polarization based on real-time data to achieve optimal signal quality.
Q3: What's the difference between a satellite finder meter and a regular receiver?
A3: Designed specifically for debugging, a satellite signal finder emphasizes real-time parameter feedback (such as constellation diagrams and spectrum scans) over program decoding.
Portability and Professionalism: Its compact size and high functional integration (such as a built-in compass) make it suitable for field operations.
Tips: What are the functions of a satellite tv signal finder?
The satellite finder is compatible with transmission standards such as DVB-S and DVB-S2 (satellite digital television broadcasting), DVB-T and DVB-T2 (terrestrial digital television broadcasting), and DVB-C (cable digital television broadcasting). It supports MPEG-2/MPEG-4 (H.264) high-definition video decoding. It is suitable for home installation, engineering commissioning, and cross-border satellite signal reception and antenna adjustment.
