The skewed fillet weld gauge is a specialized angle weld inspection tool designed to measure the geometry of non-perpendicular (skewed) welds. It accurately checks critical parameters such as weld throat size, leg length, and skew angle, ensuring welding quality and compliance with industry standards. Perfect for joints that deviate from the standard 90° angle—commonly found in structural steelwork, pipelines, and shipbuilding—this welding gauge supports consistent and safe welding in complex layouts.
Premium Material & Lasting Performance

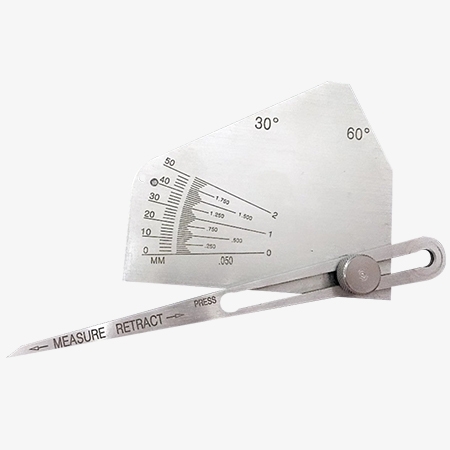

- Made from high-grade stainless steel, this skew weld gauge offers high hardness, excellent wear resistance, and long service life.

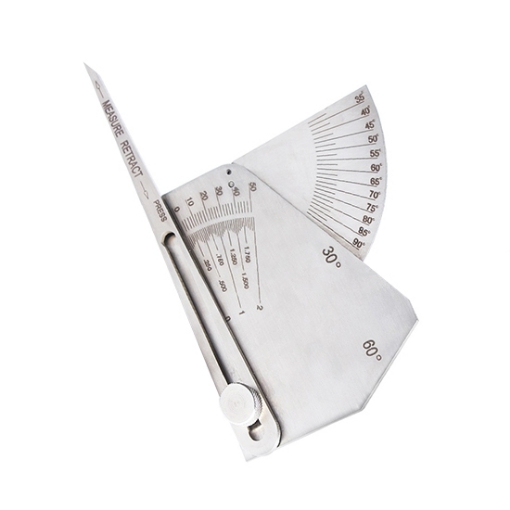

- Large, clearly marked numeric scales of this weld fillet gauge allow for quick and accurate readings, even in low-light environments.
Superior Craftsmanship & Versatile Functionality

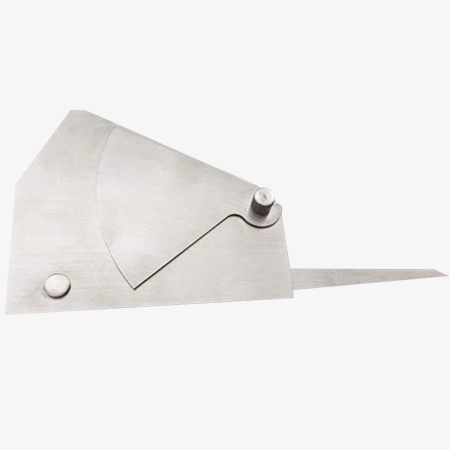

- The skewed fillet weld gauge's body features etched and black-chrome plated scales for high visibility and accurate measurement.
- Designed with a thickened structure, this welding gauge is both aesthetically refined and highly practical, with a wide measurement range for versatile industrial applications.
Applications
Weld gauges are widely used in various industries. In boiler manufacturing, they measure weld reinforcement, width, misalignment, and undercut depth to meet pressure part standards. In shipbuilding, they check fillet weld size, leg height, and assembly gaps to ensure hull strength. In oil pipelines, welding gauges assess groove angles and gap sizes to prevent welding defects and leaks. In industrial construction—such as bridges and pressure vessels—they provide accurate weld dimension data for process evaluation and quality control.
Shipbuilding
Oil Pipelines
Industrial Construction
Boiler Manufacturing
Â
| Model | SISCO-WG-ST |
| Material | Stainless Steel |
| Measuring Range | 0–20mm |
| Accuracy | 0.01mm |
| Graduation Process | Laser Engraved |
| Net Weight | 110g |
Q1: What is the primary use of this skewed fillet weld gauge?
A1: This skewed fillet weld gauge is designed for accurately measuring weld throat thickness, leg length, and angular deviations in non-perpendicular (skewed) weld joints. It's beneficial in applications where weld joints deviate from the standard 90° configuration, such as structural steel, piping, and shipbuilding.
Q2: What material is the gauge made from, and how durable is it?
A2: The SISCO skew gauge is made from high-quality stainless steel, offering excellent corrosion resistance and long-term durability. It’s suitable for rugged industrial environments and maintains precision even under frequent use.
Q3: How accurate is this stainless steel weld gauge, and what is its measuring range?
A3: This welding gauge offers a high measurement precision of 0.01mm within a 0–20mm range. The finely laser-engraved scale ensures clear visibility and accurate readings, even in low-light working conditions.
Tips: Why choose a skewed fillet weld gauge over a standard weld gauge?
Standard weld gauges are designed for perpendicular joints, but they may fall short when measuring angled or misaligned welds. A skewed fillet weld gauge is engineered specifically for these complex scenarios, allowing for more accurate and consistent measurement of throat depth and leg length in skewed or offset welds. This ensures compliance with welding standards and helps prevent structural weaknesses in your projects.
