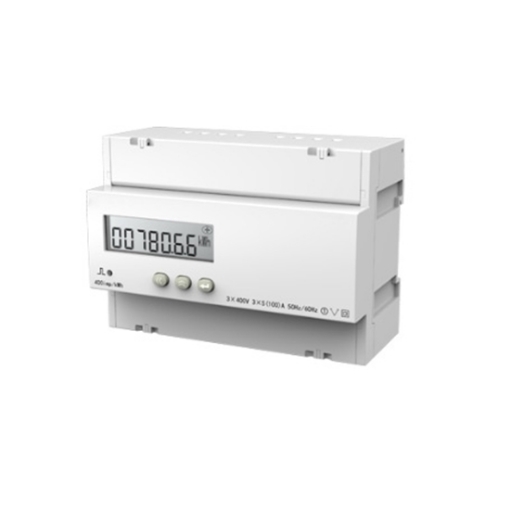

Three Phase Digital kWh Energy Meter, DIN Rail Mounted

35mm DIN-rail mounted digital energy meter is three phase 4-wire meter. The 3-phase energy meter measurement for energy meter voltage/current/active power/power factor/frequency measurements. The kilowatt usage meter is designed for simple DIN-rail mounting, as wires pass through tubes. Usage data is maintained through power outages.
SKU: SISCO-DEM-003
$865.29
i h
Free shipping
Delivery date: 7-12 days
Overview


The electric kWh energy meter is a three-phase meter, class 1 accuracy, and features LCD readout in hundredths of a kWh with 800 pulses per kWh. ABS flame retardant shell, high-precision chip, stable performance, strong isolation, anti-vibration.

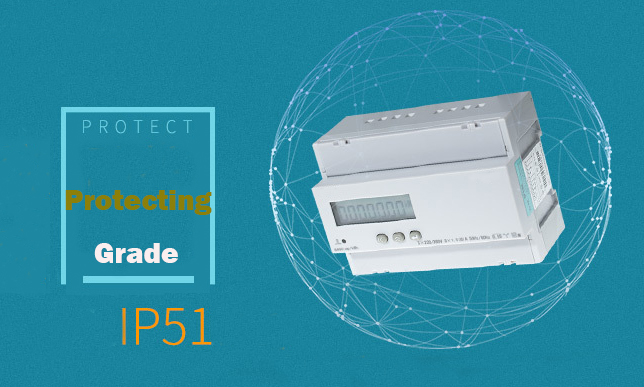

Detail of digital energy meter

Easy to use

  • Large buttons for easy operation
  • High contrast segment LCD screen
  • Durable probe

Detail of digital energy meter


Smart metering chip

  • Electronic measurement with high precision and small error
  • Long-term use without adjustment



Dimension (unit=mm)

3-phase digital kwh energy meter dimension

Wiring

3-phase digital kwh energy meter wiring

Application

Digital energy meters also called advanced meters or smart meters, are intelligent devices that automatically record the user consumption of water and electricity. SISCO digital energy meter is widely used in rail, smart switch cabinets, intelligent buildings, smart factories and energy management systems.

Digital energy meter application

Specs



Model SISCO-DTS1946
Accuracy Grade Grade-1 accuracy for active energy
Phase Three phase (4 wire)
Rated Voltage 3x230/400V AC
Current Input Direct input: 5(100)A / Via CT input: 1.5(6)A
Frequency 50/60Hz
Display Mode LCD display
Display Digits 7
Energy Pulse 1 active energy pulse output, pulse width (80±20%) ms
Measurement Range Voltage/Current/Active power/Power factor/Frequency
RS485 Communication Interface Modbus-RTU protocol, baud rate up to 9600bps
IP Protection IP54 (panel) /IP20 (case)
Certificate CE/ ISO/ MID
Warranty Period 12 months
Dimension 126*66*90mm
Weight 2.5kg
Installation Din rail 35mm
Work Temperature -10℃~55℃
Storage Temperature -25℃~70℃
FAQs

Q1: What are the advantages of digital energy meter?
A1:
The meter has protection against undesired input range. Hence the meter can be protected from overload or some of the fault or misuse. The auto polarity function can prevent problems from connecting the meter to a test circuit with some wrong polarity. Overall accuracy is increased due to digital readout.

Q2: What is the difference between a power meter and an energy meter?
A2: One major difference between a wattmeter and an energy meter is that the wattmeter measures electrical power in the circuit, whereas the energy meter measures total amount of energy consumed by the load.

Q3: What is the main function of an energy meter?
A3: An energy meter is an electrical device that measures the electrical power being consumed and this allows the energy consumed over time (by a residential building, a business, or an electrically powered device) to be determined.

Tips: How do you read a three-phase kWh energy Meter?

These dials measure the number of kilowatt-hours (kWh) you use in 1s, 10s, 100s, 1,000s and 10,000s. To correctly read your meter, read the dials in order, starting from the right and moving to the left. Write down the numbers from right to left. In most cases, the pointer will be between two numbers on the dial.
