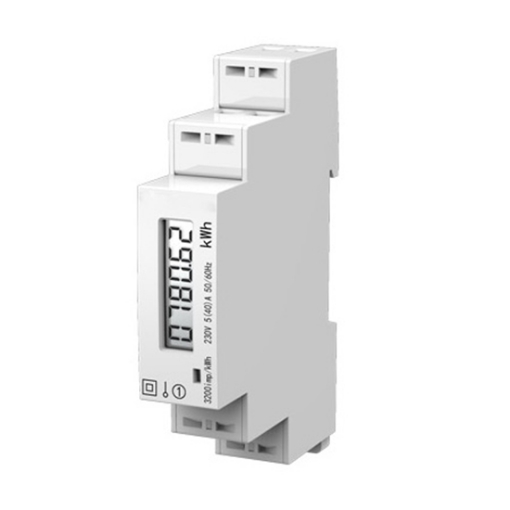

Single Phase Digital Energy Meter, DIN Rail Mounted

Single phase digital energy meter with 230V AC output voltage, DIN-rail mounted, direct connection up to 40A, with class 1 accuracy in active energy, 1 loop active pulse output. DIN-rail mounted digital energy meter has ergonomic design, easy to install, easy to hold in the palm of your hand.
SKU: SISCO-DEM-1P
$183.07
i h
Free shipping
Delivery date: 7-12 days
Overview


DIN rail energy meter for sale online with LCD display and with 6 display digits, two-way power metering, LCD display, accuracy up to 0.5s level, active pulse output. The energy meter has the advantages of small in size, lightweight and long service life.

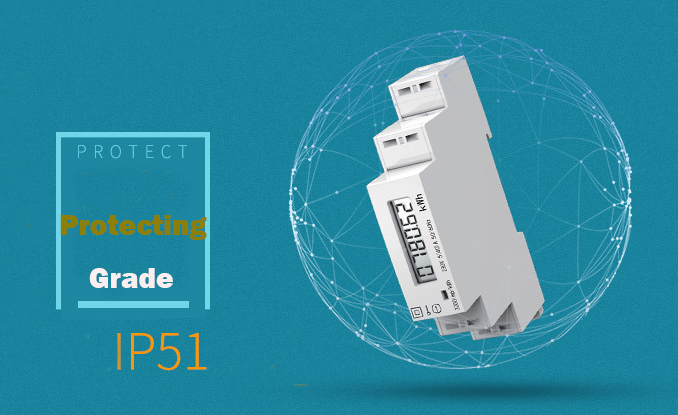

Detail of single phase digital energy meter

Easy to use

  • Large buttons for easy operation
  • High contrast segment LCD screen
  • Durable probe

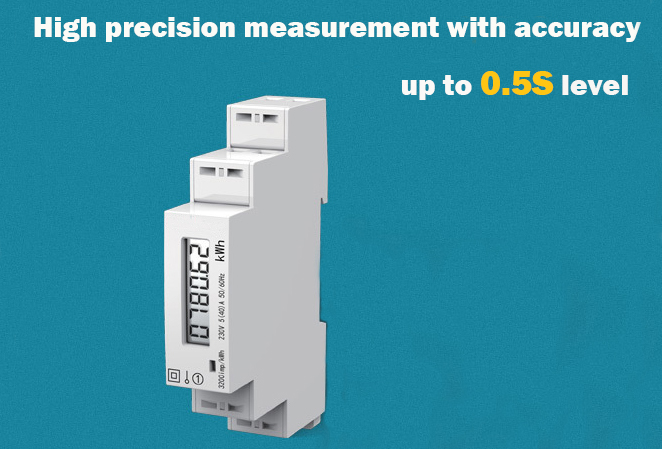

Detail of single phase digital energy meter


High accuracy

  • Good repeatability
  • High measurement accuracy
  • Soft probe wire, not easy to break

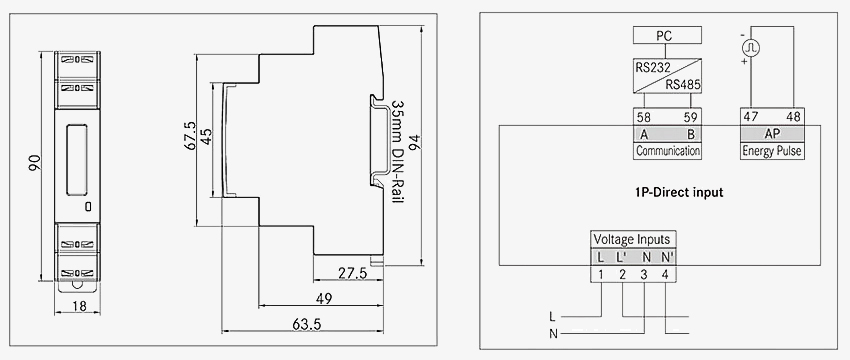

Dimension and Wiring (unit=mm)

Single phase digital energy meter dimension and wiring

Application

Digital energy meters also called advanced meters or smart meters, are intelligent devices that automatically record the user consumption of water and electricity. SISCO digital energy meter is widely used in rail, smart switch cabinet, intelligent buildings, smart factories and energy management systems.

Digital energy meter application

Specs



Model SISCO-DDS1946-1P
Accuracy Grade Grade-1 accuracy for active energy
Phase Single phase (2 wire)
Number of Poles 1P
Rated Voltage 230V
Current Direct Input 5(40)A
Frequency 50/60Hz
Display Mode LCD display
Display Digits 6
Energy Pulse 1 loop active energy pulse output, pulse width (80±20%) ms
Measurement Range Voltage/Current/Active power/Power factor/Frequency
Communication Interface RS485, Modbus-RTU protocol, 2 wire, up to 9600bps
IP Protection IP54 (panel) /IP20 (case)
Certificate CE/ ISO/ MID
Warranty Period 12 months
Dimension 18*64*94mm
Weight 0.5kg
Installation Din rail 35mm
Work Temperature -10℃~55℃
Storage Temperature -25℃~70℃
FAQs

Q1: What are the advantages of digital energy meter?
A1:
The meter has protection against undesired input range. Hence the meter can be protected from overload or some of the fault or misuse. The auto polarity function can prevent problems from connecting the meter to a test circuit with some wrong polarity. Overall accuracy is increased due to digital readout.

Q2: What is the difference between a power meter and an energy meter?
A2: One major difference between a wattmeter and an energy meter is that the wattmeter measures electrical power in the circuit, whereas the energy meter measures total amount of energy consumed by the load.

Q3: What is the main function of an energy meter?
A3: An energy meter is an electrical device that measures the electrical power being consumed and this allows the energy consumed over time (by a residential building, a business, or an electrically powered device) to be determined.

Tips: What are the functions of a single-phase digital energy meter?

  1. Measurement and storage function: It can measure single and two-way active and reactive energy of various time periods; it can complete the measurement and display of current power, demand, power factor and other parameters. It can store the data of at least the last meter reading cycle.
  2. Monitoring function: It can monitor the customer's power and large demand, and prevent their power theft by analyzing the customer's power load curve.
  3. Control function: It can control the customer's time period and load control. The former is used for multi-rate time-of-day billing; the latter means receiving remote control commands through a communication interface or controlling load through internal programming of the meter (considering time period and load quota).
  4. Management function: Through the communication interface, the electronic energy meter is connected to the communication network or meter reading system of the electric power system to realize the remote data exchange with the outside world.
