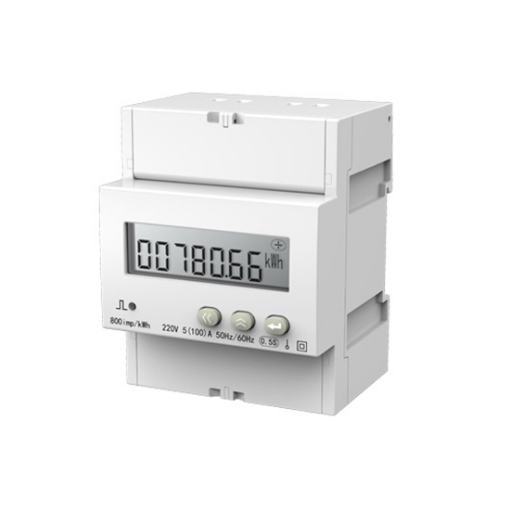

Single Phase Digital kWh Energy Meter, DIN Rail Mounted

High-quality digital kWh energy meter with single-phase, 2 wire, 5A direct input, max. direct connection can up to 100A, or 1.5(6)A via CT input current, 35mm DIN rail mounted which is ideal for basic kWh metering.
SKU: SISCO-DEM-001
$402.36
i h
Free shipping
Delivery date: 7-12 days
Overview


1-phase digital electric energy meter with active energy Class 1 accuracy, Modbus RS-485, and pulse output, is ideal for basic kWh metering. The Electric kWh Meter adopts microelectronics and digital processing technology to measure electric energy, accurately and reliably.

Detail of digital energy meter

Easy to use

  • Large buttons for easy operation
  • The operation interface is simple and easy to use

Detail of digital energy meter


Smart metering chip

  • Electronic measurement with high precision and small error
  • Long-term use without adjustment

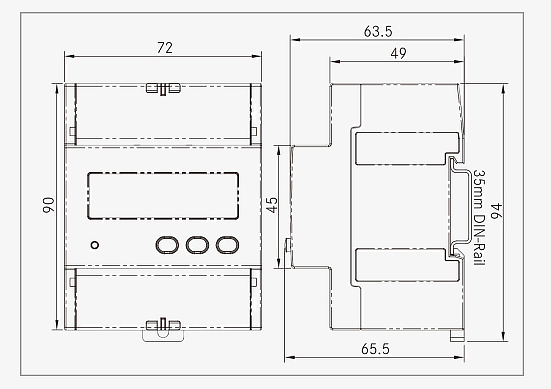

Dimension (unit=mm)

1-phase digital kwh energy meter dimension

Wiring

Single phase digital kwh energy meter wiring

Application

Digital energy meters also called advanced meters or smart meters, are intelligent devices that automatically record the user consumption of water and electricity. SISCO digital energy meter is widely used in rail, smart switch cabinets, intelligent buildings, smart factories and energy management systems.

Digital energy meter application

Specs



Model SISCO-DDS1946
Accuracy Grade Grade-1 accuracy for active energy
Phase Single phase (2 wire)
Rated Voltage 230V
Current Input Direct input: 5(100)A / Via CT input: 1.5(6)A
Frequency 50/60Hz
Display Mode LCD display
Display Digits 7
Energy Pulse 1 energy pulse output, pulse width (80±20%) ms
Measurement Range Voltage/Current/Active power/Power factor/Frequency
RS485 Communication Interface Modbus-RTU protocol or DL/T 645 protocol
IP Protection IP54 (panel) /IP20 (case)
Certificate CE/ ISO/ MID
Warranty Period 12 months
Dimension 63.5*72*90mm
Weight 2 kg
Installation DIN rail 35mm
Work Temperature -10℃~55℃
Storage Temperature -25℃~70℃
FAQs

Q1: What are the advantages of digital energy meter?
A1:
The meter has protection against undesired input range. Hence the meter can be protected from overload or some of the fault or misuse. The auto polarity function can prevent problems from connecting the meter to a test circuit with some wrong polarity. Overall accuracy is increased due to digital readout.

Q2: What is the difference between a power meter and an energy meter?
A2: One major difference between a wattmeter and an energy meter is that the wattmeter measures electrical power in the circuit, whereas the energy meter measures total amount of energy consumed by the load.

Q3: What is the main function of an energy meter?
A3: An energy meter is an electrical device that measures the electrical power being consumed and this allows the energy consumed over time (by a residential building, a business, or an electrically powered device) to be determined.

Tips: What is kWh in energy meter?

The most common unit of measurement on the electricity meter is the kilowatt hour [kWh], which is equal to the amount of energy used by a load of one kilowatt over a period of one hour, or 3,600,000 joules.
