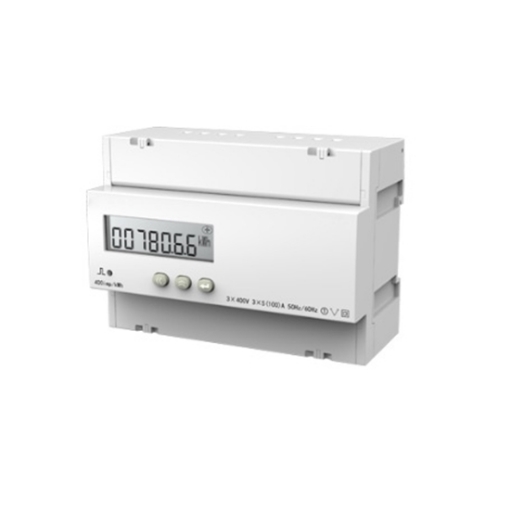

Three Phase Digital Energy Meter, LCD Display, DIN Rail Mounted

The provided digital electric energy meter is 3 phase 3 wire, 35mm DIN rail mounted, Modbus-RTU protocol communication RS485 port. LCD digital display with high brightness presents a three-phase current or voltage value simultaneously. Premium ABS housing, superior flame retardant properties, easy wiring.
SKU: SISCO-DEM-002
$610.55
i h
Free shipping
Delivery date: 7-12 days
Overview


This dgital energy meter can measure positive active energy in electric energy measurement, which is clearly displayed by LCD backlight screen. digital LCD HD backlight display meter is easy to install and can be widely used indoors or outdoors, at home, school, market, industry, laboratory, etc.

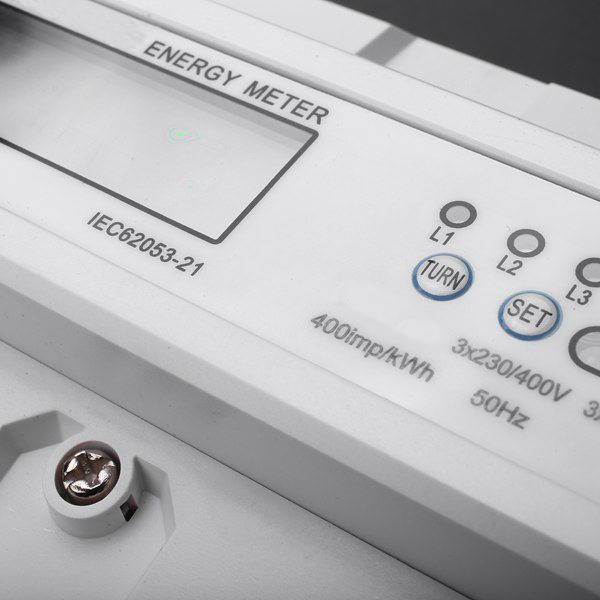

Detail of digital energy meter

Easy to use

  • Large buttons for easy operation
  • The operation interface is simple and easy to use

Detail of digital energy meter

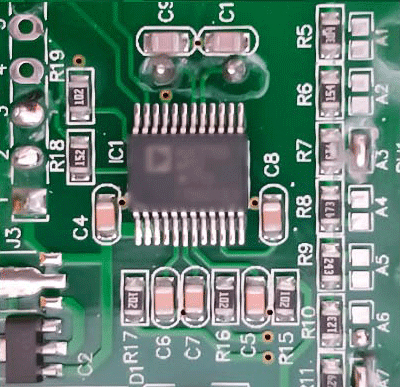

Smart metering chip

  • Electronic measurement with high precision and small error
  • Long-term use without adjustment

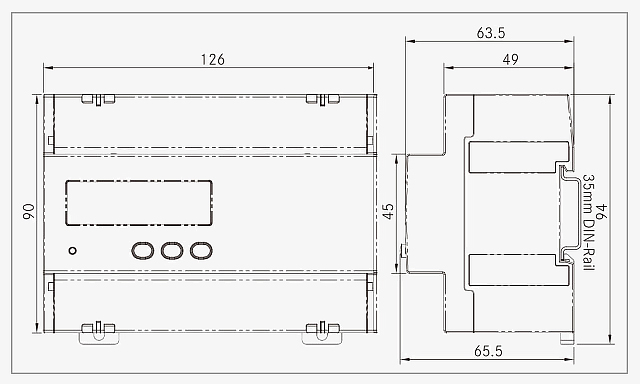

Dimension (unit=mm)

3-phase lcd dispaly digital energy meter dimension

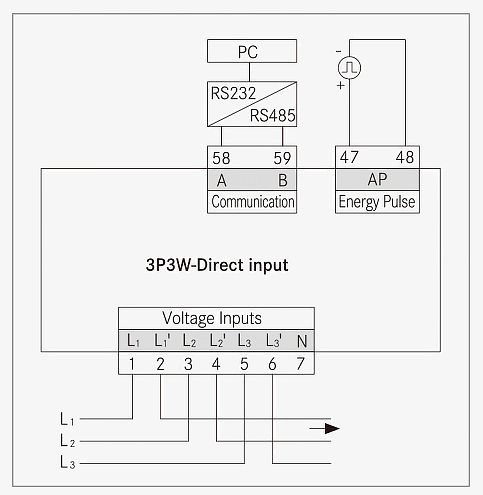

Wiring

3-phase lcd dispaly digital energy meter wiring

Application

Digital energy meters also called advanced meters or smart meters, are intelligent devices that automatically record the user consumption of water and electricity. SISCO digital energy meter is widely used in rail, smart switch cabinets, intelligent buildings, smart factories and energy management systems.

Digital energy meter application

Specs



Model SISCO-DSS1946
Accuracy Grade Grade-1 accuracy for active energy
Phase Three phase (3 wire)
Rated Voltage 3x400V AC
Current Input Direct input: 5(100)A / Via CT input: 1.5(6)A
Frequency 50/60Hz
Display Mode LCD display
Display Digits 7
Energy Pulse 1 active energy pulse output, pulse width (80±20%) ms
Measurement Range Voltage/Current/Active power/Power factor/Frequency
RS485 Communication Interface Modbus-RTU protocol, baud rate up to 9600bps
IP Protection IP54 (panel) /IP20 (case)
Certificate CE/ ISO/ MID
Warranty Period 12 months
Dimension 126*66*90mm
Weight 2.5kg
Installation Din rail 35mm
Work Temperature -10℃~55℃
Storage Temperature -25℃~70℃
FAQs

Q1: What are the advantages of digital energy meter?
A1:
The meter has protection against undesired input range. Hence the meter can be protected from overload or some of the fault or misuse. The auto polarity function can prevent problems from connecting the meter to a test circuit with some wrong polarity. Overall accuracy is increased due to digital readout.

Q2: What is the difference between a power meter and an energy meter?
A2: One major difference between a wattmeter and an energy meter is that the wattmeter measures electrical power in the circuit, whereas the energy meter measures total amount of energy consumed by the load.

Q3: What is the main function of an energy meter?
A3: An energy meter is an electrical device that measures the electrical power being consumed and this allows the energy consumed over time (by a residential building, a business, or an electrically powered device) to be determined.

Tips: How do you read a 3-phase energy meter?

It shows the basic technical information about the meter and its serial number. Each meter is assigned a unique individual serial number, and the first four digits are the meter code followed by a six-digit serial number. These indicate the active voltage present of each phase. A, B and C.
