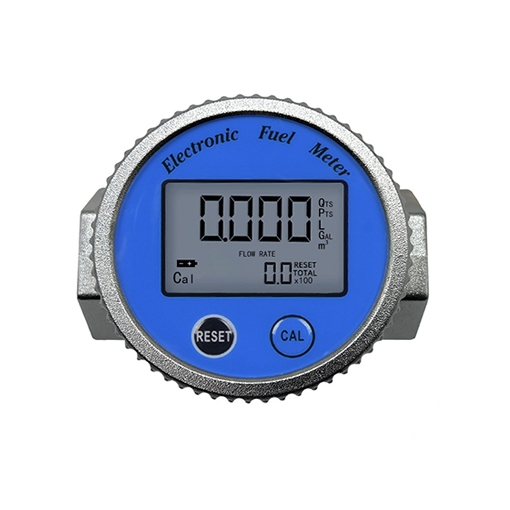

    Waterproof Turbine Flow Meter for Water/Diesel/Fuel

    Good price digital waterproof turbine flow meter provides 3/4 inch and 1 inch two nominal diameters, IPX7 waterproof rating, 450 L/min flow size. this stainless steel turbine flow meter offers real-time, easy-to-read measurements.
    SKU: SISCO-FM-KW24
    *
    $82.89
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    Waterproof digital turbine flow meter with a flow range from 4 to 50 L/min (3/4-inch),  9 to 100 L/min (1-inch). The turbine flow meter equipped with a digital display, is ideal for flow monitoring of various liquids, including diesel, gas, kerosene, methanol, and water.

    Waterproof turbine flow meter detail

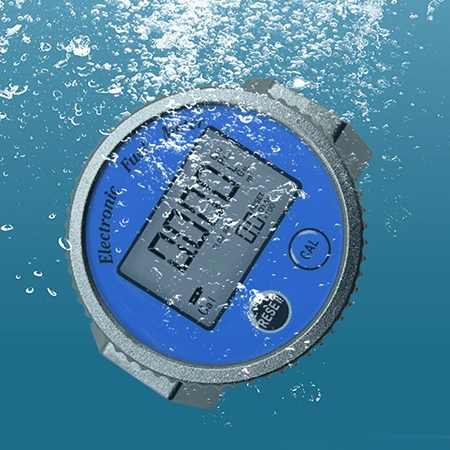

    The digital turbine flow meter design with an IPX7 waterproof rating

    • The IPX7 rating ensures that the turbine flow meter is protected against water immersion up to 1 meter for 30 minutes, making it suitable for use in wet environments or areas prone to splashes.
    • Designed to withstand harsh conditions, the flow meter is ideal for outdoor applications, including those in marine, agricultural, and industrial settings where exposure to water is common.
    • Even in environments where the flow meter might be exposed to water, the IPX7 rating ensures that it continues to function accurately and reliably without risk of damage or malfunction.
    Waterproof turbine flow meter detail

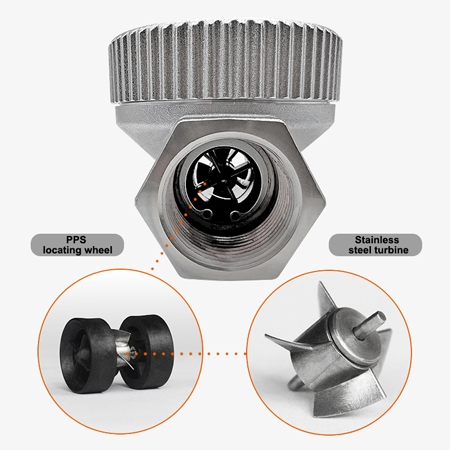

    The turbine meter design with high-performance turbine

    • The high-performance turbine ensures precise measurement of fluid flow, even at varying flow rates, providing reliable data for critical applications.
    • The turbine flowmeter built with robust materials, the turbine is designed to withstand high pressures and corrosive fluids, ensuring long-term durability and consistent performance.
    • Suitable for a variety of fluids, including water, oils, and chemicals, the high-performance turbine makes this flow meter versatile across different industries.

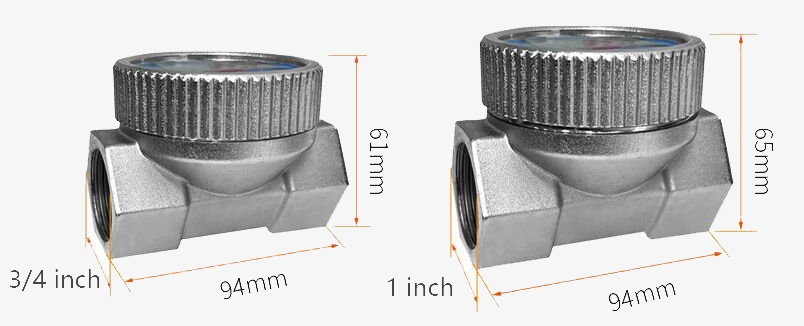

    Dimension

    Waterproof turbine flow meter sizes

    Application

    SISCO flow meter calculates the mass flow rate of the fluid based on the power required to maintain the constant temperature difference. Thermal mass flow meters are commonly used in applications where precise measurement of gas flow is required, such as in biotechnology, medical equipment, scientific research, chemical and petrochemical industry.

    Flow meter for medical equipment

    Medical Equipment

    Flow meter for scientific research

    Scientific Research

    Flow meter for petrochemical industry

    Petrochemical Industry

    Flow meter for biotechnology

    Biotechnology

    Specs



    Model SISCO-PM-KW24
    Nominal Diameter 3/4 inch 1 inch
    Minimum Flow 4 L/min 9 L/min
    Maximum Flow 50 L/min 100 L/min
    Connection Method Internal thread connection
    Waterproof IPX7 waterproof
    Applicable Media Diesel, kerosene, methanol, water, etc.
    Flow Size 450 L/min
    Unit of Measurement QTS, PTS, L, GAL, m³
    Measurement Accuracy ±1%
    Maximum Working Pressure 0.6 Mpa
    Material Aluminum alloy, plastic, etc.
    Single Measurement Range 99999
    Cumulative Measurement Range 99999999
    Weight 0.325 kg

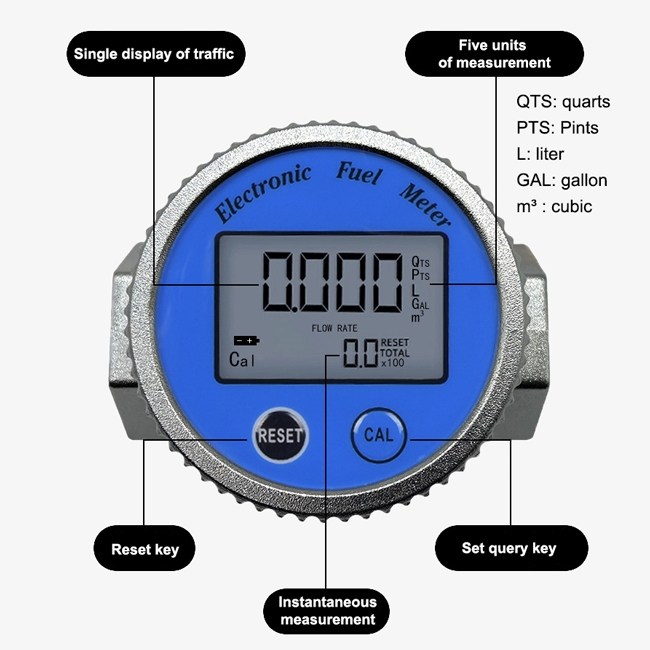

    Detail

    Waterproof turbine flow meter detail

    FAQs

    Q1: What is a flow meter?
    A1: A flow meter is a device that measures the flow rate or volume of a fluid, such as a liquid or gas, as it moves through a pipe or conduit. It provides real-time data on the amount of fluid passing a specific point, which is crucial for monitoring and controlling industrial processes, ensuring accurate dosing, and optimizing system performance. Flow meters come in various types and technologies, each suited for different applications and fluid properties.

    Q2: How often should flow meters be calibrated?
    A2: The frequency of flow meter calibration depends on several factors, including:

    1. Application Requirements: High-precision applications may require more frequent calibration.
    2. Fluid Type: Corrosive or abrasive fluids may necessitate more regular checks.
    3. Operating Conditions: Extreme temperatures, pressures, or high flow rates can affect accuracy.
    4. Manufacturer Recommendations: Follow the guidelines provided by the flow meter manufacturer.
    5. Regulatory Standards: Some industries have specific calibration requirements.

    As a general rule, flow meters are often calibrated annually, but this can vary. It’s also advisable to calibrate whenever there is a significant change in process conditions or if the flow meter shows signs of drift or performance issues.

    Q3: What factors can affect flow meter accuracy?
    A3: Several factors can affect the accuracy of a flow meter:

    • Fluid Properties: Changes in fluid density, viscosity, or temperature can impact accuracy. For instance, varying fluid densities can affect measurement, especially in vortex and electromagnetic flow meters.
    • Flow Conditions: Turbulence, flow profile, and pressure drops can influence measurements. Inaccurate readings can occur if the flow is not properly aligned with the meter.
    • Installation Issues: Incorrect installation, such as improper pipe alignment or insufficient straight pipe sections before and after the meter, can cause inaccuracies.
    • Temperature: Extreme temperatures can affect fluid properties and the meter's components, leading to measurement errors.
    • Pressure: Variations in pressure can alter fluid density and viscosity, impacting flow meter accuracy.

    Tips: Will the waterproofing affect the accuracy of the flow meter?

    The waterproofing of the flow meter, particularly with an IPX7 rating, is specifically designed to protect the device from water ingress without impacting its accuracy. The internal measuring components are fully sealed and isolated from external elements, ensuring that the presence of water does not interfere with the turbine's ability to measure flow rates accurately. Whether the flow meter is exposed to splashes, rain, or brief submersion, its precision and reliability remain intact. This means that even in challenging environments where water exposure is common, the flow meter will continue to deliver consistent and accurate readings, providing dependable performance over time without compromising on measurement accuracy.
