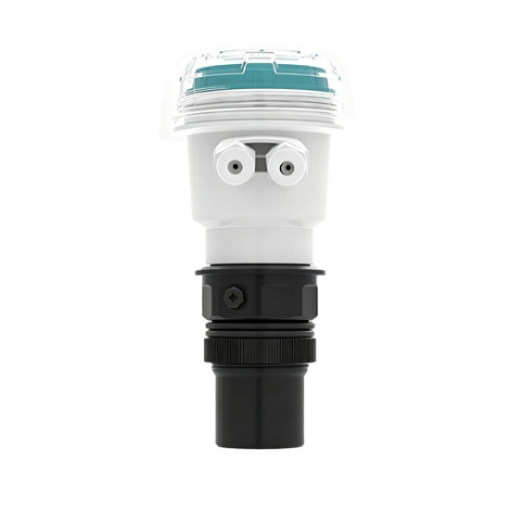

Achieve reliable non-contact liquid level tracking with the ultrasonic tank level transmitter. It combines superior accuracy and user-friendly installation. With specifications of a 5 m measuring range, 1mm resolution, and ±0.3%FS accuracy, it fits perfectly for industrial tanks, water management, and process control.
Mechanical and Structural Superiorities

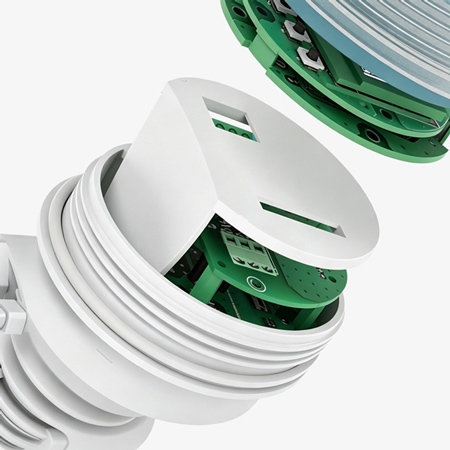

- The ultrasonic tank level sensor is configured with a high-performance chip to realize quick signal response and dependable underlying signal processing for level measurement.

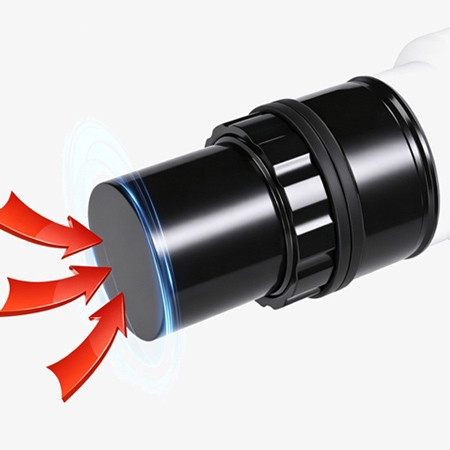

- An IP65 hermetically sealed probe is utilized to achieve excellent sealing properties.
- The 10° narrow beam angle design centralizes acoustic energy and boosts penetration ability. It can effectively reject false echoes and stray signal interference to guarantee accurate level acquisition.
Intelligent Algorithms and Compensation Technology
- The self-developed chip carries an enhanced AI compensation algorithm, which markedly inhibits disturbances brought by external environments.
- Automatic sound velocity compensation and temperature compensation with intelligent thermal compensation are built into the device. The ultrasonic tank level transmitter lessens signal drift generated under high-temperature conditions (≥50℃) and retains steady measurement accuracy with fluctuating operating parameters.
Applications
Capable of non-contact level monitoring and automatic control for regular and corrosive media, this ultrasonic level transmitter fits water treatment pools, municipal pump stations, diverse storage tanks, mixing reactors, acid & alkali containers and electroplating baths. It finds extensive applications across water treatment, municipal engineering, chemical manufacturing, surface treatment and other industries.
Wastewater Treatment
Acid And Alkali Storage Tanks
Agitated Liquid Surface
Urban Pipeline Network
| Model | SISCO-ULT-MIK-MP-C |
| Measurement Accuracy | ±0.3%FS |
| Measuring Range | 5m/10m/15m |
| Weight | 800g |
| Resolution | 1mm or 0.1%FS (whichever is larger) |
| Display | Chinese & English LCD Display |
| Transmitter Output | 4-20mA (2-wire / 4-wire optional), Output Accuracy ±0.2%FS |
| Alarm Output | 2-channel SPST (4-wire optional), 250VAC, 3A |
| Communication Output | RS485 (4-wire optional), Modbus-RTU Protocol |
| Power Supply | 18-28VDC |

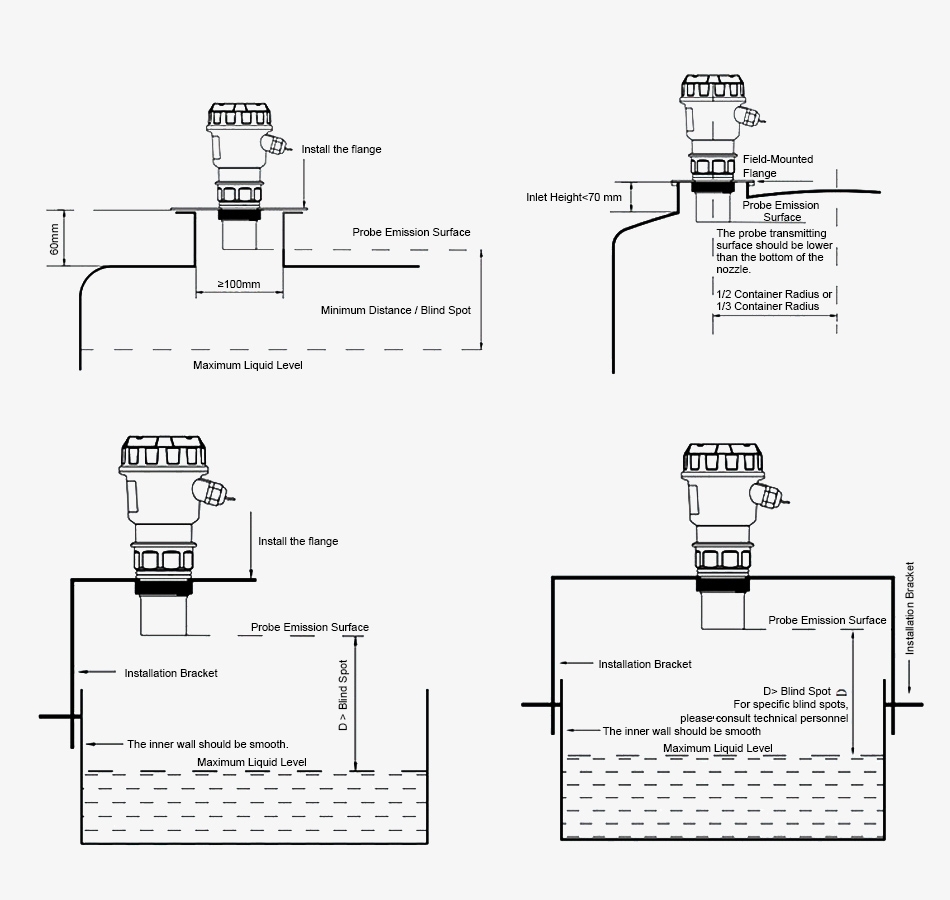

Installation
Q1: How do I prevent ultrasonic level sensor measurement errors?
A1: To prevent measurement errors, install the ultrasonic level sensor vertically with a clear signal path and avoid obstacles, tank walls, foam, and strong turbulence. Proper calibration, selecting the correct measuring range, and using temperature compensation can also improve accuracy and ensure stable level readings in industrial applications.
Q2: What is the resolution of this ultrasonic level transmitter?
A2: This ultrasonic level transmitter provides a resolution of 1 mm or 0.1% FS (whichever is larger), allowing accurate and stable liquid level measurement. The high resolution helps detect small level changes and is suitable for applications such as water tanks, chemical storage, and industrial process monitoring.
Q3: Does the ultrasonic level meter have a temperature compensation function?
A3: Yes, this ultrasonic level meter features temperature compensation to improve measurement accuracy under changing temperatures. It automatically adjusts ultrasonic calculations to reduce errors caused by sound speed variations, providing stable and reliable level readings for water tanks, chemical tanks, and industrial applications.
Tips: Is this ultrasonic tank level sensor suitable for remote monitoring?
Yes. The optional RS485 Modbus RTU communication allows the sensor to transmit real-time level data over long distances. It can be integrated into SCADA systems or other industrial monitoring platforms for centralized supervision and data logging.
