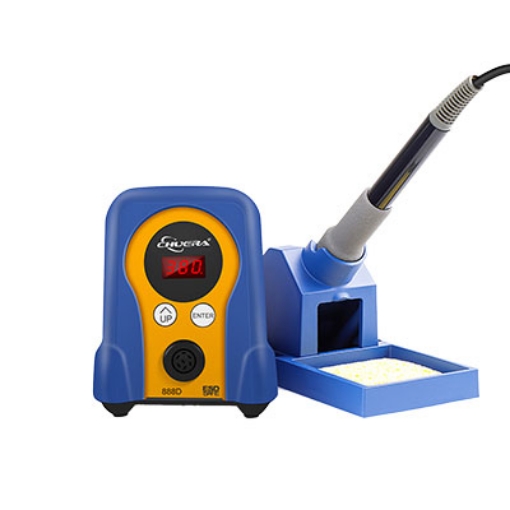

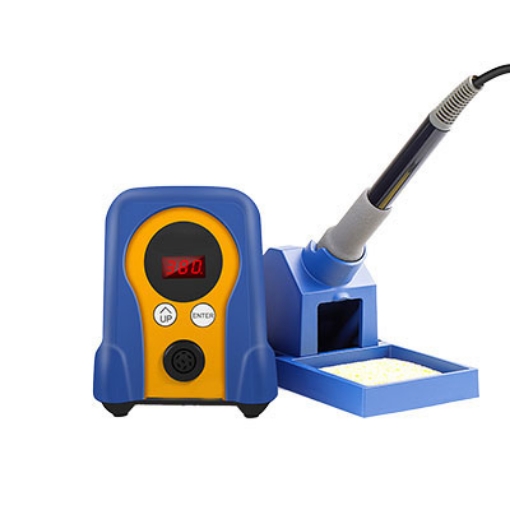

70W Temperature Controlled Soldering Station

Q1: What is the difference between the 220V and 110V versions, and which one should I choose?
A1: The main difference is the input voltage requirement. This model is designed for AC220V / 50Hz power outlets, which are standard in Europe, Asia, Africa, Australia, and many other regions. If your country uses 110V (e.g., US, Canada, Japan), please check the availability of a 110V version or use a suitable step-up voltage converter. Choosing the correct voltage ensures safe operation and optimal 70w power output.

Q2: How do I calibrate the temperature, and why is it necessary?

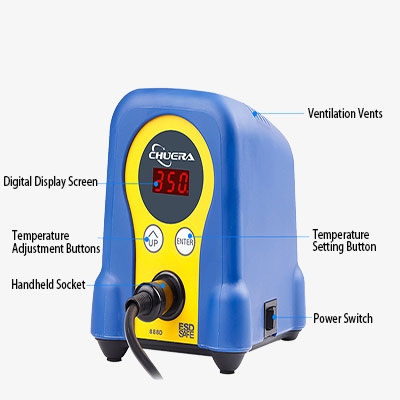

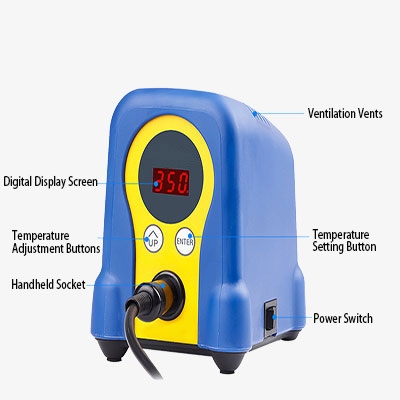

A2: Temperature calibration is a simple process: first, measure the actual tip temperature using a compatible soldering iron thermometer. Then, long-press the UP button to enter calibration mode and input the measured temperature using the UP/ENTER keys. The station will automatically adjust its internal reading to match the actual tip temperature. Periodic calibration (e.g., every few months or after replacing the heating core or tip) helps maintain ±2°C accuracy and ensures consistent soldering quality over time.

Q3: Does the ESD-safe design really protect my sensitive components?
A3: Yes. This station features tip-to-ground resistance of < 2Ω and tip-to-ground potential of < 2mV, which meet industry standards for ESD (electrostatic discharge) safety. This design safely dissipates static electricity from the soldering tip, preventing it from passing through and damaging sensitive components such as MOSFETs, ICs, microprocessors, and other static-sensitive devices commonly found in PCB boards, smartphones, and laptops. For maximum protection, ensure your workbench and wrist strap are also properly grounded.

Tips: How to choose the right soldering station?

• For fine SMD and phone repairs, choose precision control and micro tips. For heavy connectors and ground planes, opt for 70w power and chisel tips. Consider benchtop vs. portable use.
• Match the station voltage to your mains (AC220V). Ensure 70W output meets your heating and recovery needs. For 110V regions, use a suitable converter.
• For static-sensitive components, require ESD protection (<2Ω, <2mV). In shared or industrial settings, a password lock prevents unauthorized changes.
• Look for adjustable temperature (200–480°C), digital display, preset memory, calibration, and 900 series tip compatibility. Extra features like °C/°F switch and cleaning stand are optional.
