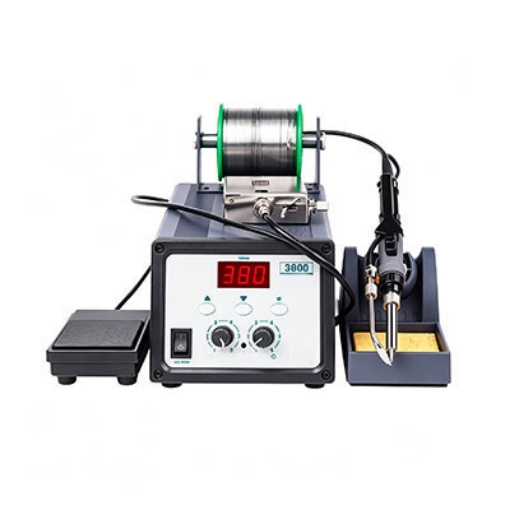

A professional temperature-controlled soldering station with automatic solder feed and dual activation modes. High-frequency heating ensures stable power and quick response, and digital controls simplify adjustments. ESD-safe and built for production use, this industrial soldering station delivers consistent, high-quality results for electronics assembly.

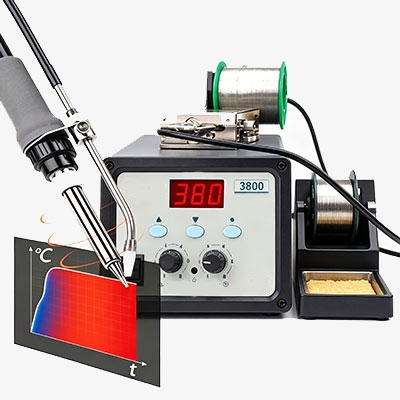

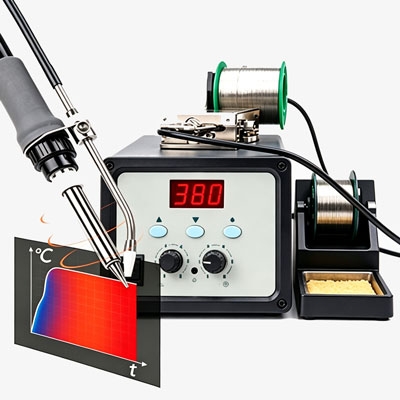

High Frequency Induction Heating System
- 130 watts of high-frequency power enables warm-up in approximately 12 seconds, minimizing idle time.
- Instant temperature recovery keeps the tip stable even when soldering large joints or ground planes continuously.
- The output power automatically adapts to the thermal demand of the workpiece, handling both miniature SMD components and bulky through-hole connections with ease.
- Low-voltage 36V operation enhances operator safety while maintaining high output capacity.
- Digital calibration and a wide temperature range from 50 to 600 degrees Celsius provide precise control for all lead-free and lead-based soldering tasks.
Intelligent Automatic Solder Feeding System
- Feed speed is adjustable from 2.7 to 27 millimeters per second, accommodating different wire diameters and joint types.
- Feed length can be set from 0 to 150 millimeters, while retract time (0 to 0.9 seconds) prevents excess solder and minimizes waste.
- Two activation methods are available: a foot pedal for hands-free operation and a hand button for quick, single-handed use.
- The feeding mechanism can be detached, allowing the iron to be used as a conventional manual soldering tool when the automatic function is not required.
- Stepper motor operation generates low heat and runs reliably over extended production shifts, ensuring consistent performance.
Applications
SISCO 130W soldering station with automatic wire feeder is ideal for electronics manufacturing, PCB assembly, automotive electronics, appliance repair, and industrial maintenance. It excels in production lines requiring high throughput and consistent joint quality. The automatic feed system supports fine-pitch SMD work and heavy-ground soldering. It also suits rework stations, prototyping labs, and service centers where precision and reliability are essential.
Automotive Electronics
Electronics Manufacturing
Home Appliance Repair
Laboratories
| Model | SISCO-SS-3800 |
| Power (Max) | 130 W |
| Operating Voltage | AC 220V / 50Hz |
| Output Voltage | 36V |
| Temperature Range | 50°C – 600°C |
| Temperature Calibration | Digital correction |
| Heating Element | High-frequency eddy current (pure silver core) |
| Standard Tip Series | 200 series |
| Warm-up Time | Approximately 12 seconds |
| Tip to Ground Potential | ≤ 2 mV |
| Tip to Ground Resistance | ≤ 2 Ω |
| Housing Surface Resistance | ≤ 2 Ω |
| Fuse Rating | 2A |
| Motor Type | Stepper motor |
| Solder Feed Speed | 2.7 – 27 mm/s |
| Solder Feed Length | 0 – 150 mm |
| Solder Retract Time | 0 – 0.9 s (approx. 0 – 25 mm) |
| Feed Modes | Automatic (1-9) / Manual (0) |
| Compatible Solder Wire Diameters | 0.6 / 0.8 / 1.0 / 1.2 / 1.4 mm |
| Activation Methods | Foot pedal or hand button |

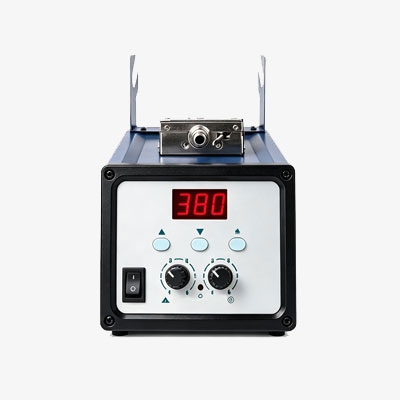

| Host Dimensions (without feeding mechanism) | 230 × 133 × 110 mm |
| Feeding Mechanism Additional Height | 23 mm |
| Packaging Dimensions | 335 × 265 × 265 mm |
| Net Weight | 5.1 kg |
Details
Packing List

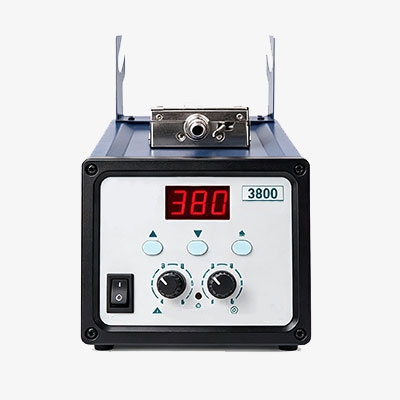

- 1 x Main Unit
- 1 x Hand Button Solder Feed Tube
- 1 x Soldering Iron Handle
- 1 x Foot Pedal
- 1 x Solder Wire Spool
- 1 x Metal Soldering Iron Stand
- 1 x Cleaning Sponge
- 1 x Power Cord
- 1 x Grounding Wire
- 1 x User Manual
- 1 x Certificate of Quality
- 1 x Packaging Box
Q1: How do I activate the automatic solder feeding?
A1: You can activate the feed either by pressing the hand button on the soldering iron handle or by stepping on the foot pedal. Both methods trigger the stepper motor to deliver solder wire at your preset speed and length. The foot pedal frees both hands for component positioning, while the hand button offers quick, one-handed operation.
Q2: Can I adjust the solder feed speed and length for different jobs?
A2: Yes, the feed speed is adjustable from 2.7 to 27 mm/s, and the feed length can be set from 0 to 150 mm. You can also adjust the retract time (0 to 0.9 seconds) to prevent excess solder. These controls allow you to fine-tune the feed for fine-pitch SMD work as well as heavy through-hole soldering.
Q3: Is this soldering station safe for sensitive electronic components?
A3: Absolutely. This station features ESD-safe construction with tip-to-ground potential below 2 mV and resistance below 2 Ω. The low-voltage 36V heater also enhances operator safety. These protections make it ideal for working on static-sensitive devices such as MOSFETs, ICs, and PCBs in professional electronics manufacturing.

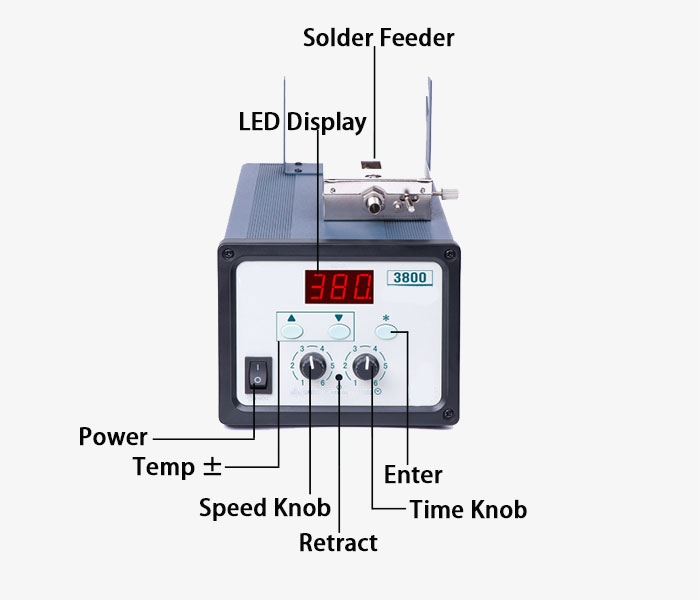

Tips: How to set up and use the automatic solder feeding system?
- Connect the main unit to the power supply and attach the soldering iron handle and solder feed tube securely.
- Load the solder wire spool onto the holder and thread the wire through the feed tube until it reaches the tip.
- Set the desired temperature using the digital control panel based on your solder type and joint requirements.
- Adjust the feed speed, feed length, and retract time according to the wire diameter and joint size.
- Select the activation method: foot pedal for hands-free operation or hand button for single-handed use.
- Turn on the power and allow the tip to reach the set temperature before starting your work.
- Test the feed on a scrap board, fine-tune the parameters as needed, and begin your production soldering tasks.
