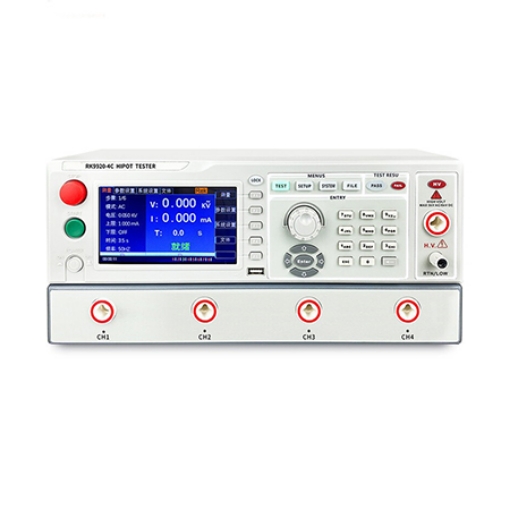

SISCO program-controlled voltage tester is a high-performance safety tester designed with a high-speed MCU and large-scale digital circuitry. AC/DC voltage support function adopts DDS digital signal synthesis technology to produce an accurate, stable, pure, and low-distortion waveform. This program-controlled ultra-high voltage tester is designed to provide high-voltage withstand voltage test and analysis for high-voltage optocouplers, high-voltage relays, high-voltage switches, PV modules and other devices with high insulation resistance.
5-Inch TFT High-Definition Display
- 5-Inch TFT High-Definition Display: The programmable electrical safety tester is equipped with a 5-inch TFT high-definition LCD screen, providing a clear and intuitive interface for monitoring test parameters and results. The large display shows voltage, current, test time, and system status in real time, making it easy for operators to quickly read and analyze data during testing.
- Clear and Intuitive Operation Interface: The 480 * 272 high-resolution TFT screen ensures sharp text and graphics, improving visibility even in complex testing environments. The well-organized user interface allows operators to easily set parameters, switch test modes, and monitor results without confusion.
- Real-Time Test Monitoring: With the large LCD display, users can monitor voltage output, leakage current, and test duration simultaneously. This real-time visualization enhances testing efficiency and ensures accurate control during electrical safety testing procedures.
Multiple Communication Interfaces for Flexible Integration

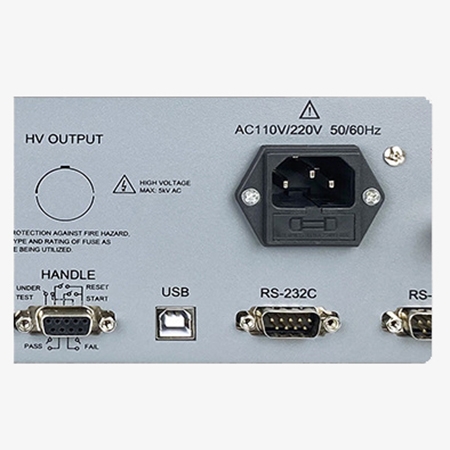

- Multiple Communication Interfaces for Flexible Integration: The electrical safety tester is equipped with multiple communication interfaces, including PLC, RS232C and USB, enabling seamless integration with automated production lines and computer control systems. This flexible connectivity allows users to easily transfer test data, control the tester remotely, and integrate it into modern industrial testing environments.
- Support for Automated Testing Systems: With built-in PLC communication capability, the tester can be connected directly to automated testing equipment or manufacturing systems. This feature allows for fully automated safety testing processes, improving efficiency and reducing manual operation in high-volume production lines.
- Convenient Data Transmission and Storage: The USB interface allows users to quickly export or store test data for analysis, record keeping, and quality management. Meanwhile, RS232C interfaces provide stable long-distance communication with computers or monitoring systems.

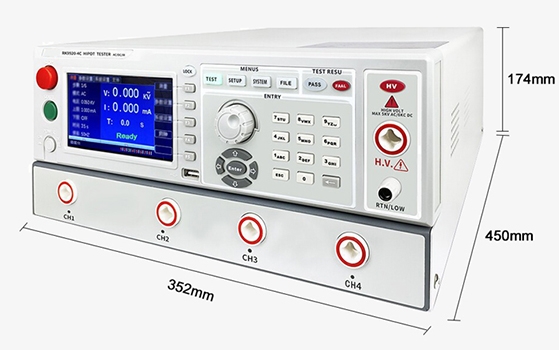

Dimension
Application
SISCO hipot tester is used to test the insulation strength of electrical devices and systems by applying a high voltage to ensure they can withstand electrical stress without breakdown. It is commonly applied in industries such as electronics, automotive, medical devices, telecommunications, power distribution, renewable energy, industrial machinery, and construction to verify electrical safety, prevent failures, and ensure compliance with safety standards.
Industrial
Renewable Energy
Construction
Automobile
Â
| Model | SISCO-HT-RK9920A-4C |
| Channels | 4 Channels |
| AC Output Voltage | 0.05 kV ~ 5.00 kV ±2% |
| DC Output Voltage | 0.05 kV ~ 6.00 kV ±2% |
| AC Current Range | 0 ~ 20 mA ± (2% reading + 5 digits) |
| DC Current Range | 0 ~ 10 mA ± (2% reading + 5 digits) |
| Discharge Function | Automatic discharge after test (DCW) |
| Insulation Test Voltage (DC) | 0.05 kV ~ 5.0 kV ± (1% + 5 digits) |
| Resistance Range | 0.2 MΩ ~ 100.0 GΩ |
| Resistance Accuracy (≥500V, 0.10MΩ–1.0GΩ) | ±5% |
| Resistance Accuracy (1.0GΩ–50.0GΩ) | ±10% |
| Resistance Accuracy (50.0GΩ–100.0GΩ) | ±15% |
| Resistance Accuracy (<500V, 0.10MΩ–1.0GΩ) | ±10% |
| Resistance Accuracy (1.0GΩ–10.0GΩ) | No requirement |
| Arc Detection | Level 1 ~ 9 |
| Voltage Rise Time | 0.1 s ~ 999.9 s |
| Test Time (AC/DC) | 0.2 s ~ 999.9 s |
| Voltage Fall Time | 0.1 s ~ 999.9 s |
| IR Delay Time | 0.2 s ~ 999.9 s |
| Time Accuracy | ± (1% + 0.1 s) |
| Interfaces | Handler, RS232, RS485, USB Device, USB Host |
| Operating Temperature | 10°C ~ 40°C |
| Operating Humidity | ≤ 90% RH |
| Power Supply | 90–121 V AC (60 Hz) / 198–242 V AC (50 Hz) |
| Power Consumption | < 400 VA |
| Dimension | 174 * 450 * 352 |
| Weight | 20 kg |
Q1: What is hipot tester?
A1: AC-DC test transformer, using advanced production equipment, using the coil winding epoxy vacuum casting and CD-type core of the new technology, and similar products compared to oil-immersed transformers, significantly reduce the weight, reduce the volume, in quality to improve the insulation strength and resistance to moisture degree, and effectively weaken the leakage of magnetic and greatly enhance the transformer to withstand the impact of test short-circuit current capacity.
Q2: Is high voltage testing destructive?
A2: Hipot (or high potential testing) is a non-destructive test that goes by many names: overvoltage testing, dielectric breakdown testing, dielectric withstand testing, or insulation resistance testing. Some of all of these tests are designed to make sure that the insulation materials used in your motor are doing their job.
Q3: What is the difference between the hipot and the Megger?
A3: Both instruments apply a relatively high voltage to the insulator and absorb leakage current through the insulator commensurate with its insulation characteristics and condition. However, the megohmmeter gives the operator a measured value, while the hipot acts.
Tips: What are the advantages of a 4-channel hipot tester?
A 4-channel hipot tester offers several key advantages, especially for production and multi-point testing:
- Higher Testing Efficiency: With four channels, the tester can measure multiple products or test points at the same time, significantly reducing overall testing time and increasing throughput in production lines.
- Cost-Effective Solution: Instead of using multiple single-channel testers, a 4-channel unit combines functions into one device, helping reduce equipment cost, space usage, and maintenance requirements.
- Flexible Testing Configurations: Each channel can typically be set with independent test parameters, allowing users to test different products or perform different test conditions simultaneously or sequentially.
- Ideal for Automation: A 4-channel hipot tester can be easily integrated into automated testing systems via interfaces like PLC or RS232, making it perfect for high-volume manufacturing environments.
