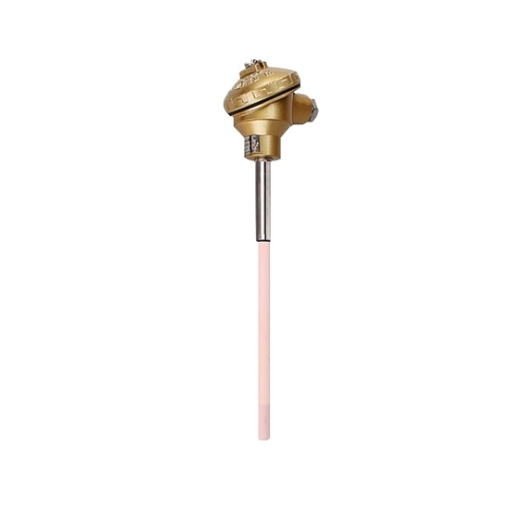

The Type B thermocouple significantly improves high-temperature resistance and anti-interference performance. Its small size, light weight, and easy installation make it widely applicable to various temperature measurement applications.
Superior Temperature Measurement Performance
- The thermocouple B uses high-quality platinum-rhodium wire, with a thermal response time as fast as 2 seconds, ensuring accurate measurement with minimal error and high sensitivity.
- High temperature resistant and durable, it can measure temperatures within the range of 0-1350℃ for extended periods. It is corrosion-resistant, high-temperature resistant, waterproof, and rust-proof.
- The tail wire can be connected to a temperature transmitter with selectable 4-20mA or 0-10V output, offering a flexible application.

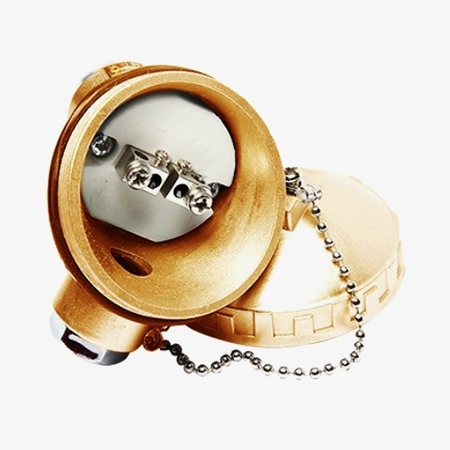

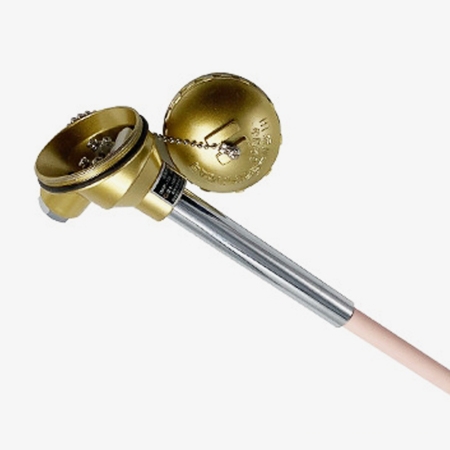

Rugged and Flexible Structural Design
- The stainless steel protective tube has a diameter between 0.5 and 8mm. The thicker the armor wire, the higher the measured temperature. It possesses excellent mechanical strength and compressive strength.
- Easy to bend, it can be bent at will, is compact, lightweight, and easy to install.
- The lead wire uses metal braided PTFE shielded wire, providing superior anti-interference performance, higher temperature resistance and accuracy, and good stability.
Applications
SISCO B type thermocouple is widely used in applications such as industrial furnaces, heat-treating equipment, ovens, and kilns, especially where reducing or vacuum environments are present. It is also common in plastic extrusion and injection molding machines, as well as food processing and HVAC systems that operate within its moderate temperature range.
Industrial Furnaces
Ovens
Kilns
Heat-Treating Equipment
Â
| Model | SISCO-BTT-BA | |
| Type of Sensing Element | B type | |
| Thermocouple Temperature Range | ||
| Category | Platinum Rhodium 30~Platinum Rhodium 6 | |
| Thermo Wire Diameter (mm) | Φ0.5 | |
| Long-term Temperature (℃) | 1600 | |
| Short-term Temperature (℃) | 1800 | |
| Thermowell Application Temperature Range | ||
| Thermowell Material | Long-term Temperature | Short-term Temperature |
| Corundum CT1 | 1600 | 1800 |
| High Alumina CT2 | 1300 | 1600 |
| Nickel-base Wrought Superalloys 3YC52 | 1300 | 1350 |
| Nickel-base Wrought Superalloys GH3039 | 1250 | 1320 |
| Nickel-base Superalloys GH3030 | 1200 | 1250 |
| Heat-resistant Stainless Steel 2Cr25Ni20 | 1200 | 1250 |
| Silicon Carbide | 1100 | 1150 |
| Stainless Steel 316L | 900 | 950 |
| Stainless Steel 1Cr18Ni9Ti | 800 | 900 |
| Selection | ||
| Total Length of Thermowell (L or L*L1) | 300~2150mm (for I1, I2, I3, I4) | |
| 500×500mm, 750×500mm | ||
| 750×750mm (for I5) | ||
| 225~450mm (for I6) | ||
| Branch Number | B1: Single branch | |
| B2: Double branch | ||
| Weight | About 10kg | |
Â

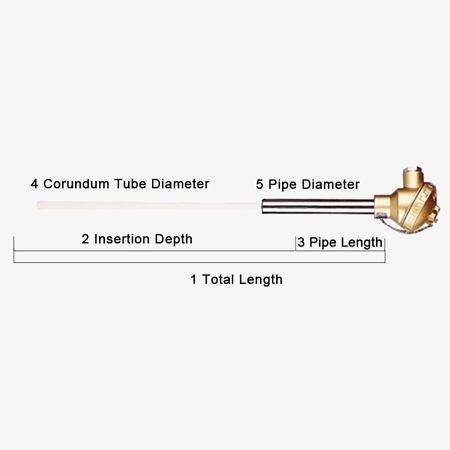

Structural diagram
Â

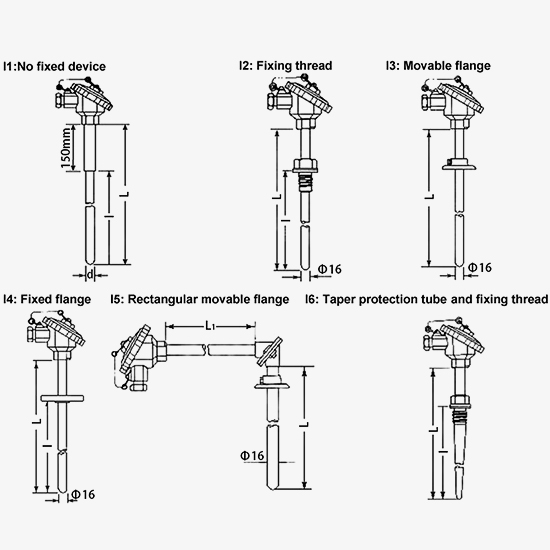

Thermowell Installation Diagram
Â
Thermocouple Assembly Installation Diagram
Q1: What is a thermocouple?
A1: A thermocouple is a commonly used temperature-measuring component in a temperature-measuring instrument. It directly measures the temperature and converts the temperature signal into a term electromotive force signal, which is converted into the temperature of the measured medium by an electric meter (secondary meter). The shape of various thermocouples is often very different due to the needs, but their basic structure is almost the same, usually composed of the hot electrode, insulating sleeve protection tube and junction box, etc., usually with a display instrument, recording instrument and electronic adjustment Used in conjunction with the device.
Q2: What is a K-type thermocouple used for?
A2: As a transmitter for measuring temperature, industrial K-type thermocouples are usually used in conjunction with display instruments, recording instruments and electronic regulators. It can directly measure the surface temperature of liquid, vapor and gaseous media and solids ranging from 0°C to 1000°C in various production processes.
Q3: How does a thermocouple work?
A3: A thermocouple is the connection of two different conductors or semiconductors into a closed circuit. When the temperature of the two junctions is different, an electromotive force will be generated in the circuit. This phenomenon is called the hot spot effect, also known as the Seebeck effect. The end directly used to measure the temperature is called the working end, and the other end is called the cold end. The cold end is directly connected to the instrumentation or supporting equipment, and the display instrument will point out the electromotive force generated by the thermocouple.
Tips: What are the Advantages of Type B Thermocouple?
Its main advantages lie in its extremely high upper temperature limit (approximately 1800℃ for short-term use, 1700℃ for long-term use) and excellent stability. It exhibits strong resistance to oxidation and volatilization at high temperatures, is not prone to degradation, and is particularly stable in oxidizing atmospheres. Since both thermoelectrodes are made of platinum-rhodium alloy, the thermoelectric potential is extremely small at room temperature, typically eliminating the need for compensating wires.
