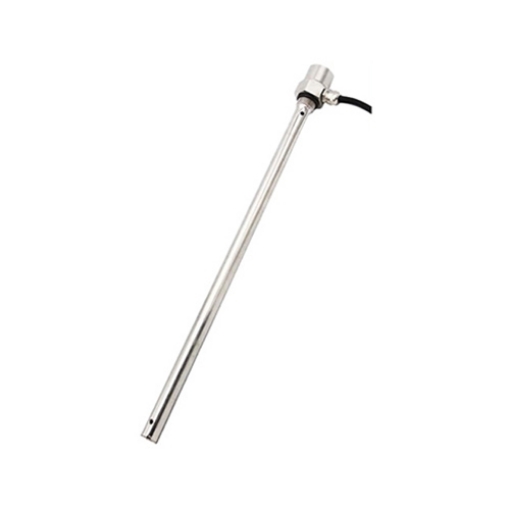

Stainless Steel capacitive fuel level sensor is an industrial-grade device designed for accurate liquid level measurement under various temperature and pressure conditions. Supporting a wide operating temperature range of -35℃ to 70℃ and a pressure range of -0.1MPa to 0.4MPa, the sensor features a durable stainless steel construction with IP67 protection for reliable performance in harsh environments. With low power consumption of less than 10mA, it is suitable for long-term liquid monitoring applications in industrial tanks, reservoirs, and fluid control systems.
Structural Design & Performance Features

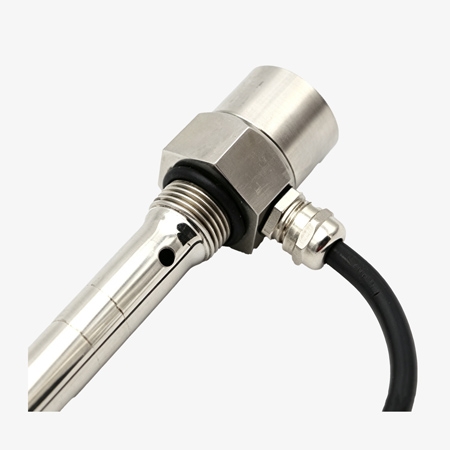

- Atmospheric Vent Hole Design: Stainless Steel capacitive fuel level sensor features a top vent hole structure that improves air pressure balance and liquid flow, enabling faster medium entry, stable measurement, and quick signal response.
- Stainless Steel Integrated Housing: Built with a full stainless steel body, the capacitive fuel level transmitter offers high mechanical strength, corrosion resistance, and durability. It is compatible with fuels, chemicals, beverages, and other liquid media in demanding environments.
- Laser Marking Identification: Laser-engraved model, specifications, and serial numbers provide clear product identification, supporting easy maintenance, tracking, and quality management.
Smart Monitoring & Safety Protection
- Reverse Polarity Protection: Integrated protection circuitry prevents damage caused by incorrect wiring and improves the operational safety of the sensor.
- GPS Remote Monitoring: The capacitive fuel level sensor supports external GPS modules for real-time liquid level data transmission to management systems, enabling remote monitoring of fuel tanks, storage tanks, fuel trucks, and agricultural equipment.
Applications
Stainless steel capacitive fuel level sensor is widely used for liquid level monitoring in fuel tanks, storage tanks, and industrial containers. It supports detection of various liquids, including gasoline, diesel, hydraulic oil, chemical reagents, beverages, and water. Common applications include construction machinery, chemical storage facilities, beverage production systems, and water storage equipment for automatic liquid level control and management.

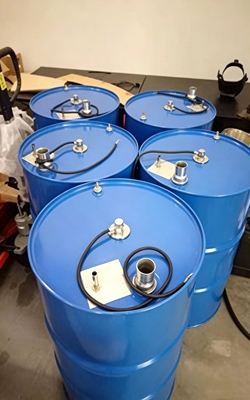

HDPE Chemical Barrel

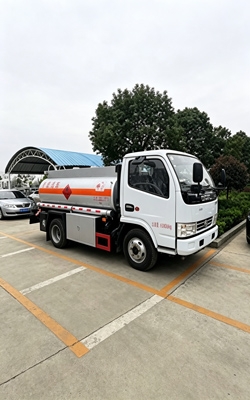

Fuel Tanker Truck

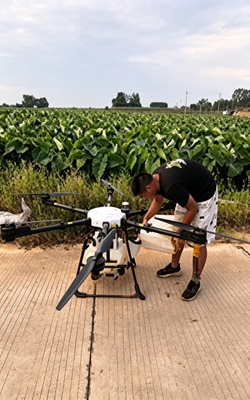

Agricultural Plant Protection

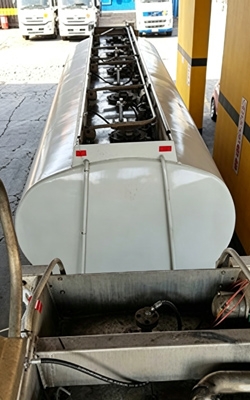

Tanker Inner Storage Vessel
| Model | SISCO-CLS-GLTV7S |
| Measuring Range | 100~1400mm Optional |
| Power Supply | 5V, 9~36VDC |
| Accuracy | ±1%, 0.5% |
| Resolution | 0.01mm |
| Output Mode | 4~20mA, 0~5V, RS485, RS232 |
| Ambient Temperature | -35~70℃ |
| Rod Diameter | Φ16 |
| Weight | 2kg |
| Pressure Range | -0.1MPa~0.4MPa |
| Operating Current | <10mA |
| Material | Stainless Steel |
| Protection Class | IP67 |
| Explosion-Proof Grade | Exd II CT5 |
| Mounting Method | Standard Flange/Threaded Mount M20×1.5 Optional |

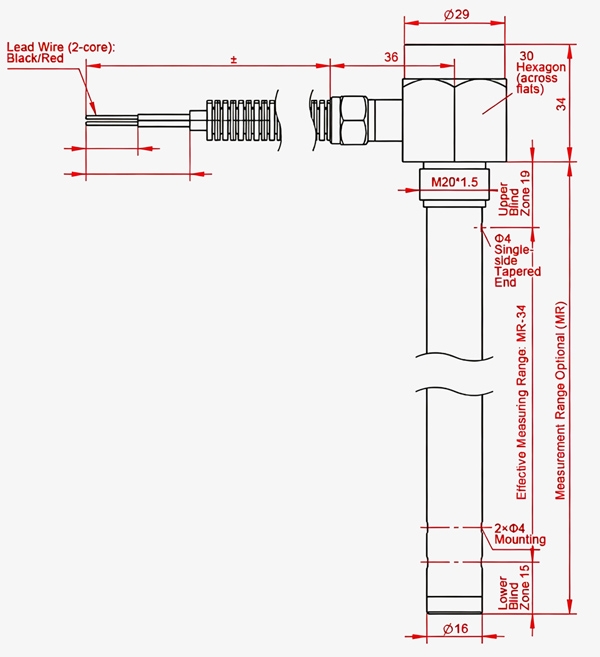

Dimension (unit: mm)
Q1: What types of liquids can the capacitive fuel level sensor detect?
A1: The capacitive fuel level sensor can detect various liquids, including diesel, gasoline, hydraulic oil, lubricating oil, chemical solutions, and water. It is suitable for monitoring fuel, oil, and other compatible liquid media in tanks, storage containers, machinery, and industrial systems. Detection performance may vary depending on the liquid's dielectric properties, so proper calibration is recommended for different applications.
Q2: Can the capacitive fuel level sensor be used for remote fuel monitoring?
A2: Yes, the capacitive fuel level sensor can be used for remote fuel monitoring because it is integrated with GPS modules. It can collect real-time fuel level data and transmit information to a remote platform, enabling online monitoring of fuel tanks, fuel trucks, generators, and construction equipment. This helps improve fuel management, reduce manual inspections, and support digital monitoring applications.
Q3: Can a capacitive fuel level sensor be used for diesel tanks?
A3: Yes, the capacitive fuel level sensor is suitable for diesel tank monitoring. Its stainless steel construction and stable sensing performance make it suitable for diesel tanks used in trucks, generators, construction machinery, and industrial equipment.
Tips: What is the operating temperature range of the capacitive fuel level transmitter?
The capacitive fuel level transmitter operates within a temperature range of -35℃ to 70℃. This wide operating temperature capability allows stable fuel level monitoring in outdoor and industrial environments.
