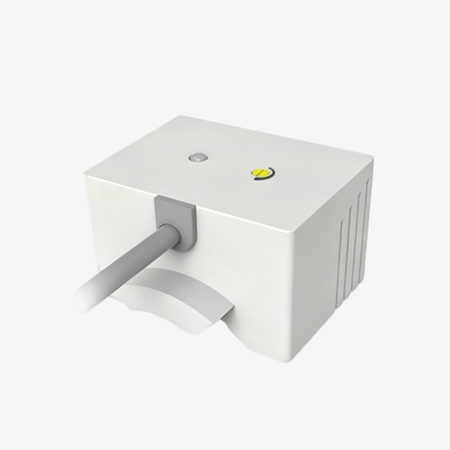

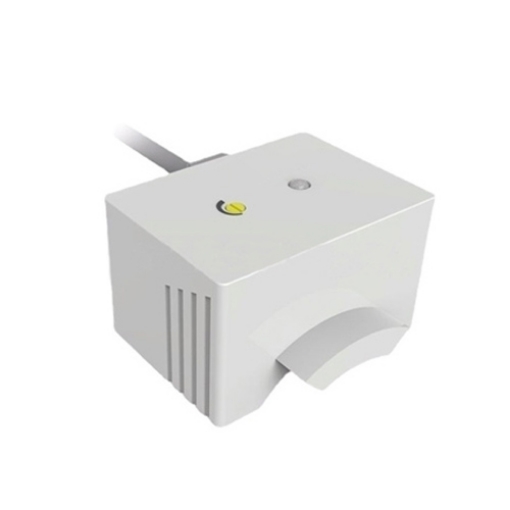

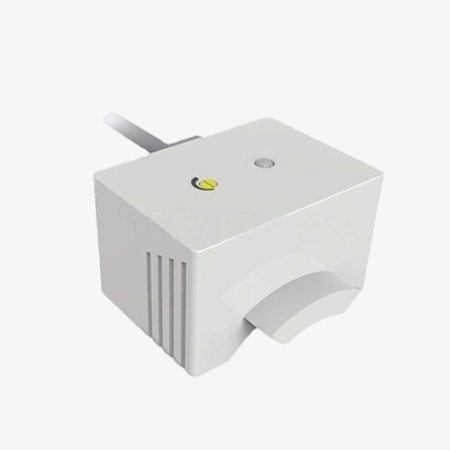

Capacitive level transmitter for liquids features adjustable pipeline mounting for pipes with diameters from 12mm to 26mm. Its compact design allows easy installation without direct contact with the liquid, providing a practical solution for liquid level detection in automation equipment, pipelines, and fluid monitoring systems.
Structural & Installation Design Features
- Designed with dual-specification mounting diameters to accommodate diverse pipeline installation requirements.
- Integrated with a multi-turn potentiometer structure for convenient parameter tuning and calibration.
- Reserved cable tie mounting holes enable rapid fixation on the outer wall of pipelines without complicated accessories.
- Adopts an external clamping housing, which is tailor-made for non-contact liquid level inspection inside pipes, the core working scenario of this capacitive level transmitter for liquid.
Detection Performance & Technical Advantages
- Wide applicable pipe diameter coverage: this capacitive level sensor fits pipelines ranging from φ12mm to φ26mm, and delivers stable penetrating detection through pipe walls with a maximum thickness of 3mm.
- High adjustment precision allows the capacitive level transmitter for liquids to accurately detect various internal media, including liquids and colloids.
- Outstanding temperature drift suppression capability guarantees steady measuring results amid fluctuating ambient temperatures.
Applications
This capacitive level sensor is suited for pipeline liquid level monitoring on photovoltaic industry equipment, such as solar cell stringers and ultrasonic cleaning machines.
Ultrasonic Cleaning Machine
CNC Machine Tool
Beverage Filling Machine
String Welding Machine
Â
| Model | SISCO-CLS-CE15 |
| Mounting | non-flush |
| Adjustable Pipeline | 12-26 mm; wall thickness ≤1.0 mm |
| Output | PNP NO, PNP NC, NPN NO, NPN NC |
| Detection Distance | PNP (2mm), NPN (4mm) |
| Switching Frequency | 60 Hz |
| Switch-point Drift | ≤±20% |
| Load Current | ≤200 mA |
| Residual Voltage | ≤2.5V |
| Current Consumption | ≤15 mA |
| Output Indicator | yellow LED |
| Circuit Protection | short circuit, overload and reverse polarity |
| Ambient Temperature | -10℃~55℃ |
| Ambient Humidity | 35-95%RH |
| Degree of Protection | IP67 |
| Connection Type | 2m PVC cable |
| Housing Material | PBT |

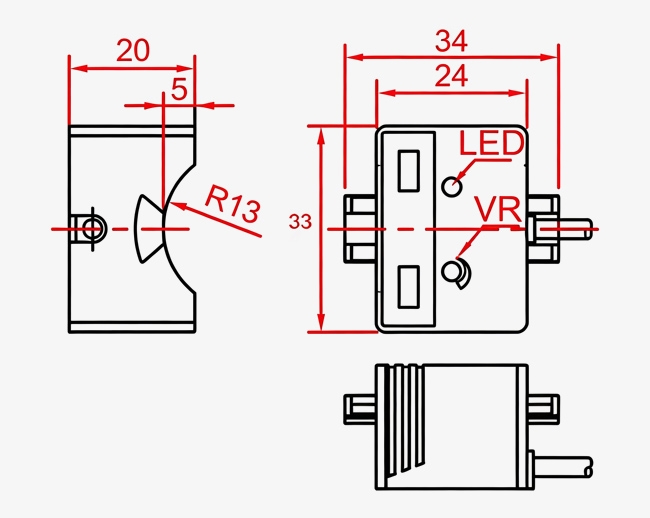

Dimensions (unit: mm)

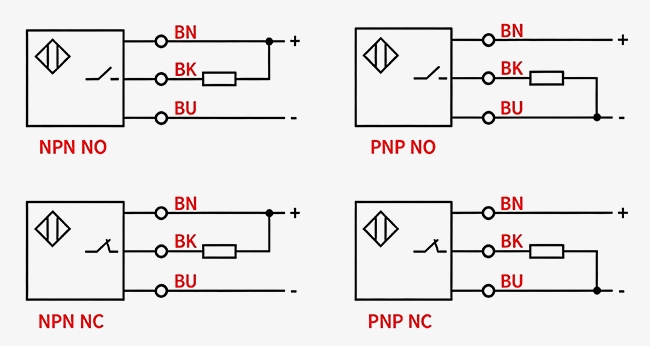

Wiring Diagram
Q1: Can the capacitive level transmitter be used for liquid shortage detection?
A1: Yes, the capacitive level transmitter can be used for liquid shortage detection by monitoring whether liquid reaches the preset sensing point. When the liquid level drops below the detection position, the sensor changes its output signal and sends feedback to connected control systems, such as PLCs or pumps. This makes it suitable for preventing dry running, maintaining liquid supply, and improving automatic level control in pipelines and equipment.
Q2: What causes false detection in this capacitive level transmitter?
A2: False detection in a capacitive level transmitter can be caused by factors such as incorrect installation, unsuitable pipe materials, excessive wall thickness, improper sensitivity adjustment, or strong electrical interference. Changes in the liquid properties or environmental conditions may also affect sensing performance.Â
Q3: Can this capacitive level transmitter be used for pipeline liquid monitoring?
A3: Yes, this capacitive level transmitter is designed for pipeline liquid monitoring and can detect liquid presence in pipes with an outer diameter of 12-26 mm. The non-flush mounting design allows easy installation without direct contact with the liquid.
Tips: What output should I choose for the capacitive level transmitter?
The suitable output depends on the control system and wiring requirements. This capacitive level transmitter supports multiple output options, including PNP NO, PNP NC, NPN NO, and NPN NC, allowing flexible connection with PLCs, controllers, and automation equipment. Choose a PNP output for systems designed with positive switching signals, or an NPN output for systems using negative switching signals. The NO or NC mode can be selected according to whether the control system requires a normally open or normally closed signal.
