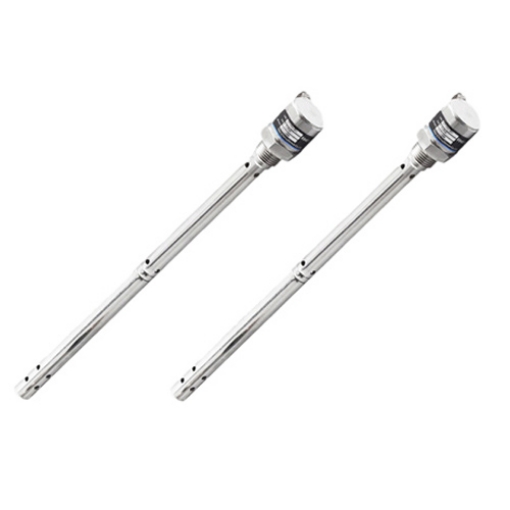

Precision capacitive tank level transmitter provides reliable liquid level measurement with accuracy options of ±0.5% FS and ±1% FS. Its low zero drift and sensitivity drift of ±0.05% FS/℃ help maintain measurement consistency under changing temperatures. The 316 stainless steel probe and IP65 protection design ensure long-term durability for industrial liquid level applications.
Accurate Measurement & Reliable Level Detection
- High-Precision Linear Output: This capacitive tank level sensor delivers accurate linear output and stable measurement signals, ensuring reliable liquid level detection with consistent performance in industrial tanks and process monitoring systems.
- Adjustable Output Damping Time: The adjustable damping function allows users to optimize the sensor response time based on different application requirements, improving signal stability in fluctuating operating conditions.
- Strong Anti-Interference & Vibration Resistance: Designed to withstand electrical interference and mechanical vibration, this sensor maintains reliable operation in complex industrial environments where measurement stability is critical.
Durable Design & Comprehensive Protection
- Built-In Circuit Protection: Integrated surge protection, overcurrent protection, and reverse polarity protection help prevent damage caused by voltage fluctuations, excessive current, or incorrect wiring, improving overall sensor reliability.
- Stainless Steel Construction: The rugged stainless steel housing provides excellent mechanical strength and corrosion resistance, making the capacitive tank level sensor suitable for long-term use in demanding liquid level measurement applications.
Applications
Capacitive tank level sensor is commonly used to measure the level of non-conductive liquids in tanks and containers. It is widely applied in industrial process control, automotive fuel tank monitoring, tanker trucks, oil storage facilities, and other liquid level measurement systems that require stable and reliable operation.

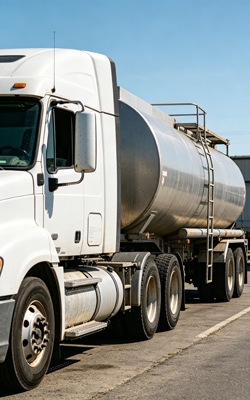

Tanker Truck Oil Level

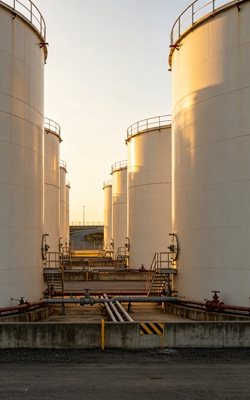

Oil Depot Storage Tank

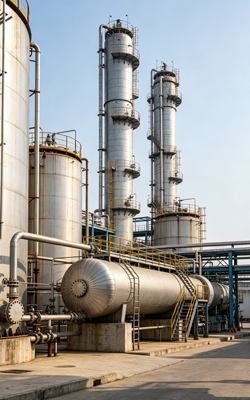

Chemical Storage Tank

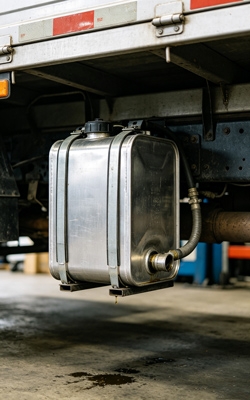

Automotive Fuel Tank
| Model | SISCO-CLS-BRW700-201 |
| Measuring Range (Optional) | 0-500mm, 0-700mm, 0-1000mm, 0-1500mm, 0-2000mm |
| Probe Diameter | φ16mm |
| Signal Output (Optional) | 4-20mA, 0-5VDC, 0-10VDC |
| Signal Wire | 2-Wire, 3-Wire |
| Thread Type (Optional) | M20×1.5, M22×1.5, G1/2 |
| Power Supply | 9~30VDC, 15~30VDC |
| Accuracy | ±0.5 %FS, ±1 %FS |
| Zero Temperature Drift | ±0.05 %FS/℃ |
| Sensitivity Temperature Drift | ±0.05 %FS/℃ |
| Long-term Stability (1 year) | ±0.1 %FS |
| Probe Temperature Resistance | -50℃~+200℃ |
| Protection Grade | IP65 |
| Material | 316 Stainless Steel |
| Connection Type (Optional) | Direct Wire, M12 Connector |

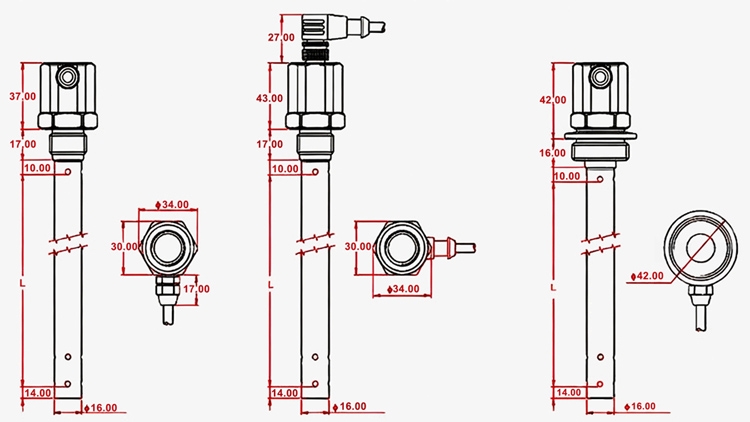

Dimensions (unit: mm)

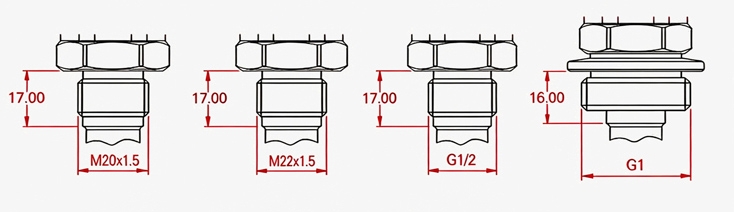

Thread Types
Q1: Is the capacitive tank level sensor suitable for oil measurement?
A1: Yes, the capacitive tank level sensor is suitable for oil measurement, especially for non-conductive liquids such as diesel, fuel, lubricating oil, and hydraulic oil. It detects oil level changes by measuring variations in capacitance caused by the difference between the sensor probe and the liquid medium.
Q2: What is the protection grade of this capacitive tank level sensor?
A2: This capacitive tank level sensor features an IP65 protection rating, which means it is dust-tight and protected against low-pressure water jets from any direction. The IP65-rated design helps the sensor maintain stable performance in industrial environments where dust, moisture, or liquid splashes may occur.
Q3: Can I adjust the response speed of this capacitive tank level sensor?
A3: Yes. The output damping time of this capacitive tank level sensor is adjustable. You can tune it to suppress liquid surface fluctuation and avoid unstable readings caused by sloshing inside the tank.
Tips: Can this capacitive tank level sensor work under vibration conditions?
Yes, this capacitive tank level sensor can work reliably under vibration conditions. It is designed with strong anti-vibration and anti-interference capabilities, allowing stable liquid level measurement in environments with mechanical movement, equipment vibration, or electrical noise.
