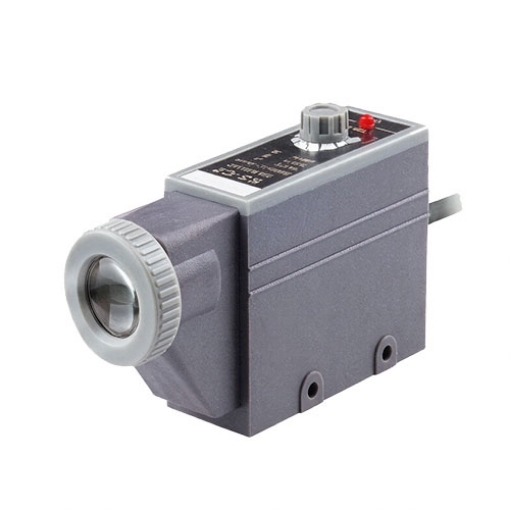

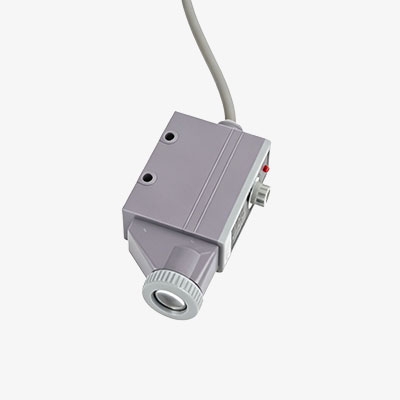

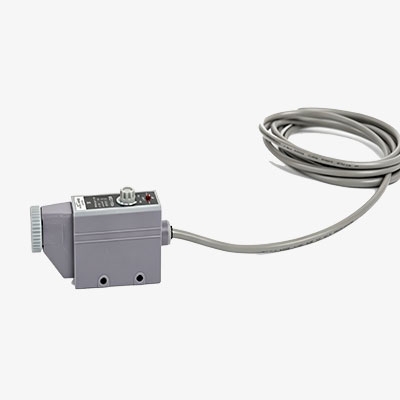

SISCO color mark sensor operates on DC 10–30V±10% with < 45 mA consumption and 200mA max load. It features a metal or engineering plastic shell, IP67 protection, and reverse polarity, short-circuit, over-current, and wrong-connection protection. The color mark sensor includes a 2m PVC four-core shielded cable.
RGBW Multi-Color Detection for Precise Color Mark Sensing
- The color mark sensor adopts red, green, blue, and white light sources, allowing stable detection of different color marks. Adjustable sensitivity helps adapt to various color contrasts and surface conditions.
- The detection range is 10mm±2mm or 9mm, with a small spot size of Φ0.5–Φ1.5 mm. The light rays should be perpendicular to the target surface within ±15°, ensuring consistent and reliable signal output.
- Response time is selectable among 0.1–1ms, 50μs, and 200/500μs, enabling real-time monitoring on high-speed production lines. Fast response reduces missed detection and false triggering.
- The color mark sensor supports light-on and dark-on output modes, with a red LED indicator for easy status checking. Sensitivity is adjustable to fine-tune detection for different color mark applications.
Industrial-Grade NPN Output with Rugged Protection
- The color mark sensor provides NPN output with a maximum load current of 200mA, compatible with PLC and control systems. The supply voltage is DC 10–30V±10%, and the consumption current is below 45mA.
- It includes multiple protection circuits: power reverse polarity protection, short-circuit protection, over-current protection, and wrong connection protection, improving safety and service life.
- The housing is made of metal or engineering plastics, with an IP67 protection class. It operates in temperatures from -15°C to 65°C and stores from -15°C to 80°C.
- A standard 2m Φ5.4 PVC four-core shielded cable with sheath is included. The compact structure allows simple installation without complex mechanical parts.
Applications
SISCO color mark sensor is widely used in packaging, printing, and electronic manufacturing. It performs color mark detection, positioning, and sorting on high-speed production lines. The sensor connects to a PLC for automated control.

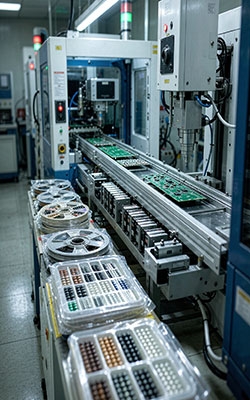

Electronics Manufacturing

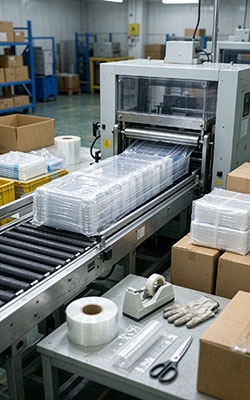

Packaging

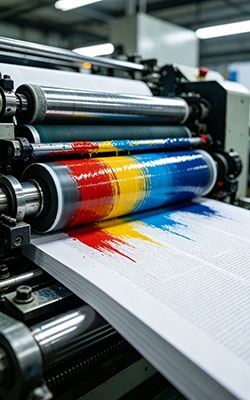

Printing

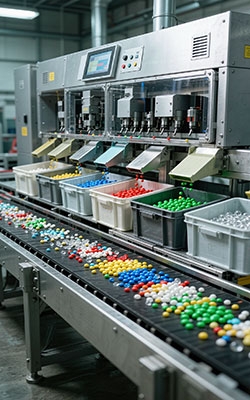

Production Line
| Model | SISCO-CS-CMS |
| Detection Type | Coaxial reflex |
| Detection Range | 10mm±2mm, 9mm |
| Detection Perspective | Light rays perpendicular to the object surface, ±15° |
| Light Source | Red, green, blue, white (RGBW) |
| Spot | Φ0.5–Φ1.5mm |
| Sensitivity | Adjustable |
| Response Time | 0.1–1ms, 50μs, 200μs/500μs |
| Output Type | NPN |
| Output Mode | Light on, dark on |
| Output Instructions | Red LED |
| Output Voltage | VH≤1.5V, VL≤1.2V |
| Supply Voltage | DC 10–30V±10% |
| Consumption Current | <45mA |
| Load Current | 200mA max |
| Circuit Protection | Power reverse polarity protection, short-circuit protection, over-current protection, wrong connection protection |
| Anti-background Light | Incandescent <3000LX, sunlight 10000LX |
| Shell Material | Metal, engineering plastics |
| Cable | Φ5.4 PVC four-core shielded cable with sheath, standard length: 2m |
| Operating Temperature | -15~65°C |
| Storage Temperature | -15~80°C |
| Protection Class | IP67 |
| Weight | 0.18~0.5kg |
Selection table:
| Item | Weight (kg) | Dimension LHW (mm) | Detection range (mm) | Light source | Response time | Output type | Shell material |
| Z3N-TR22 | 0.5 | 80*48*28 | 10±2 | Red | 0.1~1ms | NPN | Metal |
| Z3N-GR22 | 0.5 | 80*48*28 | 10±2 | Green | 0.1~1ms | NPN | Metal |
| Z3N-T22 | 0.5 | 80*48*28 | 10±2 | Red, green | 0.1~1ms | NPN | Metal |
| Z3N-TB22 | 0.5 | 80*48*28 | 10±2 | Blue, green | 0.1~1ms | NPN | Metal |
| Z3N-TW22 | 0.5 | 80*48*28 | 10±2 | Green, white | 0.1~1ms | NPN | Metal |
| KS-TR22 | 0.5 | 88.5*54*26 | 10±2 | Red | 0.1~1ms | NPN | Engineering plastics |
| KS-GR22 | 0.5 | 88.5*54*26 | 10±2 | Green | 0.1~1ms | NPN | Engineering plastics |
| KS-T22 | 0.5 | 88.5*54*26 | 10±2 | Red, green | 0.1~1ms | NPN | Engineering plastics |
| KS-C22 | 0.5 | 88.5*54*26 | 10±2 | Blue, green | 0.1~1ms | NPN | Engineering plastics |
| KS-TW22 | 0.5 | 88.5*54*26 | 10±2 | Green, white | 0.1~1ms | NPN | Engineering plastics |
| BZJ-211 | 0.4 | 85*57*28 | 10±2 | Red/green/blue/white | 50μs | NPN | Metal |
| BZJ-311 | 0.5 | 100*62*38 | 9 | Red/green/blue/white | 50μs | NPN, analog signal | Metal |
| BZJ-411 | 0.2 | 56*40*23 | 9 | Red/green/blue/white | 200μs/500μs | NPN | Metal |
| BZJ-511 | 0.18 | 56*40*23 | 9 | Red/green/blue/white | 200μs/500μs | NPN | Metal |

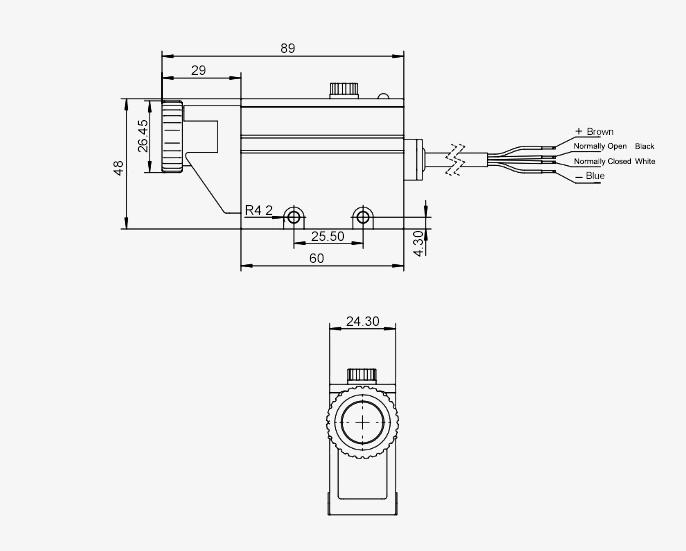

Dimensions (unit: mm)
Q1: What is the detection range and spot size of this color mark sensor?
A1: The color mark sensor offers a detection range of 10mm±2mm or 9mm, with a small spot size of Φ0.5–Φ1.5 mm. The light rays should be perpendicular to the target surface within ±15°, ensuring stable and accurate color mark detection. Sensitivity is also adjustable for different color contrasts.
Q2: Does this color mark sensor support RGBW light sources and fast response?
A2: Yes, the color mark sensor supports red, green, blue, and white (RGBW) light sources, making it suitable for various color mark applications. It also provides selectable response times of 0.1–1ms, 50μs, or 200/500μs, enabling real-time monitoring on high-speed production lines.
Q3: What output type and protection does this color mark sensor provide?
A3: The color mark sensor provides NPN output with selectable light-on and dark-on modes, plus a red LED indicator. It also includes reverse polarity, short-circuit, over-current, and wrong connection protection. With a DC 10–30V±10% supply and IP67 protection, it is reliable for industrial use.
Tips: How to choose the correct light source and ensure stable detection for a color mark sensor?
- Match the light source to the color mark and background. The color mark sensor supports red, green, blue, and white (RGBW) light sources. Select the color that provides the strongest contrast between the mark and its background.
- Adjust sensitivity according to the actual detection distance. The color mark sensor has a detection range of 10mm±2mm or 9mm, and sensitivity is adjustable to fine-tune signal output for different color contrasts.
- Keep the sensor perpendicular to the target surface. Light rays should be perpendicular within ±15° to ensure consistent reflection and stable detection.
- Consider response time and output mode. The color mark sensor offers selectable response times (0.1–1ms, 50μs, 200/500μs) and NPN output with light-on or dark-on modes, matching high-speed line requirements.
