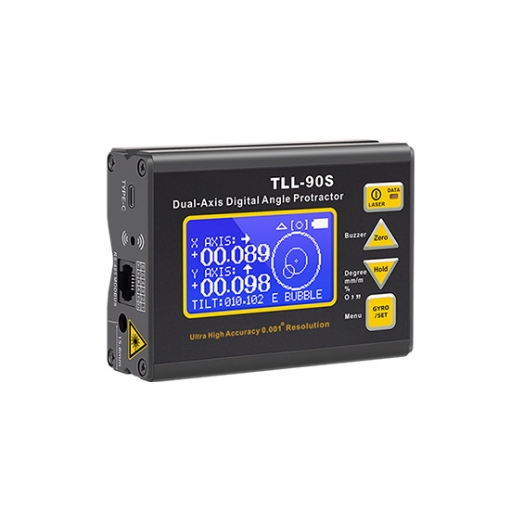

The magnetic digital inclinometer features a strong magnetic base for quick attachment to compatible metal surfaces. This dual axis magnetic mounting design allows hands-free measurement during equipment installation, machine alignment, metal structure inspection, and leveling tasks. It provides a convenient solution for technicians who need to measure surface inclination without continuously holding the instrument in position.
High-Precision Static Tilt Measurement and Dynamic Rotation Monitoring
- The digital Inclinometer supports high-precision static tilt measurement using gravity sensing and dynamic motion or rotation monitoring using a gyroscope.
- The digital Inclinometer offers ultra-high angular measurement accuracy of up to 0.005°, suitable for precision alignment and angle measurement applications.

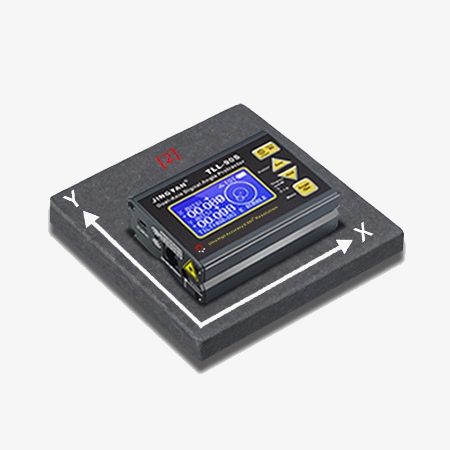

- The digital Inclinometer supports single-axis, dual-axis, and gyroscope-based measurement to meet different industrial measurement requirements.
- Switch between degrees (°), millimeters per meter (mm/m), slope (%), and degrees-minutes-seconds (DMS).
Strong Magnetic Base for Secure Attachment and Hands-Free Angle Measurement
- The magnetic digital inclinometer features a strong magnetic base for secure attachment to compatible metal surfaces, allowing convenient hands-free angle measurement.

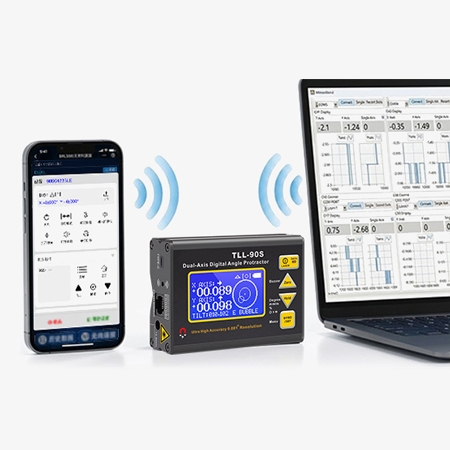

- Features an integrated wireless module with a dedicated communication channel for wireless data transmission.
- Supports industrial RS485 communication and the Modbus protocol for reliable data exchange with automation systems.
- The SISCO digital inclinometer supports long-distance data transmission and easy integration with PLCs, industrial PCs, HMI panels, and other industrial automation systems.
Applications
A digital inclinometer is widely used in many industries where accurate angle, slope, and level measurement is required. In the construction field, it helps check wall verticality, roof pitch, and pipe installation angles. In woodworking and furniture making, it ensures precise cutting and alignment. In the automotive industry, it is used to measure chassis tilt and wheel alignment. In machinery and manufacturing, it helps with equipment installation and calibration.
Home decoration
Mechanical Machining
Laboratory
Construction Industry
| Model | SISCO-DMI-TLL-90S |
| Display Response Time | 0.3 s |
| Audio Sound Level | 75 dB @ 10 cm |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -10 to 60°C |
| Laser Class | Class 2 |
| Laser Wavelength | 650 nm |
| Communication Interfaces | Wireless Bluetooth / Type-C / RJ11 |
| Communication Mode | Dual wireless transmission / USB virtual serial port / RS-485 |
| Communication Protocols | SCPI / MODBUS RTU |
| Software Support | PC Software / Mobile Applet |
| Zero Offset Drift per °C | 0.002° (Typical) |
| User Interface | Monochrome Backlit LCD |
| Power Supply | Rechargeable 3.7 V Lithium-Polymer Battery |
| Charging Port | DC 5 V, 1 A, Type-C |
| Power Consumption | Standby: 18 μA; Operating: 50 mA |
| Battery Life | Standby: 3,600 h; Operating: 13 h |
| Magnetic Base | Located on the Bottom and Back |
| Material | Anodized Aluminum Alloy |
| Dimensions | 94 × 68 × 29 mm |
| Weight | 213g |

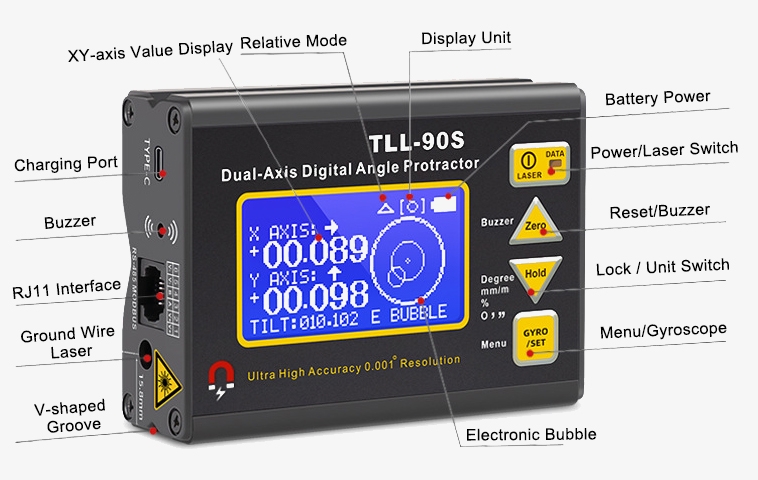

Details
Q1: What is a digital inclinometer?
A1: A digital inclinometer is a precision measuring instrument used to measure angles, tilt, and inclination. It is commonly used in industrial alignment, machinery installation, equipment leveling, and structural measurement.
Q2: What measurement modes does the digital inclinometer support?
A2: The digital inclinometer supports single-axis, dual-axis, and gyroscope-based measurement. It can measure static tilt using gravity sensing and monitor dynamic motion or rotation using a gyroscope.
Q3: What is the measurement accuracy of this digital inclinometer?
A3: This high-precision digital inclinometer offers measurement accuracy of up to 0.005°, making it suitable for applications requiring precise angle measurement, equipment alignment, and leveling.
Tips: Does the digital inclinometer support RS485 and Modbus communication?
Yes, the digital inclinometer supports industrial RS485 communication and the Modbus protocol. It can connect to compatible PLCs, industrial PCs, and HMI panels for data transmission and integration into industrial automation systems.
