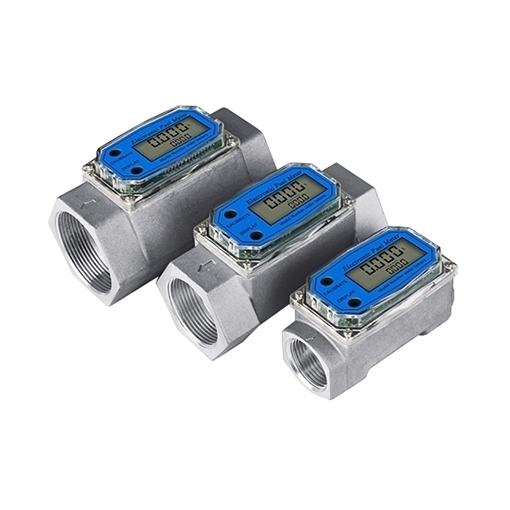

    1/2/3 inch Digital Turbine Flow Meter for Diesel/Water

    Low-price digital turbine flow meter for sale online. The turbine meter has an optional port size of 1 inch, 1 1/2 inch, 2 inch, 2 1/2 inch and 3 inch, designed for accurate flow monitoring of various liquids, including diesel, gas, kerosene, methanol, and water.
    SKU: SISCO-FM-K24
    *
    $120.25
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    1 inch/1.5 inch/2 inch/2.5 inch/3 inch digital turbine flow meter has stainless steel or aluminum alloy turbine-type flow meters that can be selected according to your applications. The turbine flowmeter with high accuracy, good repeatability, simple structure.

    Digital turbine flow meter detail

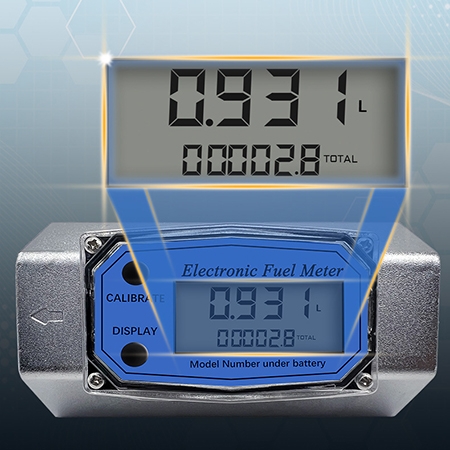

    The turbine meter design with a high-definition LCD display

    • The high-definition LCD provides sharp, easy-to-read measurements, even in low-light conditions, ensuring accurate monitoring at a glance.
    • The intuitive display layout allows users to easily navigate through different settings and view real-time flow data, including total volume, flow rate, and diagnostic information.
    • Users can adjust the display settings to show different units of measurement or select specific data points to be highlighted, making the digital turbine flow meter versatile for different applications.
    Digital turbine flow meter detail

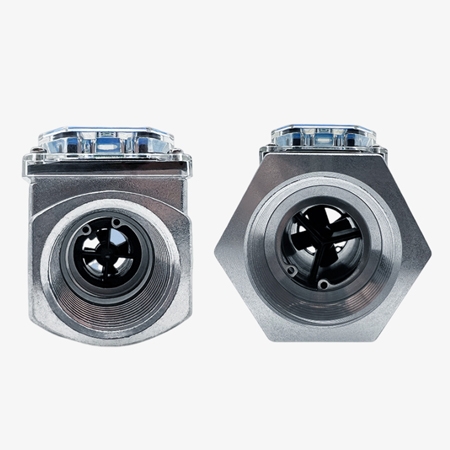

    The turbine meter design with high-performance turbine

    • The high-performance turbine ensures precise measurement of fluid flow, even at varying flow rates, providing reliable data for critical applications.
    • The turbine flowmeter built with robust materials, the turbine is designed to withstand high pressures and corrosive fluids, ensuring long-term durability and consistent performance.
    • Suitable for a variety of fluids, including water, oils, and chemicals, the high-performance turbine makes this flow meter versatile across different industries.

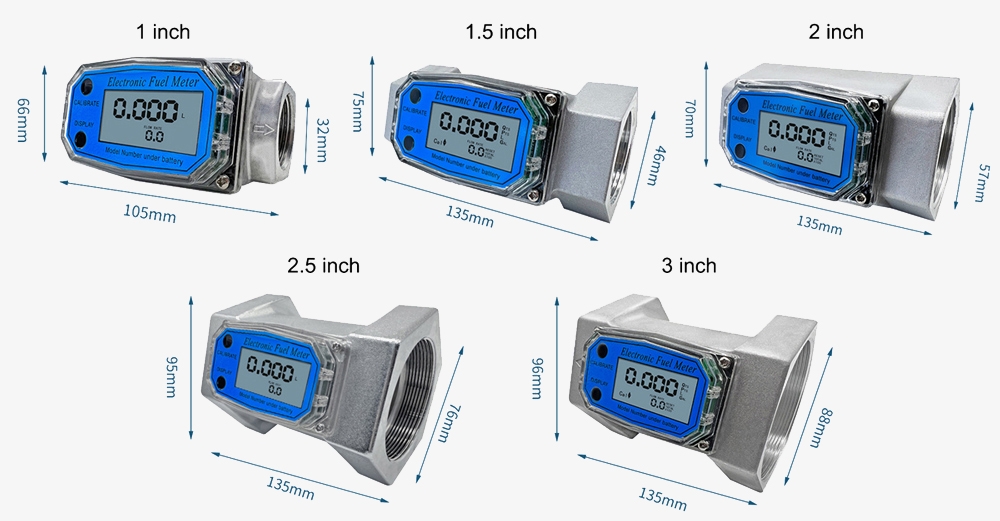

    Dimension

    Digital turbine flow meter sizes

    Application

    SISCO flow meter calculates the mass flow rate of the fluid based on the power required to maintain the constant temperature difference. Thermal mass flow meters are commonly used in applications where precise measurement of gas flow is required, such as in biotechnology, medical equipment, scientific research, chemical and petrochemical industry.

    Flow meter for medical equipment

    Medical Equipment

    Flow meter for scientific research

    Scientific Research

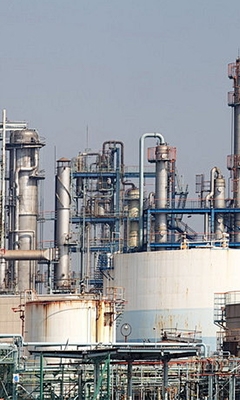

    Flow meter for petrochemical industry

    Petrochemical Industry

    Flow meter for biotechnology

    Biotechnology

    Specs



    Model SISCO-PM-K24
    Nominal Diameter 1 inch 1 1/2 inch 2 inch 2 1/2 inch 3 inch
    Minimum Flow 10 L/min 40 L/min 60 L/min 80 L/min 80 L/min
    Maximum Flow 100 L/min 500 L/min 1000 L/min 1000 L/min 1000 L/min
    Weight 0.35 kg 0.6kg 0.85kg 1.1 kg 0.9kg
    Material Stainless Steel Aluminum Alloy
    Applicable Media Diesel, Gas, Kerosene, Methanol, Water, etc.
    Connection Method Thread
    Unit of Measurement QTS, PTS, L, GAL, m3
    Measurement Accuracy ±1%
    Maximum Working Pressure 0.6 Mpa
    Working Temperature -25℃~+70℃
    Single Measurement Range 9999
    Cumulative Measurement Range 29999999

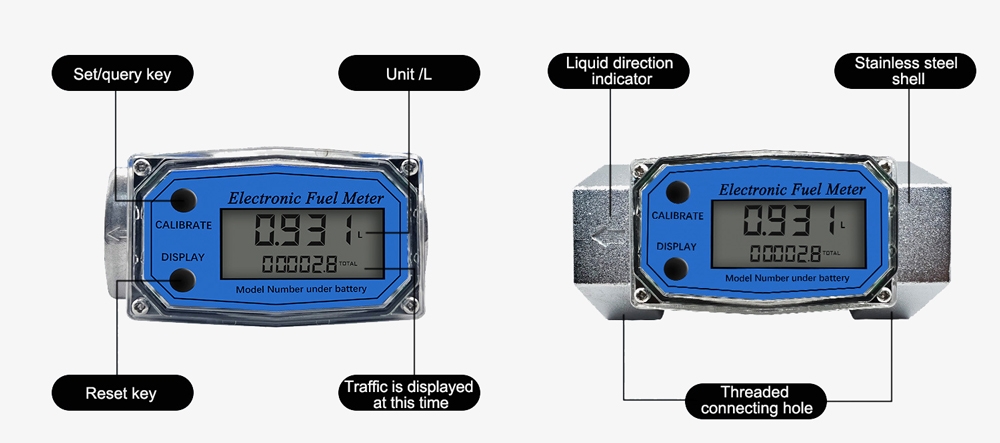

    Detail

    Digital turbine flow meter detail

    FAQs

    Q1: What is a flow meter?
    A1: A flow meter is a device that measures the flow rate or volume of a fluid, such as a liquid or gas, as it moves through a pipe or conduit. It provides real-time data on the amount of fluid passing a specific point, which is crucial for monitoring and controlling industrial processes, ensuring accurate dosing, and optimizing system performance. Flow meters come in various types and technologies, each suited for different applications and fluid properties.

    Q2: How often should flow meters be calibrated?
    A2: The frequency of flow meter calibration depends on several factors, including:

    1. Application Requirements: High-precision applications may require more frequent calibration.
    2. Fluid Type: Corrosive or abrasive fluids may necessitate more regular checks.
    3. Operating Conditions: Extreme temperatures, pressures, or high flow rates can affect accuracy.
    4. Manufacturer Recommendations: Follow the guidelines provided by the flow meter manufacturer.
    5. Regulatory Standards: Some industries have specific calibration requirements.

    As a general rule, flow meters are often calibrated annually, but this can vary. It’s also advisable to calibrate whenever there is a significant change in process conditions or if the flow meter shows signs of drift or performance issues.

    Q3: What factors can affect flow meter accuracy?
    A3: Several factors can affect the accuracy of a flow meter:

    • Fluid Properties: Changes in fluid density, viscosity, or temperature can impact accuracy. For instance, varying fluid densities can affect measurement, especially in vortex and electromagnetic flow meters.
    • Flow Conditions: Turbulence, flow profile, and pressure drops can influence measurements. Inaccurate readings can occur if the flow is not properly aligned with the meter.
    • Installation Issues: Incorrect installation, such as improper pipe alignment or insufficient straight pipe sections before and after the meter, can cause inaccuracies.
    • Temperature: Extreme temperatures can affect fluid properties and the meter's components, leading to measurement errors.
    • Pressure: Variations in pressure can alter fluid density and viscosity, impacting flow meter accuracy.

    Tips: What is a Digital Turbine Flow Meter?

    A digital turbine flow meter is a sophisticated device used to measure the flow rate and total volume of liquids within a pipeline. It operates based on a turbine mechanism: as the liquid flows through the meter, it drives a turbine rotor, which spins at a rate proportional to the flow velocity. This rotational speed is then translated into an electronic signal by the meter's internal sensors. The digital display provides precise, real-time readings of both the instantaneous flow rate and the total volume of liquid that has passed through the meter. Known for its accuracy and reliability, this type of flow meter is commonly used in various industries, including manufacturing, chemical processing, and water treatment, due to its ability to handle different types of fluids and its durability in harsh conditions. The digital readout simplifies monitoring and data recording, making it an essential tool for precise flow measurement and management.

    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
