The gloss tester's core advantage lies in its non-contact, high-speed testing capability. It is adaptable to various special samples on production lines and offers four measurement modes, making it an efficient and intelligent choice for online gloss testing in industrial production lines.
High Precision Multi-Mode

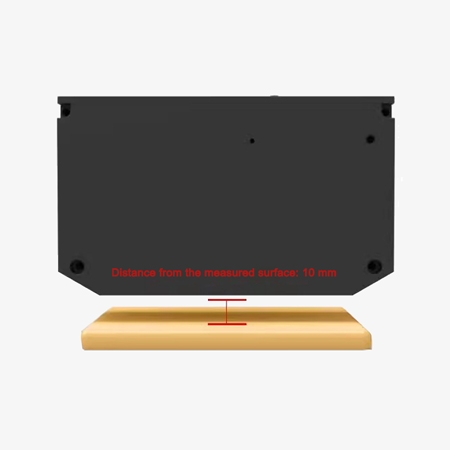

- Non-contact measurement, supporting measurements at a distance of 10.0mm ± 0.1mm from the measured surface, ensuring a parallelism of 0.2 degrees between the measured surface and the measurement aperture surface. Avoids sample cross-contamination; single measurement takes as little as 0.2 seconds.
- ±0.5GU within the 0~100GU range; ±0.5% of the reading within the 100~1000GU range, ensuring stable and reliable data.
- Four measurement modes are provided to meet different needs: Basic mode, Statistical mode (displays average, standard deviation, maximum/minimum values), Continuous mode (quickly checks the uniformity of large-area samples), and Quality Control mode (compares measurement results with standard samples).
Intelligent Calibration and Large-Capacity Storage
- Equipped with a professional standard whiteboard with a reflectivity ≥95%, supporting automatic and manual calibration, featuring intelligent automatic diagnostics. It can monitor calibration status in real time, remind users of calibration time, and detect the cleanliness of the standard board, ensuring the stability and accuracy of long-term measurement data.
- The gloss measurement device can store up to 35,000 measurement records (15,000 each in basic and continuous modes, and 10,000 each in quality control and statistical modes). It supports data export and printing, and can also be used with a mini printer to continuously print parameters without a computer.
- The accompanying GQC6 intelligent data processing software enables professional data management, generates QC reports containing data tables and charts, and performs SPC chart trend analysis.
Applications
In the coatings and painting industry, it can be used to monitor the gloss of paint films on the production line in real time, ensuring consistent coatings on car bodies or furniture; in the printing and packaging industry, it is suitable for gloss testing of paper, ink, and plastic films, ensuring the appearance quality of printed materials; in the ceramics and building materials industry, it can measure the specular reflection effect of surfaces such as tiles and marble, controlling the gloss level of products; in the metal and electroplating industry, it can be used for non-contact measurement of high-gloss metal surfaces, avoiding the risk of scratches and achieving efficient quality control.
Packaging Industry
Ceramics Industry

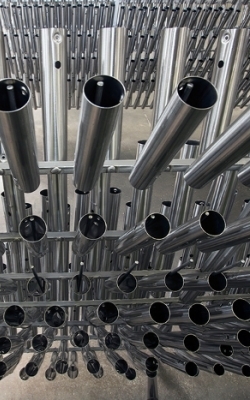

Electroplating Industry

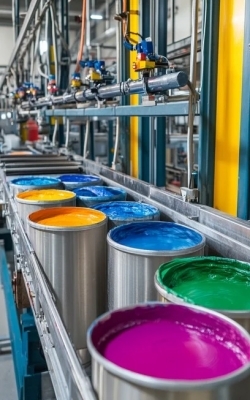

Coatings Industry

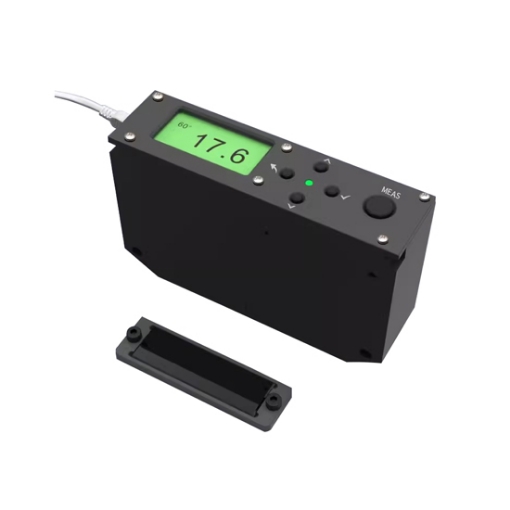

| Model | SISCO-GM-YG60L002 |
| Measuring Angle | 60° |
| Meaaurino spot (mm) | 60°, 9×15 |
| Measurement Range | 60°:0~1000Gu |
| Division Value | 0.1GU |
| Non-contact Distance | Non-contact distance 10.0 mm, 10.1, the parallelism between the measured surface of the sample and the measuring aperture surface is 0.2 degrees |
| Measuring Modes | Basic Mode， Statistical Mode， Continuous Mode， Quality Mode |
| Measuring Time | 0.2s/1s |
| Repeatability | 0~100GU: +0.5GU ; |
| 100~1000GU: +0.5%GU | |
| Test at intervals of 5 seconds under 10mm verification tooling (ensure test distance 10 and parallelism) | |
| Accuracy | Meet the requirements of JJG 696 working gloss meter |
| Auto Shutdown Time | 30s、60s、90s、2m or Never Shut Down |
| Long-time Calibration | With the automatic calibration standard function and manual calibration |
| Storage | 35000pcs (15,000 records in basic mode and continuous mode，10,000 records in quality control mode， and 10,000 records in statistical mode) |
| Display | 2.3-inch black and white display |
| Dimension | 140mm×83mm×38mm |
| Weight | About 500g |
| Power Supply | Use the USB interface power adapter |
| Data Port | USB， Bluetooth |
| PC Software | Quality inspection report printing, more function expansion |
| Operation Temperature | 0~40℃ (32~104°F) |
| Storage TemperatureRange | -20~50℃ (-4~122°F) |
| Humidity | Less than 85%RH, no condensation |
| Standard Accessories | Power adapter， quality management software (official website download or after-sales), calibration standard plate， calibration bracket |
| Optional Accessories | Micro Printer |

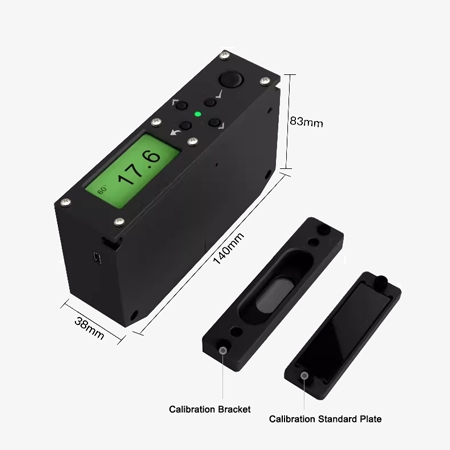

Structural Diagram
A1: What is a gloss meter?
Q1: Gloss meters are used to measure the surface gloss of materials. A gloss meter is used to measure the reflectance of light on the surface of an object, that is, the specular gloss. Depending on the angle of incidence selected during measurement, the results are also different. The larger the angle of incidence, the higher the specular reflectance, the higher the gloss, and vice versa.
A2: What are the measurement angles of the gloss meter?
Q2: Gloss meter, mainly contains three measuring angles, respectively 20 °, 60 °, and 85 °, different measuring angles for different glossy object surfaces.
A3: How to choose the measuring angle of the gloss meter?
Q3: For different object surfaces, the suitable measurement angle is not the same, general materials, generally use a 60 ° gloss meter can be measured, high gloss materials, you can choose a 20 ° gloss meter, for low gloss materials, you can choose 85 ° gloss meter.
Tips: Can the Gloss Meter for Paint operate continuously on the Production Line?
Besides handheld use, it supports continuous measurement mode and allows for quick inspections at set time intervals. Combined with its non-contact characteristics, it is ideal for integration into automated production lines, enabling 24/7 online quality control.
