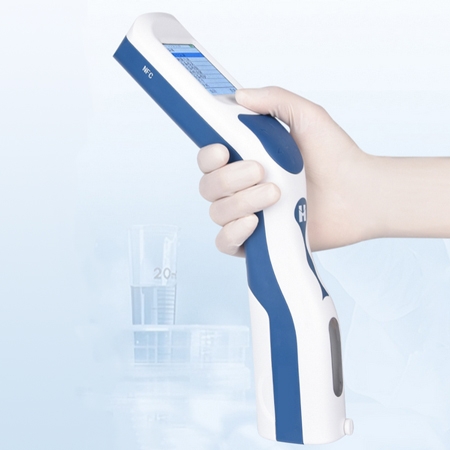

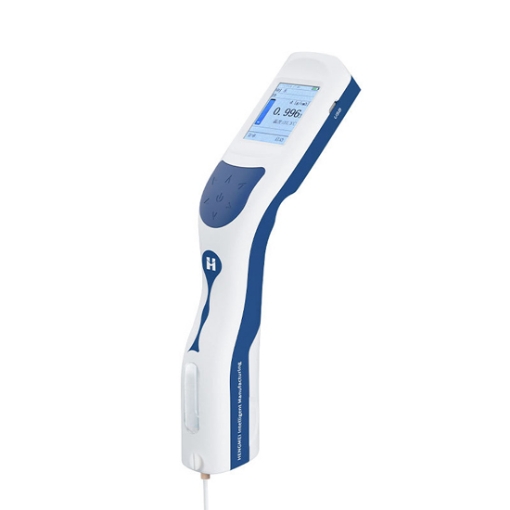

Digital density meter adopts a U tube measuring system, providing stable and repeatable results across a wide range of liquid samples. The built-in suction pump requires only a small sample volume, making the testing process both efficient and user-friendly.
Quick and Accurate Measurement
- Digital density meter quickly and accurately measures liquid density and temperature, with built-in functions for alcohol, sugar, sulfuric acid, and Plato concentration calculations, as well as customizable formulas.
- Liquid density meter is equipped with a 2.4-inch full-color LCD screen, offering clear digital display and diverse measurement data.
- Ergonomic handheld design allows comfortable one-handed operation during measurement.

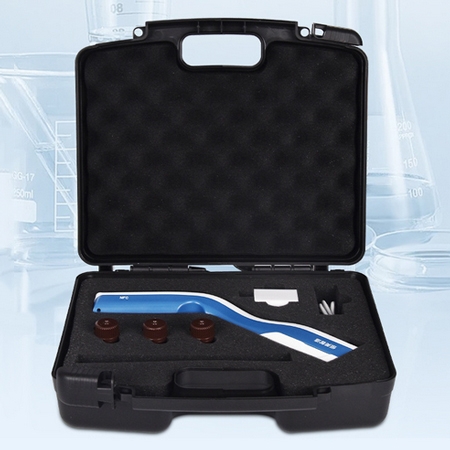

- Portable carrying case design makes it suitable for on-site and mobile testing applications.
Large memory stores 1100 results for easy review
- Optional Bluetooth printing and USB connectivity enable data transfer to USB drives or computers, with instant wireless printing available via Bluetooth printer.
- Large-capacity memory stores up to 1100 sets of test results for easy review and management.
- Built-in suction pump extracts approximately 1.0–2.3 ml of liquid sample efficiently.
- Quick-release pump design ensures easy cleaning and convenient pump replacement.
Applications
SISCO density meter is widely used in the chemical, food, petroleum, and pharmaceutical industries for accurate measurement and quality control. Density meter provides reliable data for process monitoring, product consistency, and research applications across these fields.
Food
Petroleum
Pharmaceutical
Chemical
Â
| Model | SISCO-DM-HMDS | |
| Density | Measuring range | 0.0000~3.0000 g/cm³ |
| Resolution | 0.0001 g/cm³ | |
| Accuracy | 0.001 g/cm³ | |
| Repeatability | 0.0005 g/cm³ | |
| Temperature | Measuring range | 0.0~50.0°C |
| Resolution | 0.1°C | |
| Accuracy | ±0.2°C | |
| Repeatability | 0.1°C | |
| Printer | Optional wireless thermal printer, using 55x30mm printing paper roll | |
| Data Communication | USB, WIFI, Bluetooth, NFC | |
| Scanner | supports barcodes and QR codes | |
| RFID Card | Supports NFC reading and writing card function | |
| Storage | 1000 pieces of historical data | |
| Operating Conditions | Ambient temperature |  0℃--50℃ |
| Ambient humidity: | 0-80%RH | |
| Altitude | Used below 2000 meters | |
| Storage environment temperature | 0-40℃ | |
| relative humidity | 0-50%RH | |
| Built-in Battery | 3.7V/3000mAH lithium-ion battery | |
| Power Parameters | 5V2A power adapter | |
| Outline Dimensions | 150*57*271mm | |
| Weight | 350g | |
Q1: What liquids can the digital density meter measure?
A1: The digital density meter can measure a wide range of liquids, including water, alcohol, sugar solutions, oils, and chemical solutions.
Q2: Can I calculate concentrations other than the built-in ones?
A2: Yes, the meter allows users to create custom concentration formulas in addition to built-in calculations for alcohol, sugar, sulfuric acid, and Plato concentrations.
Q3: How is the measurement data stored and accessed?
A3: The device has a large memory that can store up to 1100 test results, which can be easily reviewed on the screen or exported via USB or Bluetooth.
Tips: Is the digital density meter suitable for on-site testing?
Yes, the digital density meter is ideal for on-site testing thanks to its portable carrying case and ergonomic handheld design for easy one-handed operation. The built-in suction pump, quick-release system, and large memory with USB/Bluetooth connectivity make sample collection, cleaning, and data management fast and convenient in the field.
