SISCO programmable AC/DC hipot tester is equipped with PLC interface, RS232C, RS485, USB device, and USB Host interface, which can easily form a comprehensive test system with a computer or PLC. The safety tester integrates AC/DC hipot testing, insulation resistance measurement, and multi-channel scanning, allowing multiple test points to be evaluated in a single cycle.

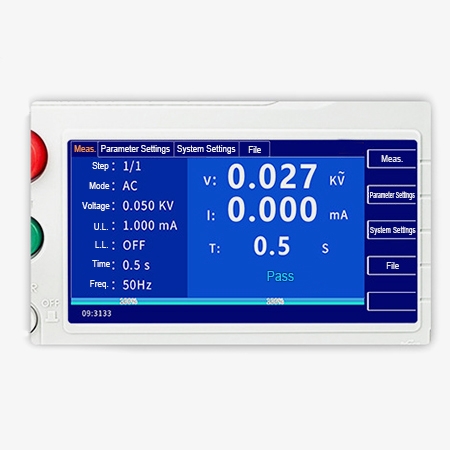

5-Inch TFT-LCD HD Display
- 5-Inch TFT-LCD HD Display: Equipped with a large high-resolution screen that provides clear and detailed visualization of test parameters and results.
- Enhanced Visibility: The bright and sharp display ensures excellent readability from different angles, making it ideal for both laboratory and production environments.
- Multi-Parameter Display: Allows simultaneous viewing of voltage, current, resistance, and test time, improving monitoring efficiency during testing.
- Intuitive User Interface: The TFT-LCD screen supports a well-structured and user-friendly interface, making operation simple and reducing setup time.
- Clear Pass/Fail Indication: Displays test results with clear PASS/FAIL status, enabling quick decision-making and improving workflow efficiency.

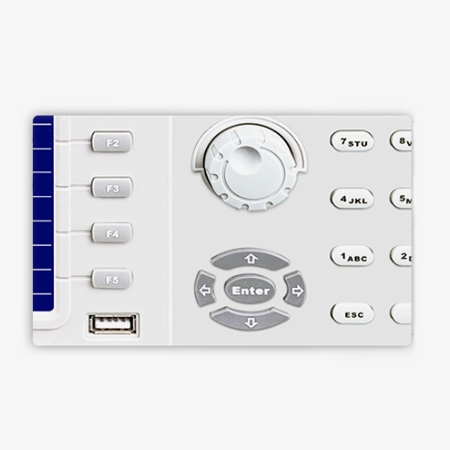

Supports Numeric Keypad Input and Features a User-Friendly Interface
- Multi-Terminal Output Interface Design: The hipot tester is equipped with clearly labeled multi-terminal outputs, including Drive Hi / Drive Lo and Sense Hi / Sense Lo, enabling precise and flexible high-voltage testing connections.
- 4-Wire (Kelvin) Measurement Support: With dedicated sense terminals, the system supports 4-wire (Kelvin) measurement, effectively reducing lead resistance influence and ensuring high-accuracy test results, especially for low-resistance measurements.
- Color-Coded Terminals for Easy Identification: Each terminal is designed with distinct color coding (red, black, yellow, green), allowing operators to quickly identify connections such as Live (L) and Neutral (N), minimizing wiring errors and improving efficiency.
- Versatile Testing Configuration: This interface layout supports multiple test modes, including withstand voltage, grounding resistance, and leakage current testing, making the tester suitable for a wide range of electrical safety applications.

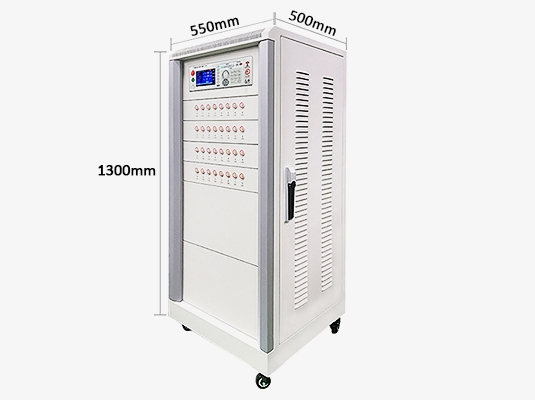

Dimension
Application
SISCO hipot tester is used to test the insulation strength of electrical devices and systems by applying a high voltage to ensure they can withstand electrical stress without breakdown. It is commonly applied in industries such as electronics, automotive, medical devices, telecommunications, power distribution, renewable energy, industrial machinery, and construction to verify electrical safety, prevent failures, and ensure compliance with safety standards.
Industrial
Renewable Energy
Construction
Automobile
Â

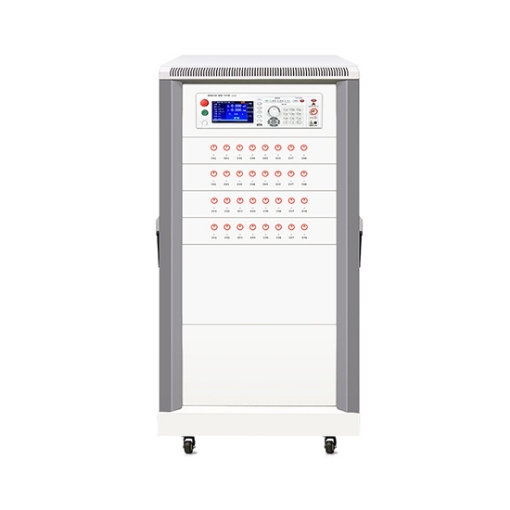

| Model | SISCO-HT-RK9920-32C |
| Scan Channels | 32 Channels |
| Withstand Voltage Test (Hipot) | |
| AC Output Voltage | 0.05 kV ~ 5.00 kV ±2% |
| DC Output Voltage | 0.05 kV ~ 6.00 kV ±2% |
| AC Test Current Range | 0 ~ 20 mA ± (2% reading + 5 digits) |
| DC Test Current Range | 0 ~ 10 mA ± (2% reading + 5 digits) |
| Discharge Function | Automatic discharge after test (DCW) |
| Insulation Resistance Test | |
| Output Voltage (DC) | 0.05 kV ~ 5.0 kV ± (1% + 5 digits) |
| Resistance Range | 0.2 MΩ ~ 100.0 GΩ |
| Accuracy (≥ 500V) | 0.10 MΩ ~ 1.0 GΩ ±5%; 1.0 GΩ ~ 50.0 GΩ ±10%; 50.0 GΩ ~ 100.0 GΩ ±15% |
| Accuracy (< 500V) | 0.10 MΩ ~ 1.0 GΩ ±10%; 1.0 GΩ ~ 10.0 GΩ (No accuracy requirement) |
| Discharge Function | Automatic discharge after test |
| Leakage Current Measurement | |
| AC Measurement Range | 1 ~ 20 mA |
| DC Measurement Range | 1 ~ 20 mA |
| Timing Parameters | |
| Voltage Rise Time | 0.1 ~ 999.9 s |
| Test Time (AC/DC) | 0.2 ~ 999.9 s |
| Voltage Fall Time | 0.1 ~ 999.9 s |
| IR Wait Time | 0.2 ~ 999.9 s |
| Time Accuracy | ±1% + 0.1 s |
| Interface & Environment | |
| Interfaces | HANDLER, RS232C, RS485, USB, U Disk |
| Operating Temperature | 10°C ~ 40°C, ≤ 90% RH |
| Power | |
| Power Supply | 90 ~ 121V AC (60Hz) or 198 ~ 242V AC (50Hz) |
| Power Consumption | < 400 VA |
| Physical | |
| Dimensions | 500 * 1300 * 550 mm |
| Weight | 78.5 kg |
Q1: What is hipot tester?
A1: AC-DC test transformer, using advanced production equipment, using the coil winding epoxy vacuum casting and CD-type core of the new technology, and similar products compared to oil-immersed transformers, significantly reduce the weight, reduce the volume, in quality to improve the insulation strength and resistance to moisture degree, and effectively weaken the leakage of magnetic and greatly enhance the transformer to withstand the impact of test short-circuit current capacity.
Q2: Is high voltage testing destructive?
A2: Hipot (or high potential testing) is a non-destructive test that goes by many names: overvoltage testing, dielectric breakdown testing, dielectric withstand testing, or insulation resistance testing. Some of all of these tests are designed to make sure that the insulation materials used in your motor are doing their job.
Q3: What is the difference between the hipot and the Megger?
A3: Both instruments apply a relatively high voltage to the insulator and absorb leakage current through the insulator commensurate with its insulation characteristics and condition. However, the megohmmeter gives the operator a measured value, while the hipot acts.
Tips: What is an AC/DC hipot & insulation tester?
An AC/DC hipot & insulation tester is a multifunctional safety testing instrument that combines withstand voltage (hipot) testing and insulation resistance (IR) measurement in a single device. During a hipot test, the instrument applies a high AC or DC voltage between conductive parts and ground to verify that the insulation can withstand electrical stress without breakdown or excessive leakage current. In insulation resistance mode, it applies a DC voltage and measures the resistance of the insulation to evaluate its quality and integrity.
By integrating both tests, this type of tester provides a more complete assessment of electrical safety and insulation performance. It is widely used in production lines, laboratories, and quality control processes for products such as home appliances, power supplies, cables, automotive electronics, and medical devices. Using an AC/DC hipot & insulation tester helps manufacturers comply with international safety standards and ensures products are reliable and safe for end users.
Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.
